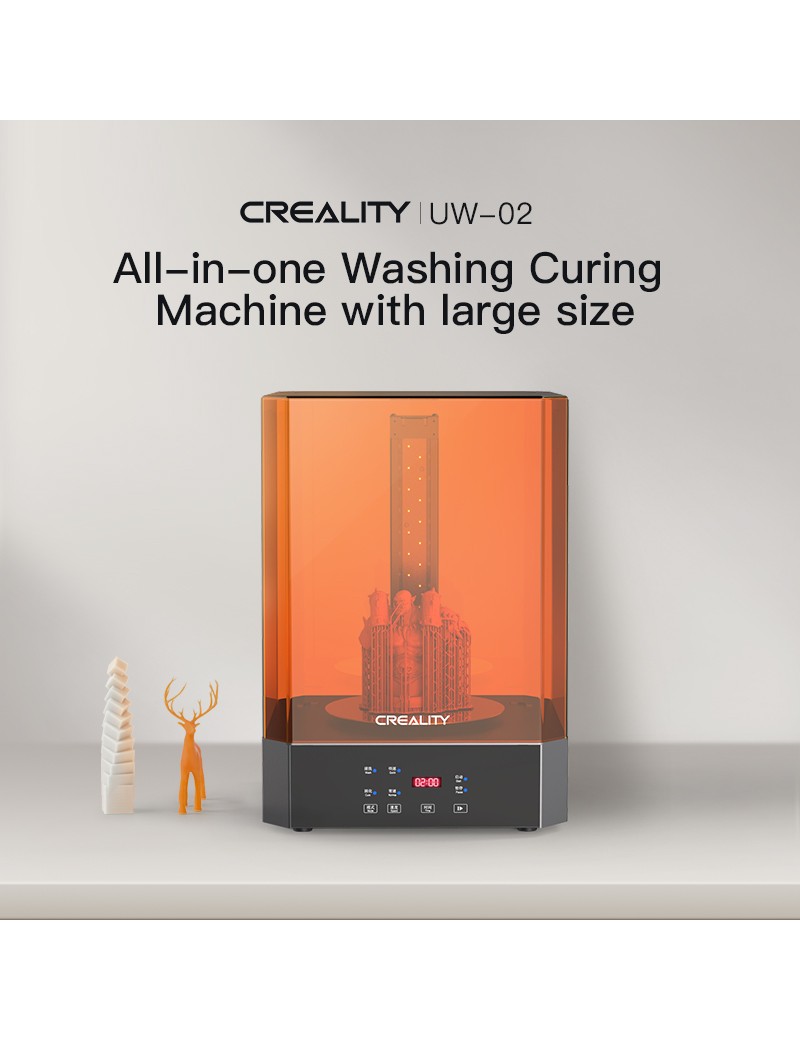

UW Series Washing and Curing Machine: UW-02(10.1-inch)

All-in-one Washing Curing Machine. Large space for washing and curing. Integrated automatic cleaning of your 3d printed model. Curing 3d printed parts by controlling light, speed, and time accurately. Dimension of washing basket cleaning: 240 x160x200mm.

10.1-inch Washing/Curing Machine:

Large space for washing and curing, to meet the processing demand of large size models.

360° all-around curing:

360° specular reflections curing rotating platform with 385nm and 405nm dual-band LED beads, all-round curing without dead band.

Upgrade the lens UV lamp beads:

Dual-band UV lamp beads strip, increase entire lens strip to make the UV light source irradiation is the more uniform and concentrated and more complete modelcuring.

Speed/Time settings supported.

Product Parameter:

• Fully-enclosed machine size: 325*295*584mm
• Washing size: 240*160*200mm
• Maximum model weight: 2.5kg
• SLA wavelength: 385nm & 405nm
• Box type: Fully-enclosed
