MKR Proto Large Shield
Write your review
14,64 €
Tasse incluse
Overview

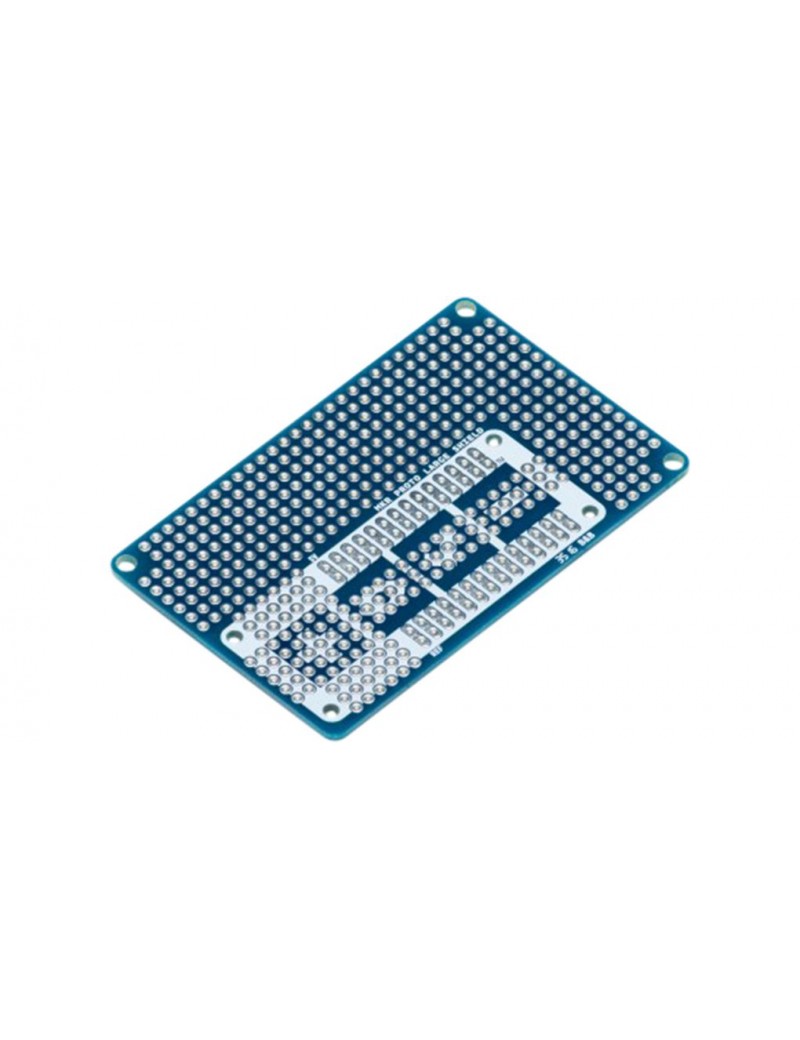

The MKR Proto Large Shield fits onto your MKR board using its provided female/male headers and enables you to fix it wherever you want with the mounting holes. This shield features a larger prototyping area with more than 300 solder points and makes connecting components to your board super simple, thanks to the silk that indicates the MKR board pins location
Tech specs
| DIGITAL I/O PINS | 21 |
| PWM DIGITAL I/O PINS | depending on the board |
| ANALOG INPUT PINS | 7 |
| ANALOG OUTPUT PINS | depending on the board |
| DC CURRENT PER I/O PIN | depending on the board |
| DC CURRENT FOR 3.3V PIN | depending on the board |
| DC CURRENT FOR 5V PIN | depending on the board |
| LENGHT | 80 mm |
| WIDTH | 50 mm |
| WEIGHT | 19 gr |
Documentation
OSH: Schematics
The MKR Large Proto Shield is open-source hardware! You can build your own board using the following files:
EAGLE FILES IN .ZIP SCHEMATICS IN .PDF
