T16-S Mini Actuator LS

120,78 €
Tasse incluse

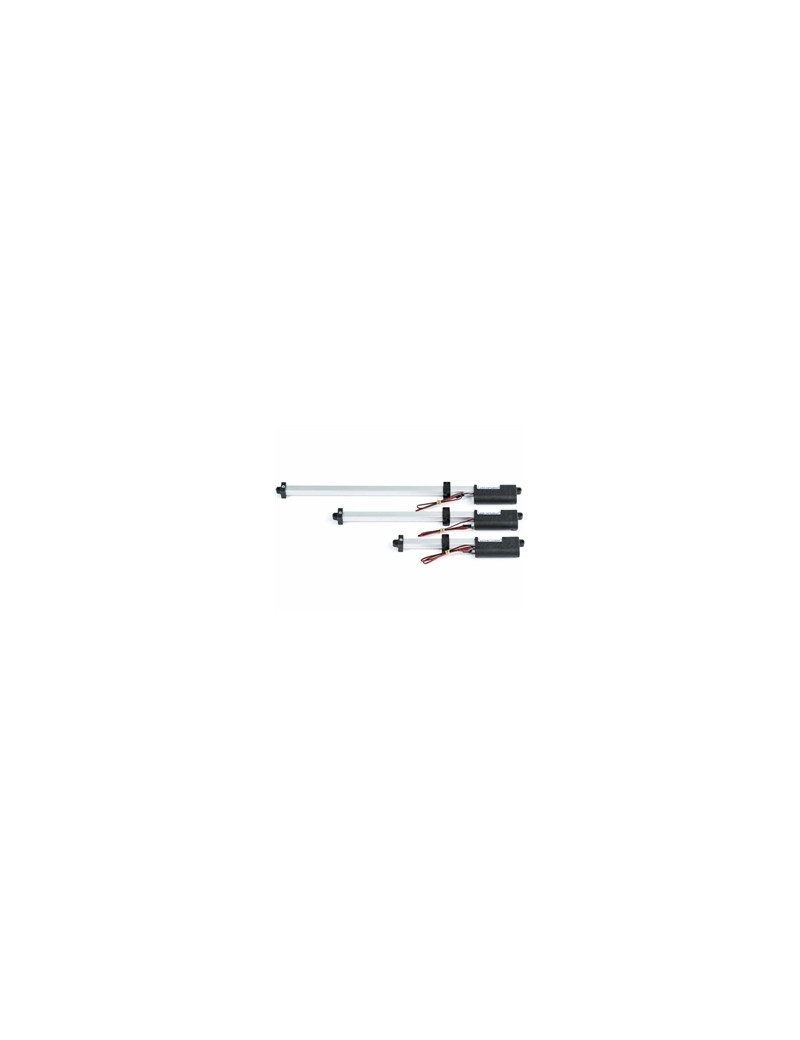

T16-S Mini Track Actuator with Limit Switches 12V
Gear Ratio
Stroke
Quantità
Add to Compare
Add to Wishlist

T16-S Track Actuator With Limit Switches 12V


Actuonix's unique line of Micro Linear Track Actuators enables a new generation of motion enabled product designs, with capabilities that have never before been combined in a device of this size. These linear track actuators are a superior alternative to designing your own push/pull mechanisms.

Built on the same platform as the proven P16, the T16-S tracktuators are complete, self-contained linear motion devices with end of stroke limit switches for simple two position automation. The track design makes the T16 significantly shorter than the same stroke length P16, since instead of an extending shaft, a sliding mount is provided. The sliding mount also significantly increases the maximum side load specification.
As with our other "S" series units, this T16-S is a simple 2-wire actuator that can be operated by reversing polarity on it's two leads. The "S" series has end of stroke limit switches to that will turn off the unit if it runs into its end stop. These actuators can be wired to work with a latching or momentary DPDT switch, relay or for RC a you can use a brushed reversible DC motor controller. The T16 "S" series is available in 12v only.

Premium components in this model include: large sealed stainless steel bearings, planetary gearbox, stainless steel lead screw, and glass re-enforced nylon housing.


"S" series actuators can not be used with our LAC board.


The P16-S line includes 9 unique models featuring:
  • Optional stroke lengths of 100mm, 200mm or 300mm
  • 3 gearing options for maximum forces between 50N (11lbs) and 300N (67lbs) and speeds between 4.8mm/s and 46mm/s
  • Only available as a 12V unit

For questions about our linear track actuators or any of our other products, feel free to call our sales department from 7:30am and 3:00pm Monday through Friday and we'll be happy to help you choose the right actuator for your project.

The T16-S comes with a hardware kit to make mounting simple.

Note: All pricing is in US dollars.
Features

  • Compact Side by Side Design
    Longer available strokes (300mm)
    Higher forces
    Faster speeds

miniature track actuator


T16 Series 3D Files (IGES)
T16 Series 3D Files (STP)

AC-T16-S
