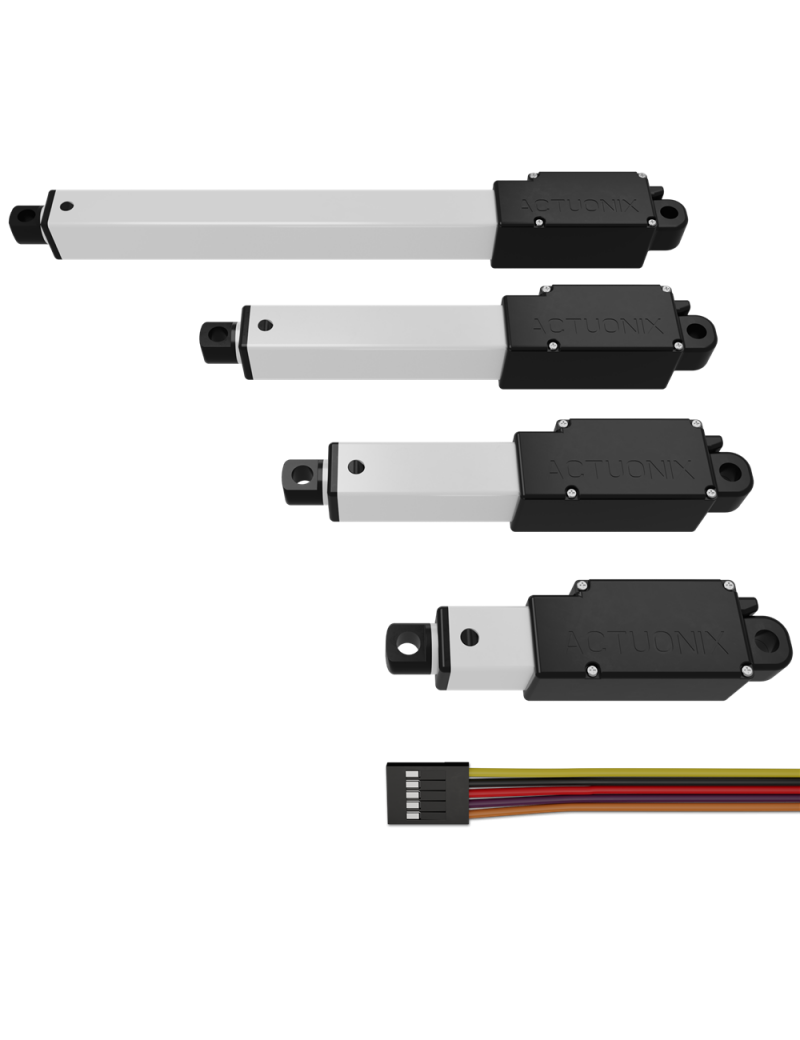

L12-P Linear Actuator with Position Feedback


The L12-P line of linear actuators feature an internal potentiometer for position feedback. They do not have an internal controller or end-limit switches.

You can use your L12-P as a Linear Servo by using it with our LAC (Linear Actuator Control) board. This combination has all the same functionality as the L12-I plus USB support, speed control, sensitivity control, position control, and adjustable end limits.

Our position feedback actuators are ideal for projects that require a custom stroke length or a lower speed than our stock units. Using our LAC board saves you designing a custom controller or a custom actuator. If you package the L12-P with an LAC board, the board is half price.

The L12-P line includes 24 unique models featuring:
  • Stroke lengths of 10mm, 30mm, 50mm and 100mm
  • 3 gearing options for maximum forces between 22N (5lbs) and 80N (18lbs) and speeds between 6.5mm/s and 25mm/s
  • Available with optional 6V or 12V input

If you have any questions about our products please feel free to contact our customer service department between 7:30am and 3:00pm PST.

All of our Linear actuators come with a hardware kit to make mounting simple.

NOTE: Pricing is in US dollars

Features
    • Compact design
    • 4 available stroke lengths
    • 3 available gearing options
    • 6v or 12v units
    • Analog positional feedback

feedback actuator

L12 Series 3D Models (IGES) 10, 30, 50 and 100mm: L12 3D Models (IGES)
L12 Series 3D Models (STP): L12 3D Models (STP)
linear actuator with feedback

Click here to see our current L12-P Inventory
