Overview

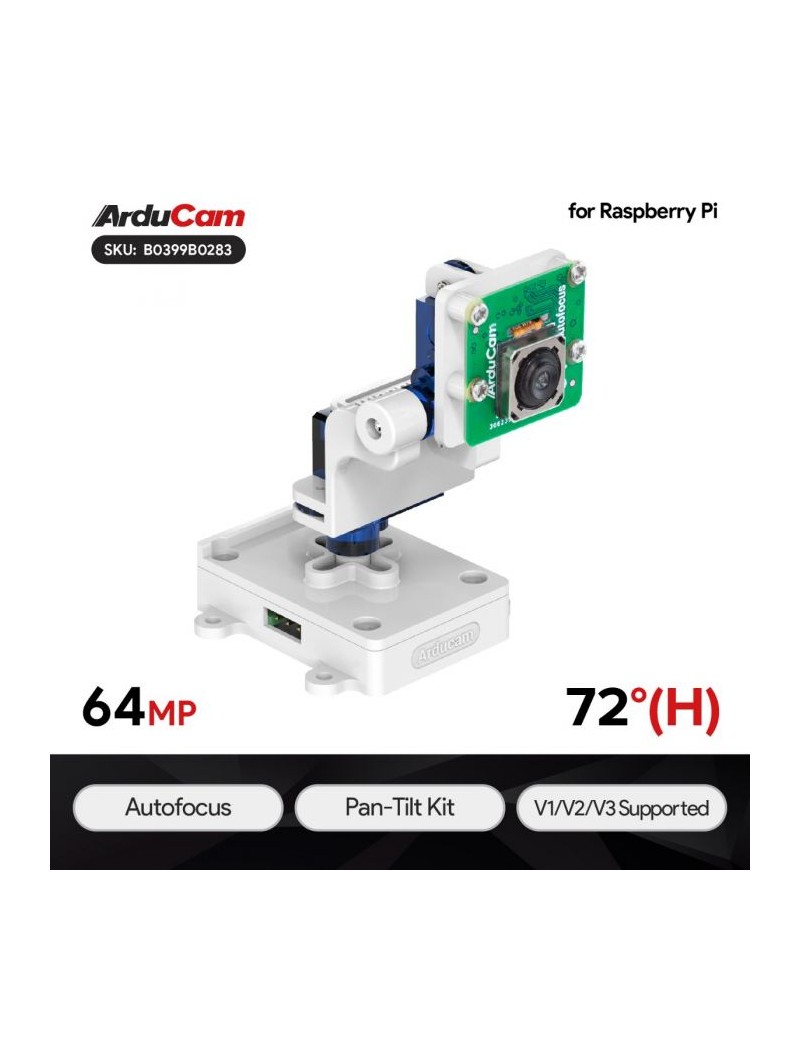

The most powerful pan-tilt camera kit ever made for Raspberry Pi. With our 64MP-AF camera, a handy PT system, and the help of OpenCV, you can build a mini face/movement tracking solution like this:

The camera itself works with most Pi models, older ones like Pi 2 or Pi 0 may suffer from performance drops. And the PT kit is also compatible with both the official V1/V2/HQ cameras and Arducam OV5647/IMX219/IMX477 series.

More about PTZ camera solutions >

Specification

Specification - PAN-TILT KIT

Digital Servo

• Torque: 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V
• Operating Speed: 0.13sec/60° at 3.6V, 0.09sec/60° at 4.8V
• Operating Voltage: 3.6v～4.8v
• Operating Current: ＜350mA
• Dead Band: 3 usec
• Dimension: 20mm x 8.75mm x 22mm

Customized Control Board

• PWM resolution: 12-bit
• Communication interface: I2C
• Operating voltage: 3V-5V
• Dimension: 38mm x 28mm

Documentation

• 64MP-AF Product Brief
• 64MP-AF Camera Getting Started Guide
• 64MP Camera and Pan-Tilt Kit Manual
• Github – Servo Driver
• How to use arducam 64MP camera on Raspberry Pi

Note

To use the camera on Pi Zero and 2 W, you need this.

The arducam 64MP cameras can only get maximum resolution and video streaming on Pi4 and CM4 platforms. The resolution and video streaming of the camera will be limited on other Raspberry Pi platforms.
