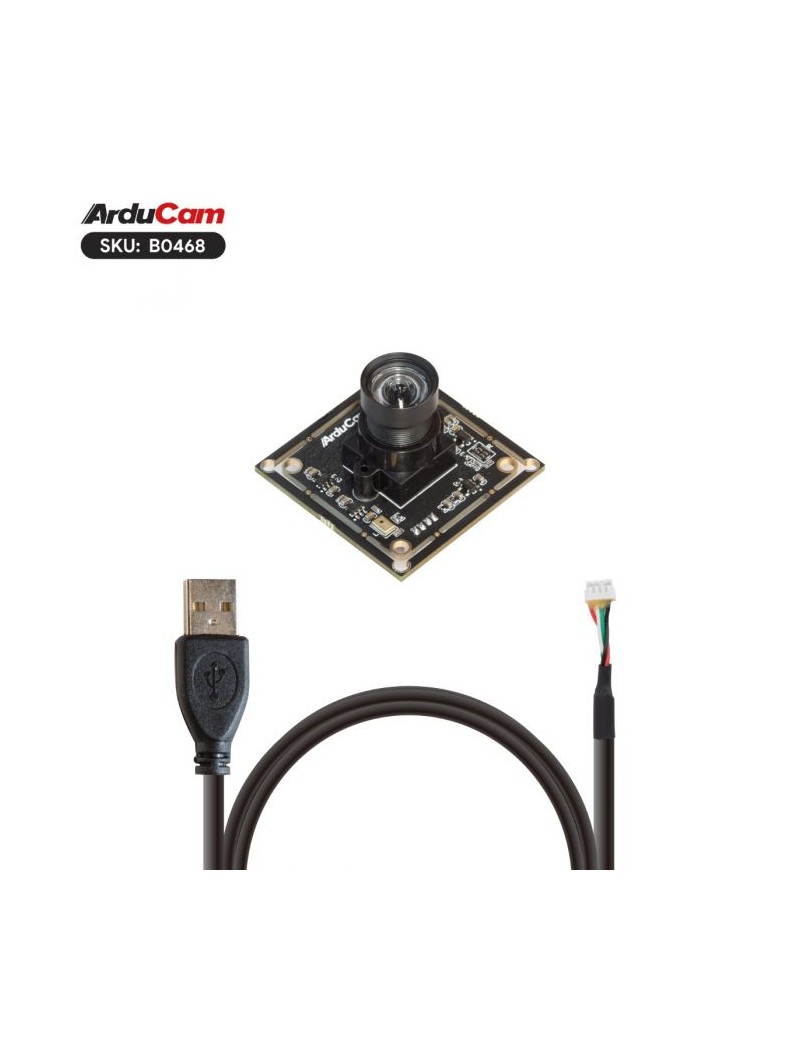

1080P Low Light Low Distortion USB Camera Module with Microphone
Write your review
61,00 €
Tasse incluse
Overview
This IMX323 USB camera boasts a maximum resolution of 2 megapixels utilizing the advanced IMX323 image sensor. With a maximum still resolution of 1920*1080, users can capture detailed images. Moreover, the camera's frame rate can reach up to 30fps@1080P, ensuring smooth and fluid video capture.
With its low distortion M12 Lens offering a field of view 83° DFoV, this camera captures stunningly accurate images.
Arducam USB camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows, Linux, Mac OS, and Android, no additional drivers are needed, simplifying the setup process.
Applications
- Video conference
- Home video surveillance system
- Dash cam
- Monitoring 3D printer
- Robot and machine vision
Features
- HD Resolution and Low Light: Based on 2MP IMX323 sensor, minimum illumination 0.01 Lux@F1.2
- Low Distortion: with 83°(D) Low-Distortion (<1%) M12 Lens
- Capture Video with Audio: H.264/MJPG: 30fps@1080p; YUYV: 30fps@640*480
- Plug&Play: UVC-compliant, no extra drivers needed
- Applications: Home surveillance, day-night vision, dashcam, machine vision
Specifications
| Sensor Features | |
| SENSOR | IMX323 |
|---|---|
| Still Resolution | 2 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/2.9" |
| Output Format | MJPG/YUYV/H.264 |
| Pixel Size | 2.8μmx 2.8μm |
| Sensor Active Area | 1936(H)*1097(V) |
| Frame Rate | MJPG: 1920*1080@30fps, 1280*720@30fps, 800*600, 640*360, 640*480, 352*288,320*240@30fps YUYV: 15fps@800*600, 30fps@320*240/352*288/640*360/640*480 H.264: 30fps@ 1920*1080, 1280*720, 800*600, 640*360, 640*480, 352*288,320*240 |
| Lens | |
| Focus Type | Manual Focus |
| FOV | 83°(D)×71°(H)×55°(V) |
| Lens Mount | M12 Mount |
| F.NO | F2.8 |
| E.F.L | 4mm |
| Distortion | <1% |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| USB Interface | |
| Interface | USB 2.0 device |
| Connector | B4B-ZR |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 0°C to 70°C |
| Power Requirements | Max: 1.25W |
| Camera Board Size | 38*38 mm (Hole Pitch: 34mmx34mm, 28mmx28mm) |
| Functionality and Compatibility | |
| Audio | Single Microphone |
| Supported OS | Windows, Linux, Android and MAC OS |
| Sample Application | AMCap |
| UVC Controls | Brightness, Contrast, Hue, Sharpness, Saturation, Gama, Gain, White Balance(Manual and Auto), Backlight contrast, Exposure(Manual and Auto) |
Package Including
- 1 x 1080P USB Camera Module with Lens
- 1 x 1m USB 2.0 Cable
- 1 x Quick Guide Start
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
Documentation
AC-B0468
