Arducam 8MP Pan Tilt Zoom PTZ Camera for Raspberry Pi 4/3B+/3 and NVIDIA® Jetson Nano

124,44 €
Tasse incluse

Arducam 8MP Pan Tilt Zoom PTZ Camera for Raspberry Pi 4/3B+/3 and NVIDIA® Jetson Nano

Quantità
Add to Compare
Add to Wishlist

Overview

PTZ is an abbreviation for pan, tilt, and zoom and reflects the movement options of the camera, and a pan–tilt–zoom camera (PTZ camera) is a camera that is capable of remote directional and zoom control. A PTZ camera is not a still camera. Instead, it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera if a PTZ camera can handle the job. With its moveable lens, you will also be able to zoom the camera to see a specific area that you are interested in. To conclude, it’s “do more with less.”

Currently, NVIDIA official has released the NVIDIA Jetson Orin series developer board. Based on it, we have also adapted the camera into NVIDIA Jetson Orin kernel.

★KERNEL CAMERA DRIVER USED

This camera relies on kernel drivers to work – one kernel version, one camera driver. Note on supported Nvidia Jetson Boards and Jetpack versions, please refer to Supported JetPack Version for Different NVIDIA Jetson Platforms to ensure compatibility.

★ SUPPORTED PLATFORM DISCLAIMER

This camera is specifically designed for the official NVIDIA® Jetson™ Developer Kit by default and does not support third-party carrier boards.

Applications

  • IoT cameras
  • Robot cameras
  • Wildlife cameras
  • Cellular phones,PDAs,Toys
  • Other security and surveillance projects



Specifications

Image Sensor Sony IMX219
Optical Size 1/4”
Active Pixels 8MP 3280(H)x2464(V)
Frame Rates 1080p47, 1640 × 1232p41 and 640 × 480p206
NVIDIA Jetson Nano/Xavier NX/Orin NX/Orin Nano/AGX Orin:
3280x2464@21fps, 3280x1848@28fps, 1920x1080@30fps, 1640x1232@30fps, 1280x720@60fps
Shutter Type Rolling Shutter
Focal Length 3.2-11.1mm±5%
F.NO W:1.6-T:3.3±5%
Focus Type Front group: focus Back group: Zoom
IR Sensitivity Optional with additional Motorized IR-Cut filter
M.O.D 0.8M
Dimension  36mm x 36mm
Pan and Tilt Range 0-180°
Zoom Range (Wide => Tele) 2317 steps 0.00396mm/step
Focus Range(Near => Far) 3009 steps 0.0047mm/step

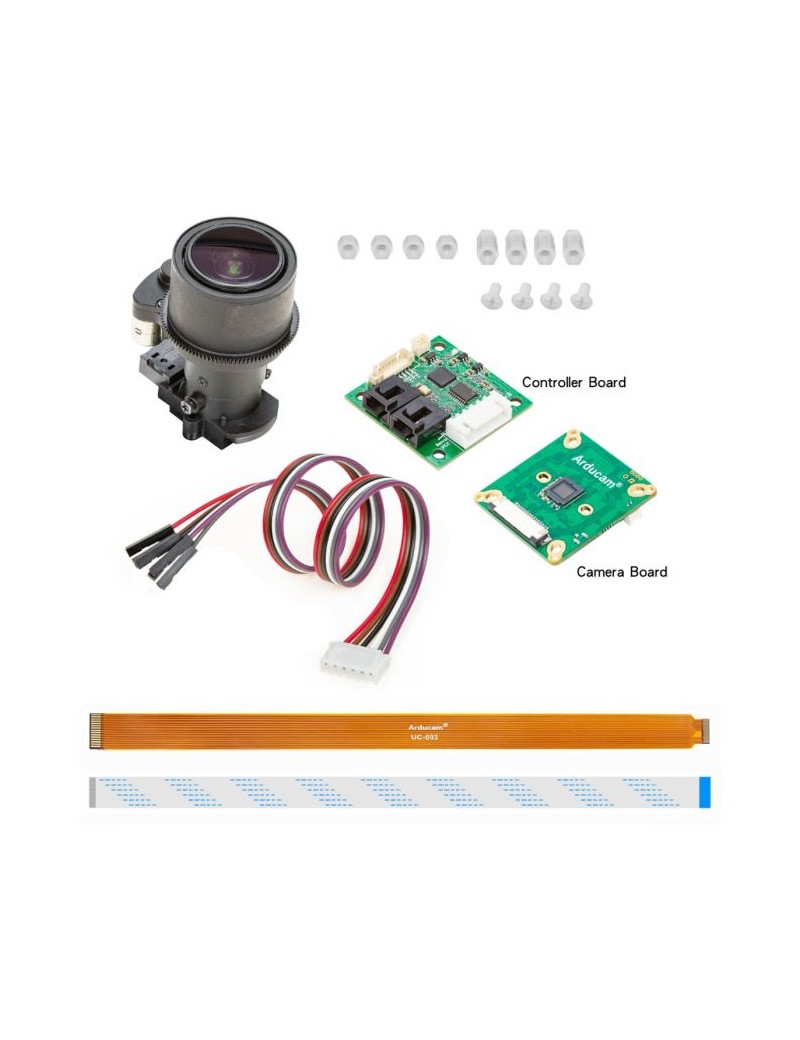

Package Including

  • 1 x Arducam PTZ Pan Tilt Zoom Lens, assembled with a 8MP IR-CUT switchable camera board
  • 1 x Controller Board
  • 1 x 15pin FPC Cable (11.8 in/30 cm)
  • 1 x 15-22pin FPC Cable (11.8 in/30 cm)
  • 1 x XH2.54 Jumper wire with 6Pin Famale Connector (11.8 in/30 cm)



Note

  • The package does not include any Raspberry Pi motherboard.
  • The drop-in replacement module does not include FPC cables and any camera boards. And it requires the use of the Raspberry Pi V2 camera board to function properly.
  • The lenses of all camera modules are not interchangeable. Please contact sales in advance if you need to replace them.
NOTE ON SUPPORTED RASPBERRY PI BOARDS AND OS
Platform Bookworm(rpicam) Bullseye(libcamera) Buster(raspistill)
Raspberry Pi 5 √
Raspberry Pi 4B / 3B+ / 3A+ / Zero / Zero 2 W √ √
Raspberry Pi CM3 / CM3+ / CM4
(extra carrier board required)		 √ √ √

Documentation



Video



Blog

AC-B01678MP
