Overview

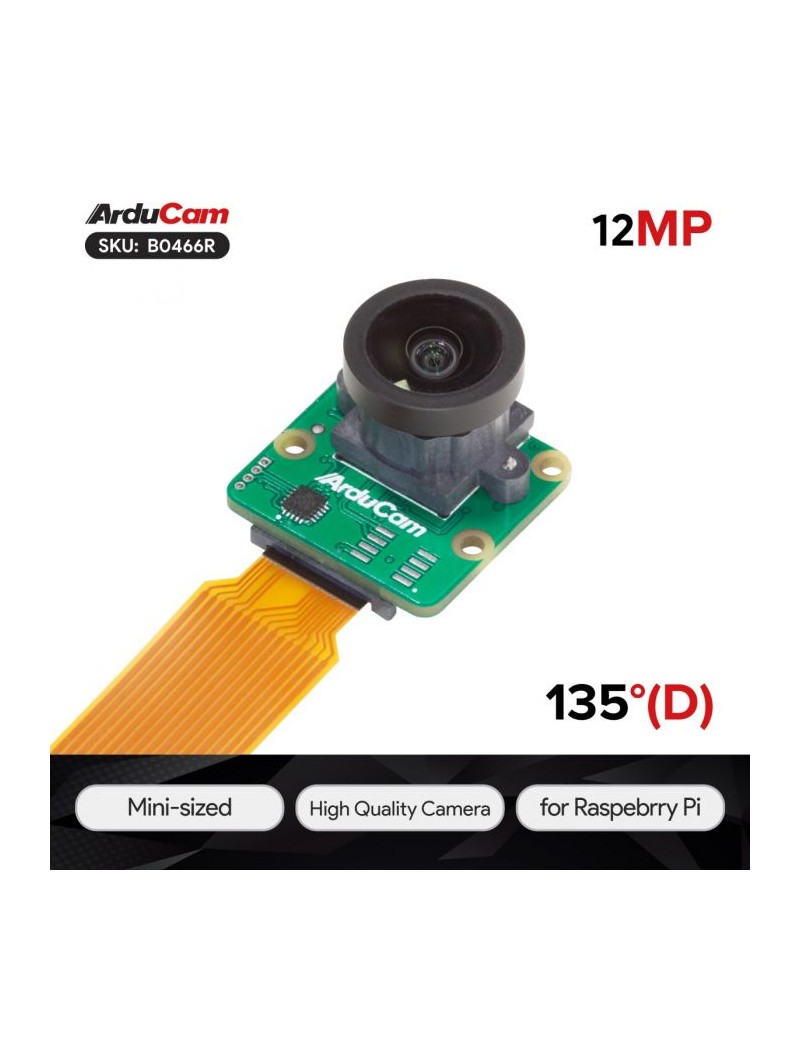

Experience exceptional image quality with the Arducam mini-sized Camera Module for Raspberry Pi. This camera module supports various video modes, including 2028 × 1080p50, 2028 × 1520p40, and 1332 × 990p120. The rolling shutter and color filter array enhance performance, delivering accurate and vibrant colors.

With manual focus and a focal length of 2.87mm, achieve precise focusing for your shots. The M12*P0.5mm lens offers a wide field of view (DFOV / HFOV / VFOV: 135°/120°/105°), capturing expansive scenes.

Despite its compact 25 × 24mm board size, the Raspberry Pi MIPI Camera packs a powerful imaging punch. Elevate your photography and videography capabilities with this versatile camera module, perfect for Raspberry Pi projects and capturing the world around you.

Applications

• Astrophotography
• Surveillance cameras
• FA cameras
• Industrial/Agricultural cameras
• Autonomous mobile robots, UGV/UAV, ADAS, etc.

Features

• High Quality Camera: Capture sharp images with a 1/2.3-inch 12MP CMOS, ensuring exceptional image quality.
• More than HD: Max still resolution: 4056 x 3040, frame rates 1080p30, 720p60 and 640 × 480p60/90. Enjoy stunning visuals with a maximum static resolution of 4056 x 3040 and various frame rates for smooth video recording.
• Mini size: Compact and convenient, this camera is the same size as Raspberry Pi V2, making it easy to integrate into your projects.
• Wide angle lens: Capture a wider field of view with the interchangeable M12 lens and a 135°(D) FOV, delivering UHD images with an immersive perspective.
• Broad Pi compatibility: Compatible with a wide range of Raspberry Pi models, including Raspberry Pi 1, 2, 3A/B, 4A/B, Zero, and Zero 2W, ensuring flexibility and versatility in your projects. No additional driver installation is required, and it supports libcamera commands.

Specifications

Lens

Electrical and Mechanical

Package Including

• 1 x 12MP 477M Camera Module
• 1 x 15-22pin FPC Cable
• 1 x 22-22pin FPC Cable
• 1 x Paper Quick Start Guide

Notes

• The package contains small contents, please keep it away from children to avoid accidental ingestion
• After receiving the package, please confirm whether the contents of the package are consistent with the description
• No Raspberry Pi board is included in the package
• For Arducam 477M Camera, you need to refer to the following contents to access the camera: Quick Start Guide for 477M Camera

Documentation

• Quick Start Guide for Raspberry Pi Native Camera
