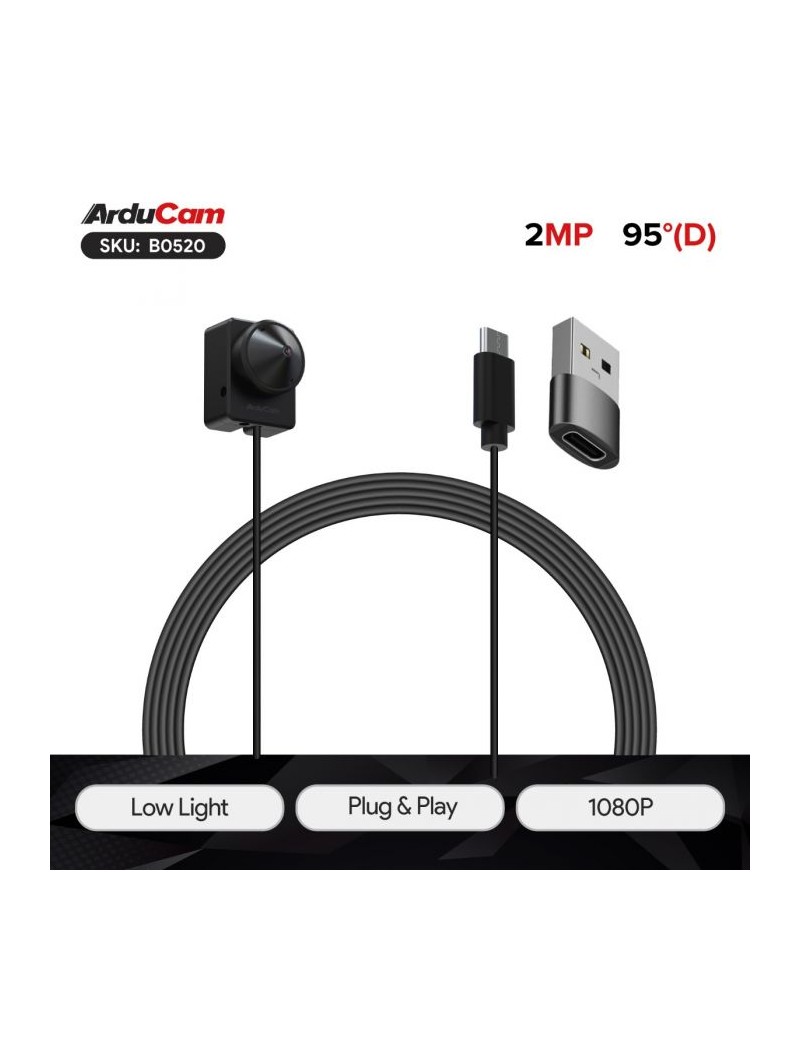

Arducam 2MP Low Light USB Camera Module with M12 Lens

67,10 €
Tasse incluse
Quantità
Add to Compare
Add to Wishlist

Overview

The Arducam Tiny USB Camera features a high-quality Sony 1/2.8" CMOS sensor with an 80dB wide dynamic range. Its advanced low-light performance, with 0.01 lux sensitivity, ensures detailed HD images in minimal lighting.
This compact camera measures just 19.5 x 15 x 17.3 mm and includes a pinhole lens with a 95° diagonal angle. It boasts the smallest camera board and M12 lens, housed in a CNC metal heat dissipation casing.
TThe camera is UVC drive-free, supporting Windows XP/7/8/10, Linux, and Mac OS. Just plug it into your device via USB Type-C or the included Type-C to USB-A adapter—no additional drivers needed.

Applications

  • Home Security Surveillance
  • Video Surveillance
  • 3D Scanning and Metrology
  • Live Streaming
  • Nanny Camera

Features

  • High-Quality Imaging: Equipped with a Sony 1/2.8" color CMOS sensor with an 80dB wide dynamic range, and a conical lens providing a 95° diagonal angle for fluent 1080P30 video recording.
  • Enhanced Low Light Performance: Designed to excel in low light conditions with a sensitivity of 0.01 lux, capturing detailed HD images even in minimal lighting.
  • Compact and Portable: Measuring just 19.5 x 15 x 17.3 mm, this lightweight camera is perfect for use with smartphones, tablets, and laptops, making it easy to carry and connect on the go.
  • Miniature Design: Features the smallest camera board and M12 lens in a unique CNC metal heat dissipation housing. Includes a Type-C connector and a Type-C to USB-A port adapter, expanding your connectivity options.
  • Plug & Play: UVC drive-free compatibility supports Windows XP/7/8/10, Linux, and Mac OS. Easily connect to your PC, laptop, or Raspberry Pi via USB with no additional drivers needed.

Specifications

Image Sensor
Still Resolution 2 Megapixels
Color Filter Type Color
Shutter Type Rolling
Optical Size 1/2.8"
Output Format MJPG/YUY2/H.264
Pixel Size 2.9μm x 2.9μm
Sensor Active Area 1937(H) x 1097(V)
Frame Rate (USB 2.0) MJPG: 30fps@1920×1080, 1280×720, 800×600, 640×480, 320×240; YUY2: 30fps@640×480, 320×240; 10fps@1280×720,800×600; 5fps@1920×1080; H.264: 30fps@1920×1080, 1280×720, 800×600, 640×480, 320×240;
Lens
Focus Type Manual Focus
FOV 95°(D) ×82° (H)×66°(V)
Lens Mount M12 Lens
F.NO F2.5
E.F.L 3.7mm
IR Sensitivity Integral IR-cut Filter, visible light only
Default Focus Range 1m-∞
USB Interface
Interface USB 2.0 Device
Connector USB Type-C
UVC Compliant No additional drivers required
Electrical and Mechanical
Operating Voltage 5 V +/- 5%
Operating Temp. 32°F-158°F (0°C to 70°C)
Power Requirements Max: 1.1W
Overall Size 19.5×15×17.3 mm
Functionality and Compatibility
Supported OS Windows, Linux, Android and MAC OS
Recommend Sample Application Amcap for Windows
UVC Controls Brightness, Hue, Contrast, Saturation, Sharpness, Gamma, White Balance (Manual/Auto), Gain, Backlight Comp, Exposure (Manual/Auto)

Package Including

  • 1 x Arducam 2MP Camera Module with USB Type-C Cable (1m)
  • 1 x USB Type-C to USB A adapter

Notes

  • The package contains small contents, please keep it away from children to avoid accidental ingestion
  • After receiving the package, please confirm whether the contents of the package are consistent with the description

Documentation

AC-B0520
