Description

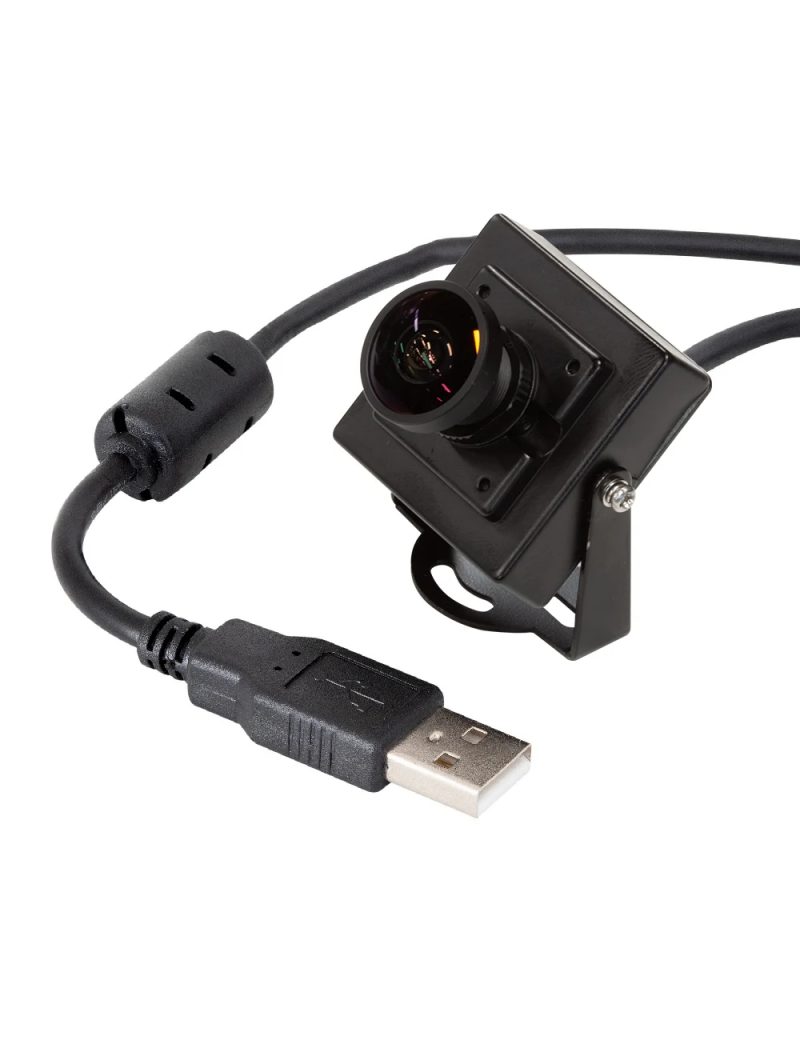

Camera with USB interface equipped with CMOS IMX291 1/2.8” sensor with a resolution of 2 MPx. It has an integrated IR filter and a "Fisheye" lens with a field of view of 175 °. The camera can take pictures with a resolution of 1945Hx1109V and record videos in 30fps @ 1920x1080. There is a microphone on the board that allows you to add an audio track to video files. It is powered from the USB port. The module works with native drivers (compatible with UVC) built into Windows, Linux, Mac and Android, making the installation of the camera easy and intuitive. It will be used for monitoring 3D printing and videoconferences.

Features

• Sensor: 1/2.8” CMOS IMX291
• Resolution: 2MP 1945Hx1109V
• Data format: MJPG / YUY2 / H.264
• Frame rate: H.264 30fps @ 1920 x 1080; MJPG 30fps @ 1920 x 1080; YUY2 30fps @ 640 x 360
• Field of View (FOV): 175° (H)
• Lens mount: M12
• Integrated IR filter, only visible light
• Automatic calibration of saturation, contrast, sharpness, white balance, exposure
• System Compatibility: Windows, Linux, Mac and Android with UVC
• Built-in microphone
• USB 5V power supply
• Working current: 300 mA
• Working temperature: -20 to 70°C
• Dimensions: 38 x 38 mm
• USB cable length: 1 m

Kit contains

• ArduCAM Fisheye Low Light USB Camera module
• USB 2.0 cable 1 m
