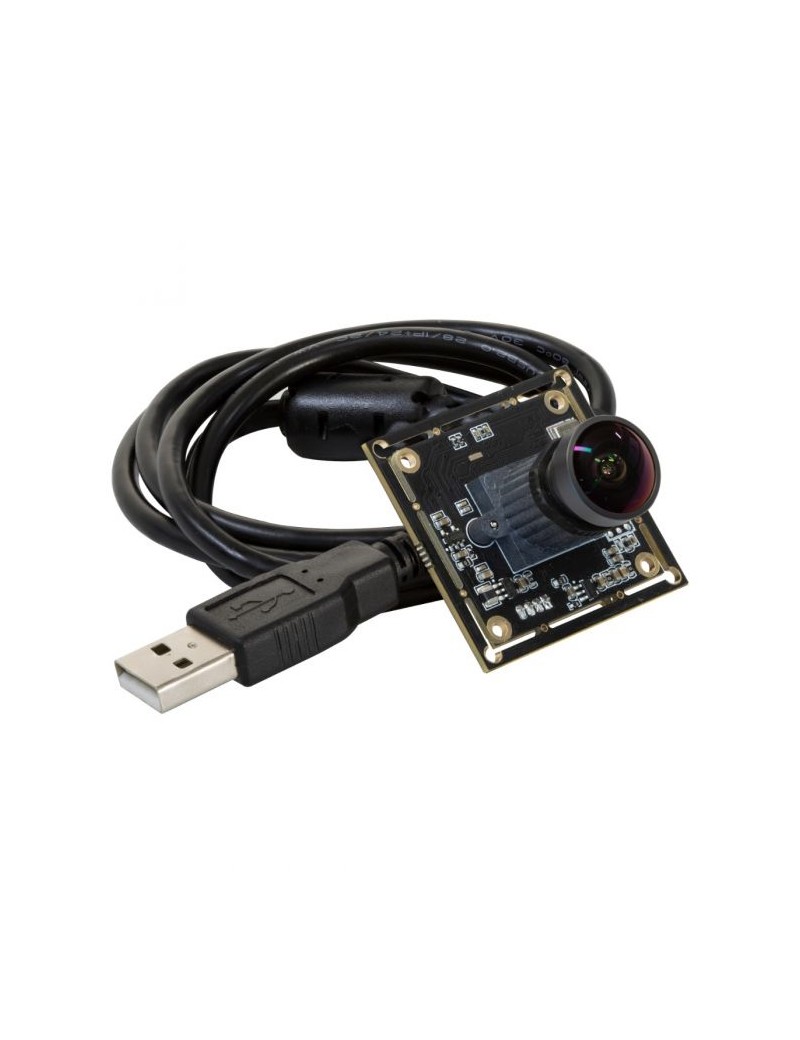

1080P Low Light Wide Angle USB Camera Module with Microphone

63,44 €
Tasse incluse
Quantità
Add to Compare
Add to Wishlist

Item Description:

The B0202 is a new member of the Arducam’s USB camera family. It’s a 2MP, UVC compliant, ultra wide angle, low light, based on the 1/2.8” Sony IMX291 image sensor high speed USB 2.0 camera.


Specifications

- Camera

  • Sensor: 1/2.8” IMX291
  • Resolution: 2MP 1945H x 1109V
  • Data Format: MJPG/YUY2/H.264
  • Frame Rate: MJPG: 30fps@640x320, 30fps@640x360, 30fps@800x600, 30fps@848x480, 30fps@960x720, 30fps@1024x576, 30fps@1280x720, 30fps@1920x1080   YUY2: 30fps@640x320, 30fps@640x360, 30fps@800x600, 30fps@848x480, 30fps@960x720, 30fps@1024x576, 30fps@1280x720, 30fps@1920x1080
  • Dynamic Range: 80dB
  • USB Connector: B4B-ZR(LF)(SN)

- Lens

  • Field of View (FOV)：D= 160°
  • Lens Mount: M12
  • Focusing Range: 6.56ft (2M) to infinity
  • IR Sensitivity: Integral IR filter, visible light only

Lens Option

SKU LN001 LN065 LN002 LN003 LN011 LN012 LN013 LN005 LN055 LN007
Model No: M2516ZH01 M2512ZH03 M2508ZH02 M2506ZH04 M2504ZH05S M25360H06S M27280M07S M27210H08 M27195H15 M25170H12
Optical Format 1/2.5'' 1/2.5'' 1/2.5'' 1/2.5'' 1/2.5'' 1/2.5'' 1/2.7'' 1/2.7'' 1/2.7'' 1/2.5''
EFL(mm) 16 12 8 6 4 3.6 2.8 2.1 1.95 1.7
BFL(mm) 7.1 6.5 8.1 7.3 3.24 2.75 2.6 6.3 3.8 4.7
Construction 6G+IR 6G+IR 6G+IR 6G+IR 2G2P+IR 2G2P+IR 2G2P+IR 6G+IR 6G+IR 6G+IR
F/NO 2.0 2.0 2.0 2.0 2.8 3.0 2.8 2.0 2.0 2.0
FOV (D/H/V) on 1/2.7‘’ Cam 25/22/12 31/27/15 48/42/25 64/57/34 80/72/45 90/82/52 103/95/63 136/130/101 158/155/136 180/180/180
FOV (D/H/V) on 1/2.8‘’ Cam 23/20/11 29/25/14 45/40/23 62/55/33 78/70/43 88/80/50 98/90/59 131/125/94 154/150/129 180/180/180
FOV (D/H/V) on 1/2.9‘’ Cam 20/18/10 26/23/13 43/38/22 60/53/32 76/68/42 86/78/49 93/85/55 127/120/89 149/145/121 180/180/180
IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter 650 IR filter
MOD 0.3m 0.3m 0.3m 0.3m 0.3m 0.2m 0.3m 0.3m 0.2m 0.2m
Size(mm) 14 x 16.2 14 x 16.7 14 x 16.9 14 x 17.4 14 x 18.7 14 x 16.3 14 x 15.6 14 x 15.2 17.5 x 19.9 20 x 18.7



NOTE1: The M12 Lens kit for the USB Camera module, please check LK005, 10 lenses are included.

NOTE2: For the sample order, please order the lens you need to replace separately and Contact us in advance for customization if you would like to replace the lenses on the Camera board.



- Functionality and Compatibility

  • Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
  • Audio: Single microphone (optional dual channel)
  • System Compatibility: Windows, Linux, Android, and Mac with UVC

- Power

  • Power Supply: USB powered 5V
  • Working Current: MAX 300mA

- Physical

  • Operating Temp.: -4°F~158°F (-20°C~+70°C).
  • Dimension: 38mmx38mm (Mount compatible with 34x34mm, 28x28mm)
  • Cable Length: 3.3ft (1M)

Documentation

User Guide

Datasheet

3D drawing

AC-B0202
