rducam 5MP IMX335 OIS USB 3.0 Camera Module
Write your review
396,50 €
Tasse incluse
- Plug and play
- Based on 5MP IMX335, maximum still resolution of 2592*1944

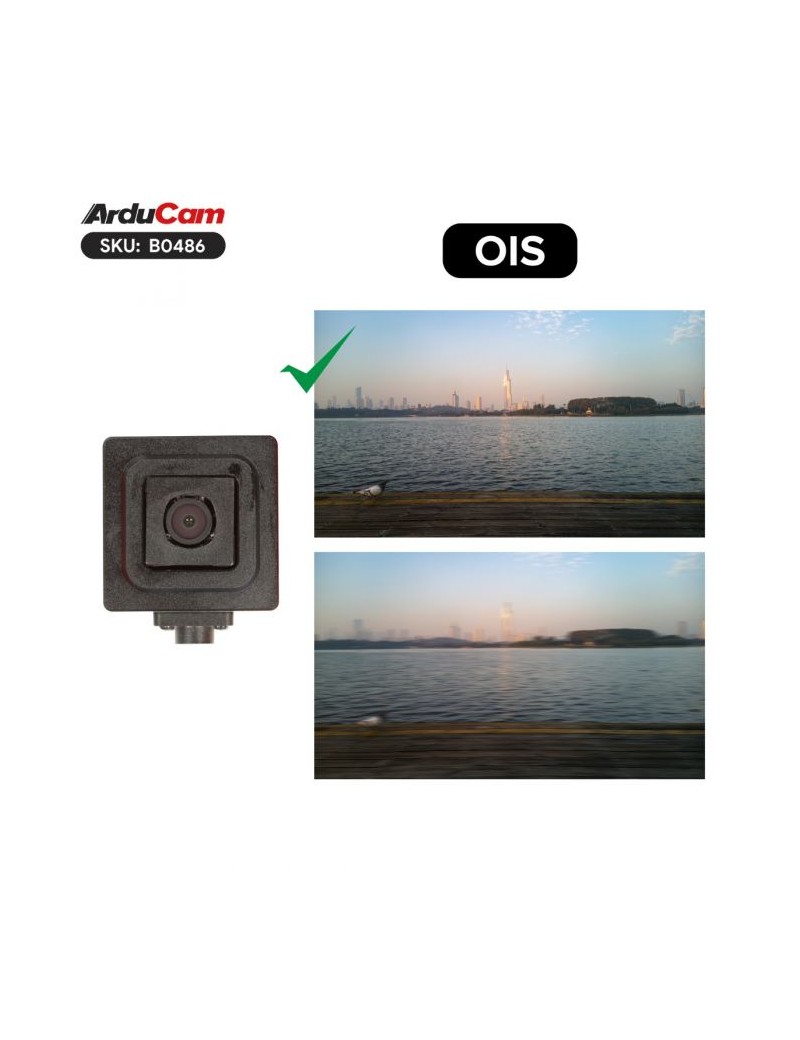

- Optical Image Stabilization USB Camera
- Proprietary on-board ISP advances image enhancement
- Programmable frame rates, reach up to 50fps@1080p
Overview
Embark on a new level of imaging precision with Arducam's latest addition to the USB 3.0 camera series—the IMX335 OIS USB3 camera. Engineered for excellence, it boasts Optical Image Stabilization (OIS) to deliver sharp, clear images, even in dynamic sports scenes.
This advanced camera is built on a Starvis 1/2.8" IMX335 CMOS sensor, providing a maximum still resolution of 2592x1944. The expansive 123° (D) wide-angle field of view ensures comprehensive scene capture, perfect for diverse photography needs.
Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.
Applications
- Machine Vision
- Video Surveillance
- 3D Scanning and Metrology
- Live Streaming
- Video Conferencing
Features
- Superior Imaging: Utilizes a Starvis back-illuminated IMX335 image sensor that delivers low-light sharpness at a maximum still resolution of 2592x1944.
- Flexible Frame Rates: Programmable your desired frame rates, even reaching 50fps at 1080p.
- Proprietary on-board ISP advances image enhancement: de-Bayer, gamma, BLC, AE, AWB, CCM, RGB2YUV.
- Optical Image Stabilization: Capture sharp and stable shots with OIS and experience an expansive 123° (D) field of view for immersive photos and videos.
- Plug and Play: Encased in an all-inclusive metal housing, its compact design makes it plug-and-play ready for on-the-go creativity.
Specifications
| Image Sensor | |
| Sensor | IMX335 |
|---|---|
| Still Resolution | 5 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/2.8" |
| Output Format | YUY2 |
| Pixel Size | 2.0 µm x 2.0 µm |
| Sensor Active Area | 2592(H)×1944(V) |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Frame Rate (USB 3.0) | 1920*1080@50fps, 2592*1944@25fps |
| Frame Rate (USB 2.0) | 1920*1080@10fps |
| Stabilizer Type | Optical Image Stabilization (OIS)/Micro Gimbal Stabilizer (MGS) |
| Stabilizer Dimensions | 18.8*18.8*15.8 mm |
| Stabilizer Compensation Axis No. | 2 (Pitch and Yaw) |
| Stabilizer Compensation Angle | ≤±4.5° |
| Stabilizer Compensation Ratio | ≥27 dB |
| Stabilizer Resonant Frequency | TBD |
| Stabilizer Average Power | 180 mW |
| Lens | |
| Focus Type | Fixed Focus |
| FOV | 123°(D)×112°(H)×96°(V) |
| Lens Mount | M8.0 |
| F.NO | F2.4 |
| E.F.L | 2.9mm |
| Default Focus Range | 1m-∞ |
| USB Interface | |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |
| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 1.37W , Min: 0.98W |
| Camera Board Size | 34×34 mm |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux |
| Recommend Sample Application | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Exposure (Manual/Auto) |
Package Including
- 1 x IMX335 USB3.0 Camera Module with Enclosure
- 1 x 1m USB A to Type-C Cable
