Multi Camera Adapter Bundle Kits
Write your review
213,38 €
Tasse incluse

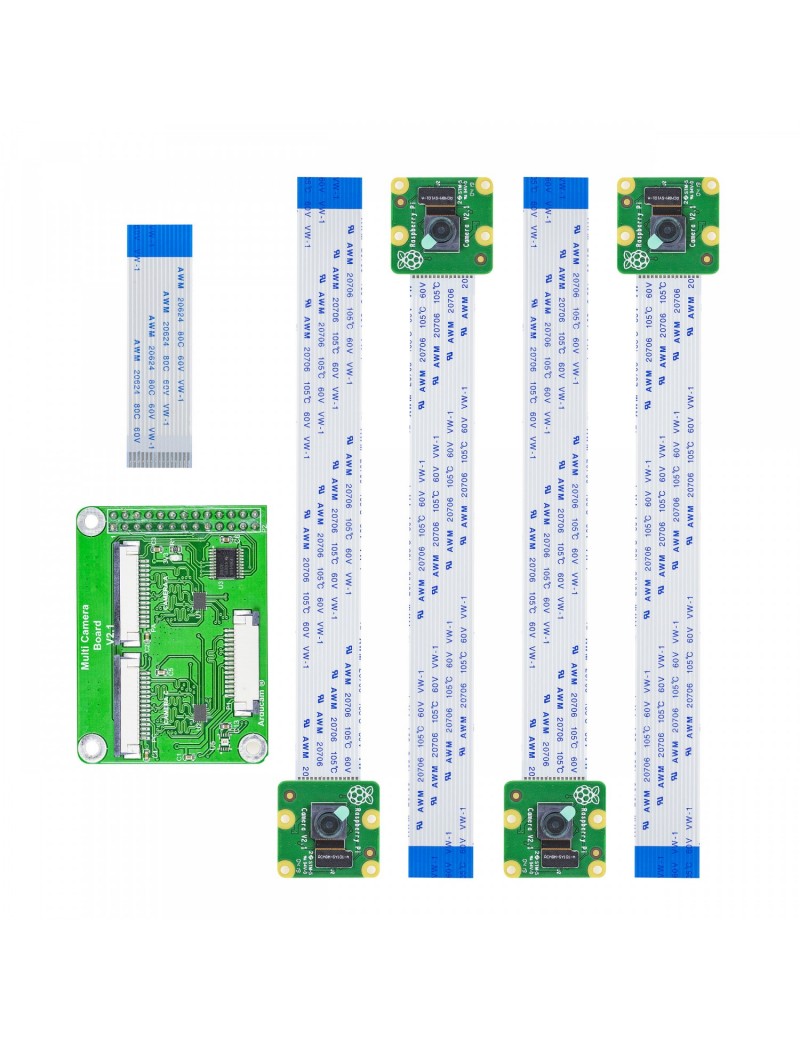

Arducam Multi Camera Adapter V2.1 for 5MP or 8MP Raspberry Pi Cameras
Overview
- Accommodate up to four 5MP or 8MP Raspberry Pi cameras on a multi camera adapter board
- Support Raspberry Pi Model A/B/B+, Pi 2 and Raspberry Pi 3,3b+
- All camera ports are FFC (flexible flat cable) connectors, Demo: youtu.be/DRIeM5uMy0I
- Cameras work in sequential, not simultaneously. High resolution still image photography demo
- Note: No mixing of 5MP and 8MP cameras is allowed. Low resolution, low frame rate video surveillance demo with 4 cameras
Raspberry Pi multi camera adapter V2.1 module is designed for connecting more than one 5MP or 8MP Pi camera to a single CSI camera port on Raspberry Pi board. One adapter board can connect 4 cameras on a single Raspberry Pi board. Please note that Raspberry Pi multi camera adapter board is a nascent product that may have some stability issues and limitations because of the cable’s signal integrity and RPi's closed source video core libraries, so use it on your own risk.
APPLICATION:
-
IoT cameras
-
Robot cameras
-
Wildlife cameras
-
3D scanner
PACKAGE INCLUDING:
-
1 pcs v2.1 Multi Camera Adapter Board
-
Standoffs and screws
