CMOS AR1820HS 1/2.3−inch 18MP Color Camera Module
Write your review
140,18 €
Tasse incluse
DETAILS
Item Description:

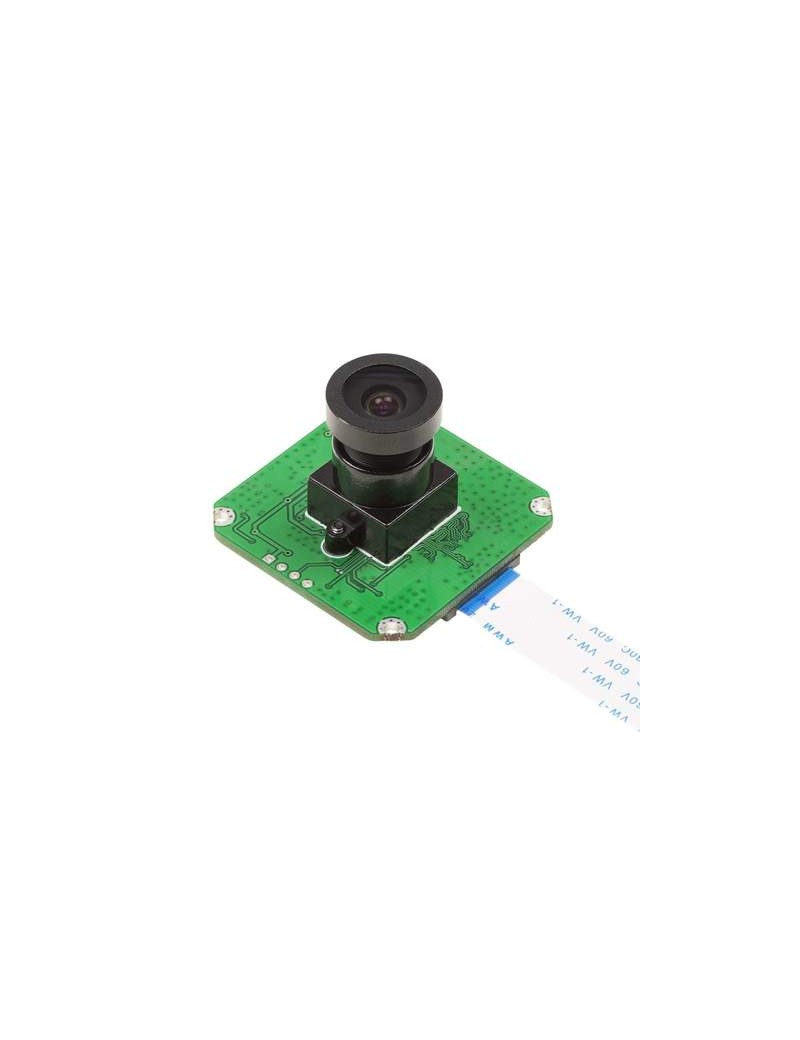

Arducam AR1820HS camera breakout incorporates ON Semiconductor 1/2.3−inch CMOS active−pixel digital imaging sensor AR1820HS with 1.25um x 1.25um A-PixHS™ BSI Pixel . It can support 18-megapixel (4912H x 3684V) digital still images at 24 fps and a 1080p plus additional 27 percent pixels for electronic image stabilization (2448H x 1378V) in digital video mode at 60 fps and 1080p120 fps.
Note:
The camera module is the RAW sensor which doesn’t include ISP (Image Signal Processing) on the image sensor chip, so it only supports manual exposure, manual white balance, manual gain settings.
Features:
| Optical format | 1/2.3−inch (4:3) |
| Active pixels | 4912H x 3684V |
| Pixel size | 1.25um x 1.25um |
| Color filter array | RGB Bayer pattern |
| ADC resolution | 12−bit, on−chip |
| Responsivity | 0.62 V/lux−sec (545 nm) |
| Dynamic range | 65.8 dB |
| SNRMAX | 36.3 dB |
| Output Interface | 4-Lane MIPI |
| Frame Rate | 4:3 – 18 Mp full resolution at 15 fps (MIPI-4L) 16:9 – 14 Mp at 20 fps (MIPI-4L) 16:9 – 8 Mp at 30 fps (MIPI-4L) 16:9 – Full HD + 27.5%EIS at 60 fps 16:9 – Full HD at 120 fps |
| Lens | Default: low distorion M12 lens (Part Number: M27280M07S) |
| IR Sensitive | build-in 650nm IR filter, none sensitive to IR light |
Application:
- Digital video cameras
- Digital still cameras
- Industrial camera
- Medical camera
- Microscopy camera
- UAV camera
Package Including:
- 1 pcs Arducam CMOS AR1820HS 1/2.3−inch 18MP Color Camera Module
Arducam Link:
AC-B0164
