ITEM DESCRIPTION:

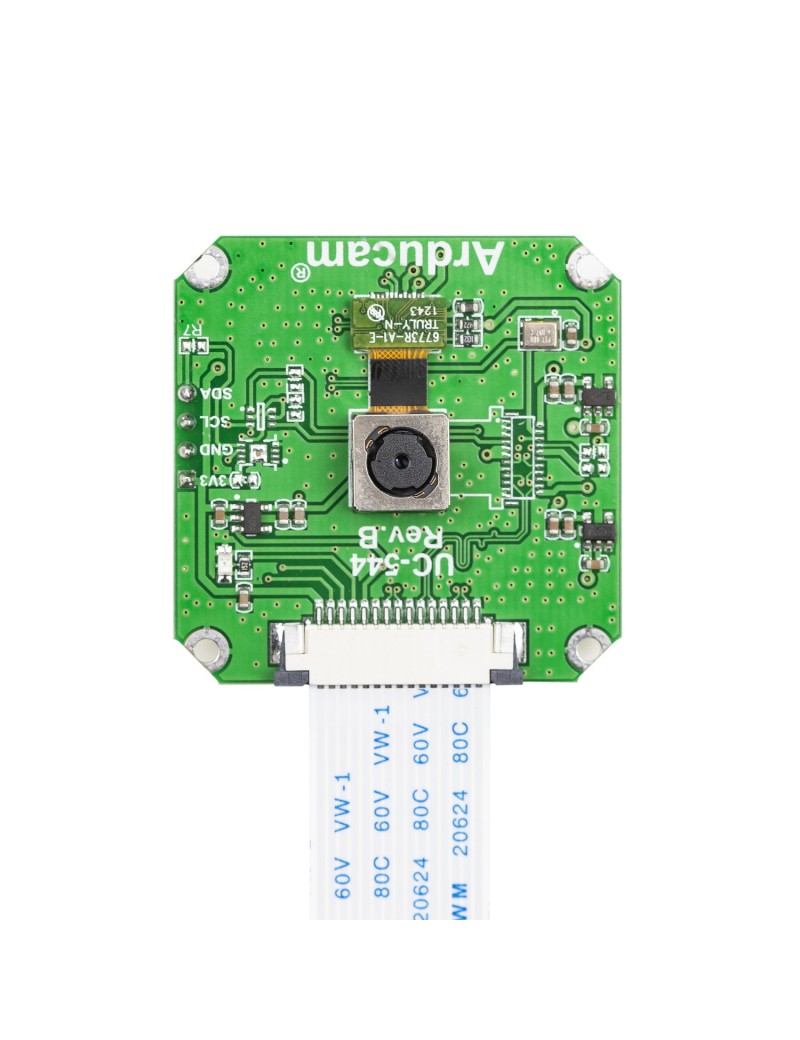

The standard pi camera is fixed focus lens, some of them are glued which can not be adjust by users, and some of them are not glued which can be adjust the lens focus manually. But in certian circumstance, you want to programmably control the focus distance remotely where the device can not be reached. The ArduCAM team now designed motorized control focus 5MP and 8MP camera module for Raspberry Pi series boards to address this problem.

FEATURES:

• High-Definition video camera for Raspberry Pi Model A/B/B+ and Raspberry Pi 2 Pi 3B, Pi 3B+ and Pi Zero
• 5MP OV5647 sensor with motorized focus lens
• Integral IR filter
• Angle of View: 54 x 41 degrees
• Field of View: 2.0 x 1.33 m at 2 m
• Full-frame SLR lens equivalent: 35 mm
• Focus distance: 4 cm to infinity (can be customized to much closer distance)
• Size: 40 x 40 mm
• 15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector

APPLICATION:

PACKAGE INCLUDING:

• • 1pcs Motorized Focus 5MP Camera OV5647 for Raspberry Pi

NOTE:

• Raspberry Pi Type B Development Board is not included
