Item Description:

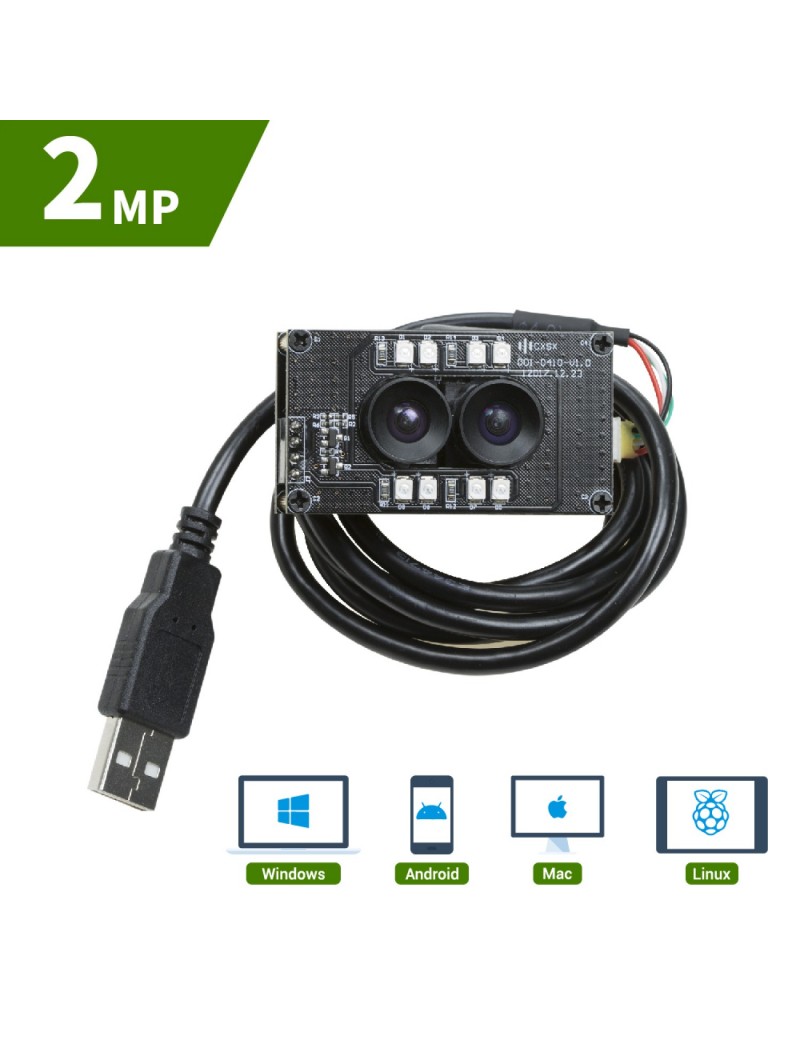

The B0198 is a new member of the Arducam’s USB camera family to meet the requirement of application in face recognition and biological detection. It's a UVC compliant synchronized stereo module. It has two 2MP USB 2.0 camera modules (RGB and IR dual output), and transfers data from one USB cable.

Specifications
- Sensor: 1/2.7” OV2710
- Resolution: 2MP 1920 x 1080
- Data Format: MJPG/YUY2
- Frame Rates: MJPG 30fps@1080p; YUY2 30fps@640x 480
- Field of View (FOV): 95°
- Lens Mount: M12

Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- System Compatibility: Windows, Linux, Mac and Android with UVC

Power
- Power Supply: USB Powered 5V
- Working Current: MAX 500mA

Physical
- Operating Temp.: -4°F~167°F (-20°C~+75°C).
- Dimension: 54mmx30mm
- Cable Length: 3.3ft (1M)
