Item Description:

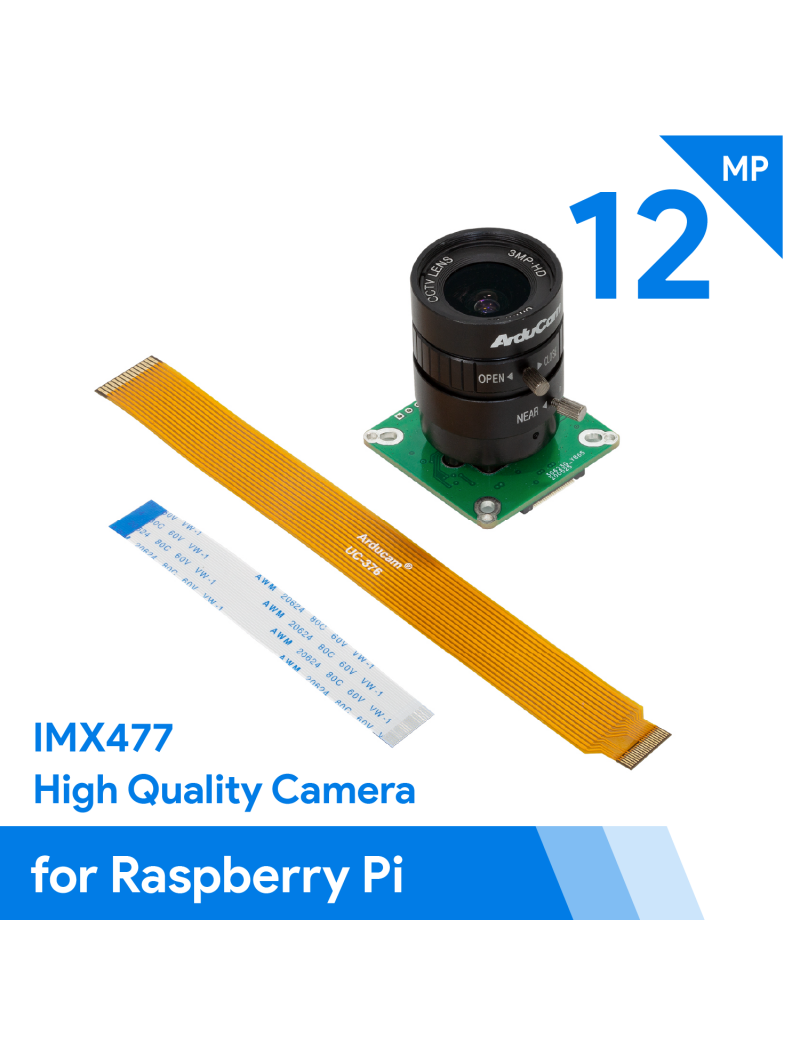

The official Pi HQ camera is only available in one model. It doesn't come with a lens and it is also not easy for the users to find a case. To solve these pain points, Arducam released this camera module, a customized IMX477 camera board with three hole pitches and a 6mm CS lens. And you can download our 3D files to print your case as you like. This camera module supports all Raspberry Pi as well as Jetson Nano (need Jetvariety adapter board, not included) and PC/laptop (need MIPI adapter board and USB camera shield, not included).

Features:

• Get Clearer Images: This camera adopts 1/2.3" 12.3 Megapixel IMX477 sensor for sharp image, max. still resolution 4056(H) x 3040(V).
• Less Hassle: No more wasting time looking for the CS lens and camera case. A 1/2.3" 6mm focal length CS lens is included, and the 3D file of the camera can be downloaded to print your case. Also, you can search for B0241 to get the camera bundle with the metal enclosure.
• More Lanes: The Arducam high quality camera module has a 4-lane MIPI CSI-2 interface, more than the official one, makes it possible to get more data through.
• Support More Platforms: It supports all Raspberry Pi camera models, Pi 4, Pi 3/3B+/3A+, CM3/3+, Pi Zero, and more. For Jetson Nano, a Jetvariety adapter board is needed (not included), you can search for B0242 to get the Jetson Nano camera bundle. For PC/laptop, you need a camera shield and a MIPI adapter board, please search for USB2 camera shield B0175 or USB3 camera shield B0111, and MIPI adapter board B0123.

Ordering in bulk? Or having questions about this camera? Talk to us!

Specifications:

Camera

• Sensor: IMX477
• Optical Format: 1/2.3" (diagonal 7.857mm)
• Resolution: 4056(H) x 3040(V) 12.3MP
• Pixel Size: 1.55um x 1.55um
• IR Sensitivity: Visible light
• Interface: 4-lane MIPI CSI-2
• Default Lens Mount: CS-Mount
• Frame Rate: (depends on the target platform, maximum fps limit might apply)
  • Full resolution@60fps(normal), 4K2K@60fps, 1080p@240fps
  • Full resolution@40fps (12bit normal)
  • Full resolution@30fps (DOL-HDR, 2 frames)

Lens

• Format: 1/2.3 inch
• Focal Length: 6mm
• Aperture (F): F1.4
• Field of View (FOV): 65° (H)
• Mount: CS-Mount
• Back Focal Length: 12.5mm
• MOD: 0.1m Dimension: Φ28×26.58mm
• Weight: 29g

Camera Board

• Board Size: 38mm×38mm
• Hole Pitch: Compatible with 29mm, 30mm, 34mm

Package Includes:

• 1 pcs 12.3MP IMX477 color camera module
• 1 pcs 6mm focal length CS-mount camera lens
• 1 pcs Jetvariety adapter board
• 1 pcs 150mm/6inch 15pin camera cable
• 1 pcs 300mm/12inch 15pin to 22pin camera cable
• 1 pcs 80mm/3.15inch 22pin camera cable for Raspberry Pi Zero&W
