Overview

This Arducam IMX477 High Quality motorized focus camera module integrates a motor that could be controlled by software for a smarter focus, and you will no longer focus the camera by screwing the lens with your bare hands. Instead, keyboard keys or OpenCV can be used to remotely control the focusing process of your HQ camera. Other than its motorized focus, it offers the same picture quality and camera controls as the Raspberry Pi High Quality camera. However, the Arducam High Quality Camera Modules do not require any hardware modifications to work with the Jetson Platform.

Features & Specs

IMAGE SENSOR

• Sensor Model: IMX477
• Shutter Type: Rolling shutter
• Sensor resolution: 4056 x 3040 pixels, 12.3MP
• Image Sensor Format: Type 1/2.3″
• Pixel Size: 1.55 µm x 1.55 µm

LENS ASSEMBLY

• Model No: M23390H08
• Optical Format: 1/2.3”
• Focal Length: 3.9mm
• Aperture: F2.8
• Field of View (FOV): 75° (H) on Raspberry Pi High Quality Camera, 50°(H) on Raspberry Pi V1/V2 Camera
• Mount: M12 mount
• Back Focal Length: 4.49mm
• MOD: 0.3m
• Dimension: Φ14×18.67mm
• Weight: 5g

Package Contents

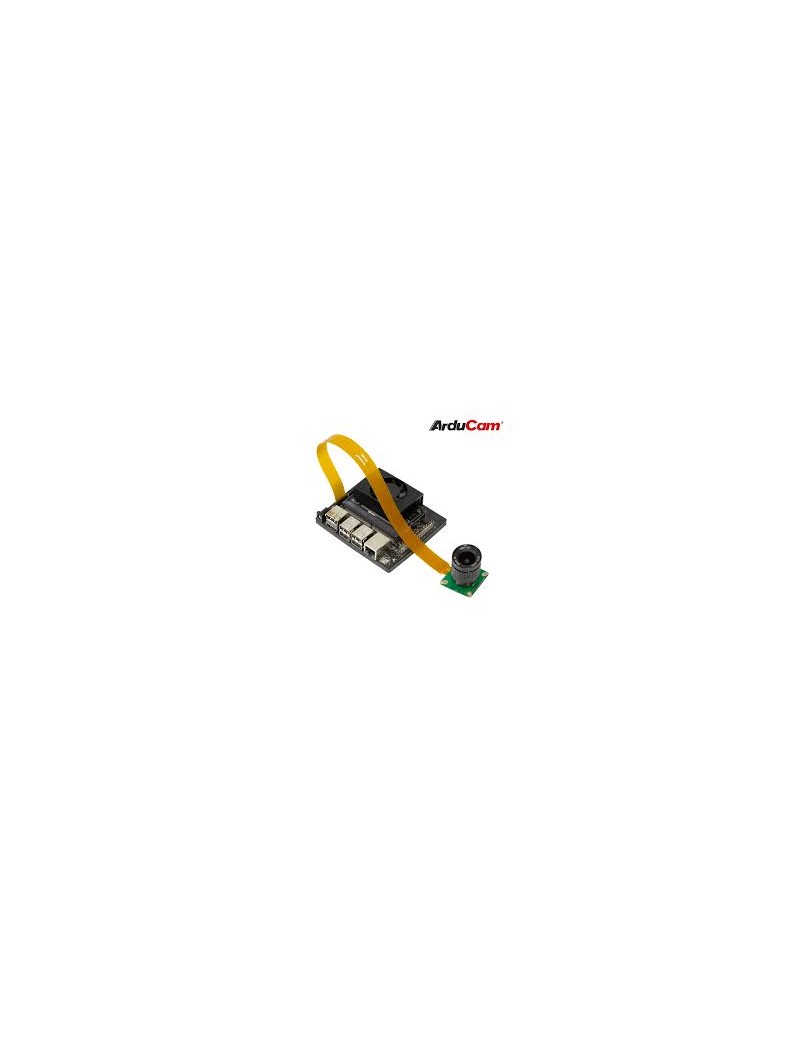

• 1 × Arducam 12MP IMX477 Motorized Focus High Quality Camera for Jetson Nano and Jetson Xavier NX
• 1 × 300mm 15pin-22pin flex ribbon cable

Documentation

Quick Start Guide - IMX477 – Motorized Focus Camera on Jetson
