Item Description

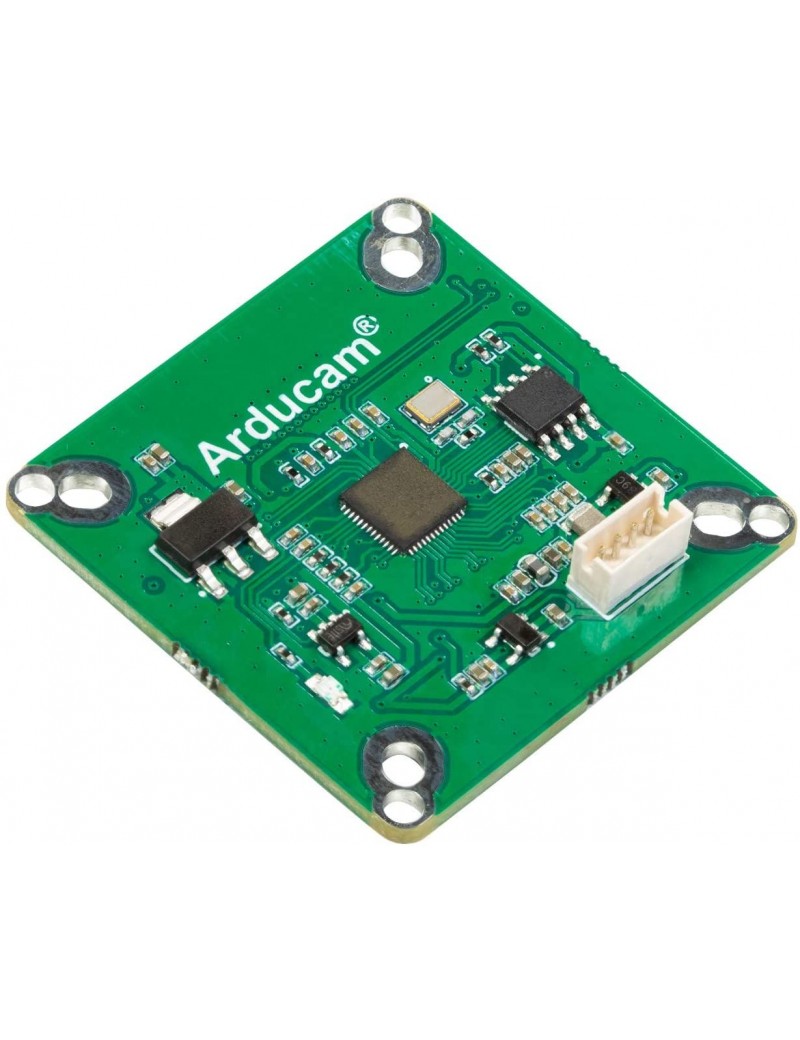

This CSI to USB adapter board aims to break the limits of applications of Raspberry Pi IMX477 High Quality camera and Arducam IMX477 camera series. Just connect this adapter with the camera board to PC computer, laptop, Android device, Raspberry Pi via USB port and it can work as a webcam.

No longer be anxious about installing the driver! It makes your 12.3MP IMX477 High Quality Camera UVC-compliant, the native UVC drivers of Windows, Linux and Mac shall be compatible with them so that it does not require extra drivers to be installed.

Features

• Make IMX477 UVC-Compliant: This CSI to USB adapter board can extend your 12.3MP IMX477 High Quality Camera work as a webcam, just connect this adapter with camera board to PC computer, laptop, Android device, Raspberry Pi via USB port without extra drivers to be installed.
• With Audio: This adapter makes your IMX477 camera board no longer be silent because of the built-in dual microphones, so as to capture video with audio.
• Ultra HD and High Frame Rates: It has no effect on the image quality and frame rates at all; max. still resolution 4056(H) x 3040(V); MJPG 10fps@4056x3040, 20fps@4K(3840x2160), 30fps@2592x1944/2560x1440, 60fps@1080P, 100fps@720P.
• Easy to Assemble: Board dimension is 38mmx38mm, same sized with IMX477 HQ camera board, and compatible location and pitch of mounting hole, just connect and assemble the adapter board with the camera board, with the included camera cable and accessories.

Specification

• Supports Raspberry Pi Official High Quality camera and Arducam IMX477 HQ camera series.
• Data Format: MJPG
• Frame Rate: 10fps@4032x3040; 20fps@3840x2160; 30fps@2592x1944/2560x1440; 60fps@1080P; 100fps@720P
• Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
• System Compatibility: Win7/8/10, Linux, Mac and Android with UVC
• Signal Input: 22 Pin 0.5mm Pitch CSI connector
• Signal Output: 1.5mm Pitch ZH connector ZHR-4
• Voltage Input: DC 5V
• Connecting Port Type: USB2.0
• Working Current: 200mA
• Operating Temp. : -4°F~167°F (-20°C~+75°C)
• Overall Dimension: 38mm x 38mm
• Hole Pitch: Compatible with 34mm x 34mm, 30mm x 30mm, 29mm x 29mm.
• Cable Length: Default 3.3ft(1m)

Package Including

• 1pcs CSI-UVC adapter board
• 1pcs 3.8cm 22pin to 15pin camera cable for Raspberry Pi Official High Quality Camera
• 1pcs 8cm 22pin to 22pin camera cable for Arducam IMX477 HQ camera series
• 1pcs 1m/3.3ft USB2.0 camera cable
• 1 set accessories of standoff, screws, and nuts
