IMX219 Wide Angle Camera Module for rasp and jet
Write your review
32,00 €
Tasse incluse
Item Description:

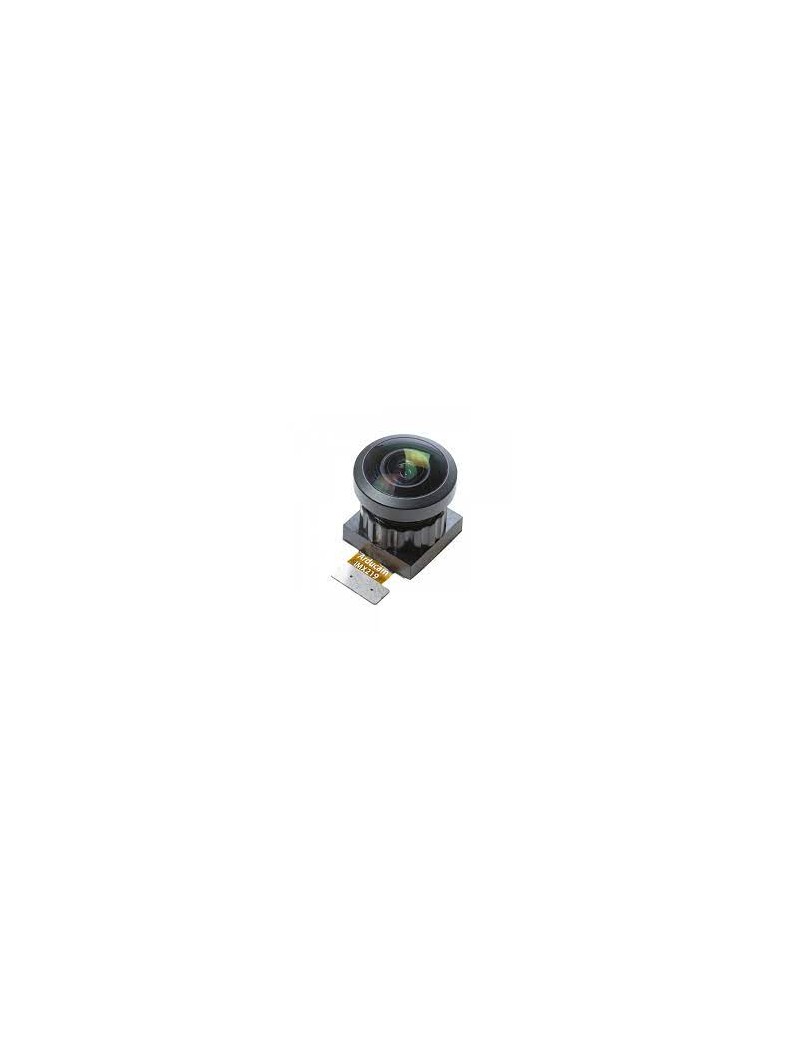

This Arducam IMX219 fisheye lens camera module is designed mainly for Raspberry Pi V2 camera board and replace the default standard IMX219 camera module to get much wide field of view. It can be used for drone, robot, action camera and 3D scanning applications.
Features:
- Sony 8MP IMX219 Sensor
- Optical Format: 1/4 inch
- Frame Rate: 30fps@8MP, 60fps@1080p, 180fps@720p
- Data Format: RAW8/RAW10
- EFL: 2.5mm
- F.NO: 2.8
- Focus Type: Fixed Focus
- View Angle: 175(D) x 155(H) x 115(V)
- Interface: MIPI CSI-2 2-lane/4-lane
- IR Sensitivity: Integral IR Filter, visible light only
Lens Options:
SKU | Format | FOV on 1/4” sensor | Focal Length |
LN006 | 1/4’’ | 100° | 1.8mm |
LN008 | 1/2.5’’ | 140° | 1.56mm |
LN011 | 1/2.5’’ | 45° | 4mm |
LN012 | 1/2.5’’ | 55° | 3.6mm |
LN013 | 1/2.7’’ | 75° | 2.8mm |
LN014 | 1/2.7’’ | 90° | 2.1mm |
LN015 | 1/4’’ | 63° | 3.2mm |
Package Includes:
- 1pcs Arducam IMX219 Wide Angle Camera Module
Note:
- Raspberry Pi V2 camera board is needed to work with this camera module.
Additional Resources:
- Sensor Datasheet – Sony IMX219
- Used on Raspberry Pi
- Used on Jetson Nano
- 3D Drawing – IMX219 Wide Angle Drop-in Replacement
- Video – Arducam 8MP IMX219 Wide Angle Camera for Raspberry Pi (No Board)
- Video – Arducam 8MP IMX219 Wide Angle NVIDIA Camera
- Blog – Arducam 8MP IMX219 Wide Angle NVIDIA Camera
- Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
