Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. For a long time, Raspberry Pi users are limited to use the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White Balance, Auto Gain Control, Lens Shading Correction, etc.

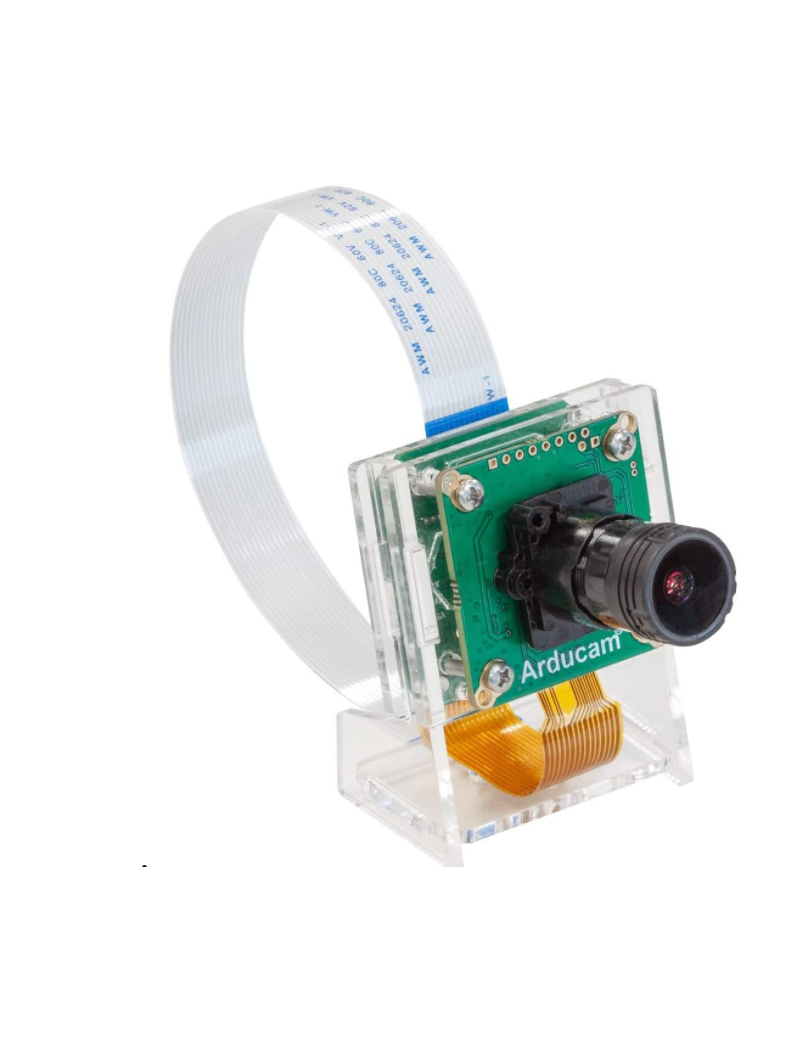

This B0333 is a new member of Arducam Pivariety series, which adopts a 1/2.8Inch 2MP STARVIS sensor IMX462, assembled with a wide aperture M16 lens, so as to can get much more decent image quality than the Official cameras in low light conditions.

Details

• This camera is a new member of Arducam Pivariety series, which adopts an IMX462 low light sensor and also supports hardware ISP functions like AEC/AGC, etc. That is to say, with this Pivariety, you can get much more decent image quality than the Official cameras in low light conditions.
• Shot Image and Video: Still image resolution of 2MP 1920×1080; ISP output image format of JPG, YUV420, RAW, DNG; Adjustable frame rate, up to 60fps@1080P; ISP Output video Format of MJPEG, H.264.
• Ultra Low-Light: IMX462 Color COMS sensor produces the camera capture the minimum illumination 0.01Lux, which gives you clearer visual joy for low light and night vision.
• Lens SPEC: M16 lens mount, HFoV of 92deg, F/0.95 wide aperture ensure enough amount of light that can enter, which enhance the ultra-low light function of this camera module.
• Compatibility: Supports Raspberry Pi 4, Pi 3/3B+/3A+, and other A & B models. Compatible w/ all libcamera-based apps maintained by the RPi foundation, like Gstreamer, OpenCV etc. NOTE: Pivariety can only work with libcamera instead of raspistill application.

Key Features

– 2MP IMX462 STARVIS color sensor, up to 1080P@60fps.

– Minimum illumination 0.01Lux

– F0.95 wide aperture M16 lens

- AEC, AWB.

– Gstreamer support.

– V4L2 support.

– Compatible w/ all libcamera-based apps maintained by the RPi foundation.

– For day&night low light vision camera system, robotics or other machine vision application.

SPECS

– Image Sensor: 2MP IMX462

– Resolution: 1920H×1080V

– Pixel Size: 2.9μm(H)×2.9μm(V)

– Optical Format: 1/2.8″

– Lens Spec: M16 lens mount, focal length of 4mm±5%, F/0.95±5%, 92 degrees horizontal field of view (HFoV)

– Minimum Illumination: 0.01Lux

– Frame Rate: Adjustable, 5-60fps@1080P

– Sensor Output Format: RAW10

– ISP Output Format: The output image format of JPG, YUV420, RAW, DNG

– The output video format of MJPEG, H.264

– Interface Type: 2-Lane MIPI

– Board Size: 38mm×38mm

– Hole Pitch: Compatible with 34mm×34mm, 28mm×28mm

Dimension

Documentation

Manual

Assembly Guide

Acrylic Bracket Assembly Guide

Package Contents

– 1 x Arducam 2MP IMX462 ISP Camera Module

– 1 x Arducam adapter Board

– 1 x 200mm 15pin 1.0mm FPC cable

– 1 x acrylic case kit with assembly accessories
