Overview

Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. For a long time, Raspberry Pi users are limited to use the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White Balance, Auto Gain Control, Lens Shading Correction, etc.

Specs

– Image Sensor: 2MP OG02B10

– Resolution: 1600H×1300V

– Pixel Size: 3μm(H)×3μm(V)

– Optical Format: 1/2.9″

– Lens Spec: M12 lens mount, focal length of 2.8mm±5%, F/2.8±5%, 110 degrees horizontal field of view (HFoV)

– IR Sensitivity: Integral IR filter, visible light only

– Frame Rate: 1600×1300@60fps; 1600×1080@80fps; 1280×720@120fps

– Sensor Output Format: RAW10, RAW8

– ISP Output Format: The output image format of JPG, YUV420, RAW, DNG; The output video format of MJPEG, H.264

– Interface Type: 2-Lane MIPI

– Board Size: 40mm×40mm

Documentation

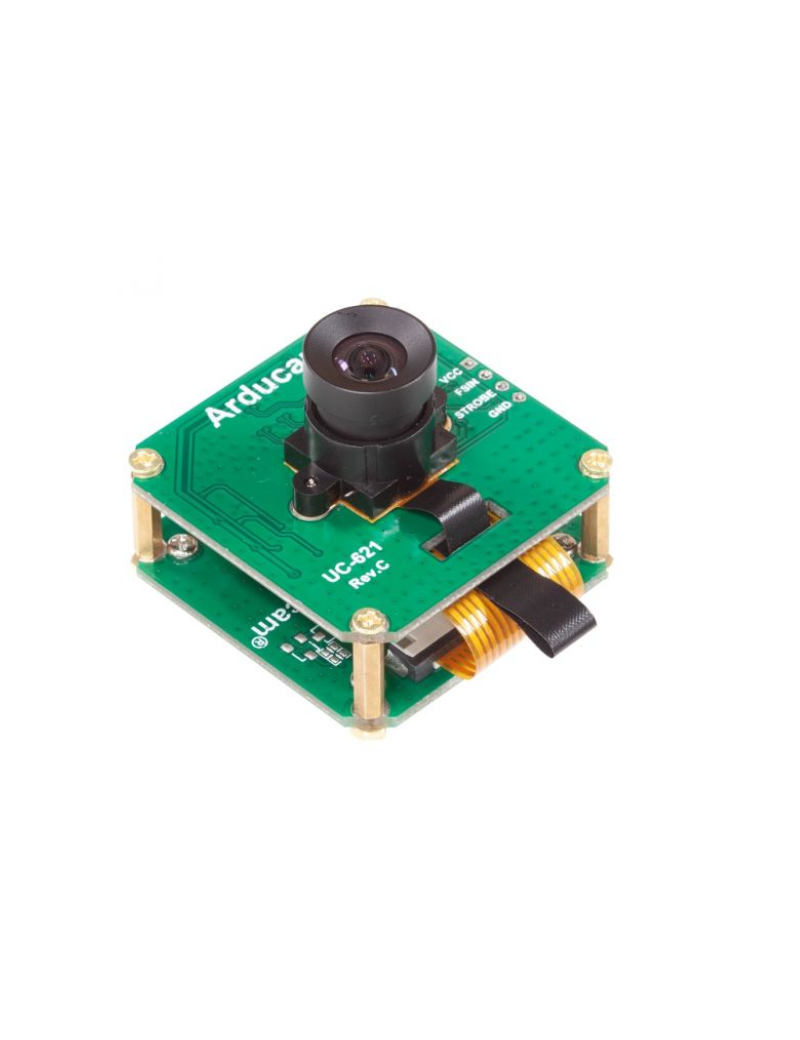

Pivariety OG02B10 2MP Color Global Shutter Camera Module

Access OG02B10 2MP Color Global Shutter Camera using external trigger snapshot mode

User Guide

Acrylic Bracket Assembly Guide

Package Contents

– 1 x Arducam 2MP OG02B10 Color Camera Module

– 1 x Arducam adapter Board

– 1 x 200mm 15pin 1.0mm FPC cable

– 1 x acrylic case kit with assembly accessories
