Arducam Fisheye, Low Light USB 2.0 Camera based on 1/2.8” 2MP IMX291 image sensor, UVC compliant.

No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera.

Superior low light feature, shot sharp images even at night.

Built with a single microphone, capture video with audio.

Feature

• HD and Low Light: This camera adopts the 2MP 1/2.8” IMX291 Color COMS sensor with an 80DB wide dynamic range, can capture the minimum illumination 0.001Lux.
• Real Fisheye: Mounted a high-quality 175°(D) wide-angle M12 Lens, which provides the most widely Field of View compared to other lenses in the series.
• Capture Video with Audio: High frame rates, H.264 30fps@1920x1080; MJPG 30fps@1920x1080; YUY2 30fps@640x 480; Audio, single microphone (optional dual channel). The features of fisheye imaging, low light, and small size help the camera board perform better in the video surveillance system, baby camera, dashcam, and other vision applications.

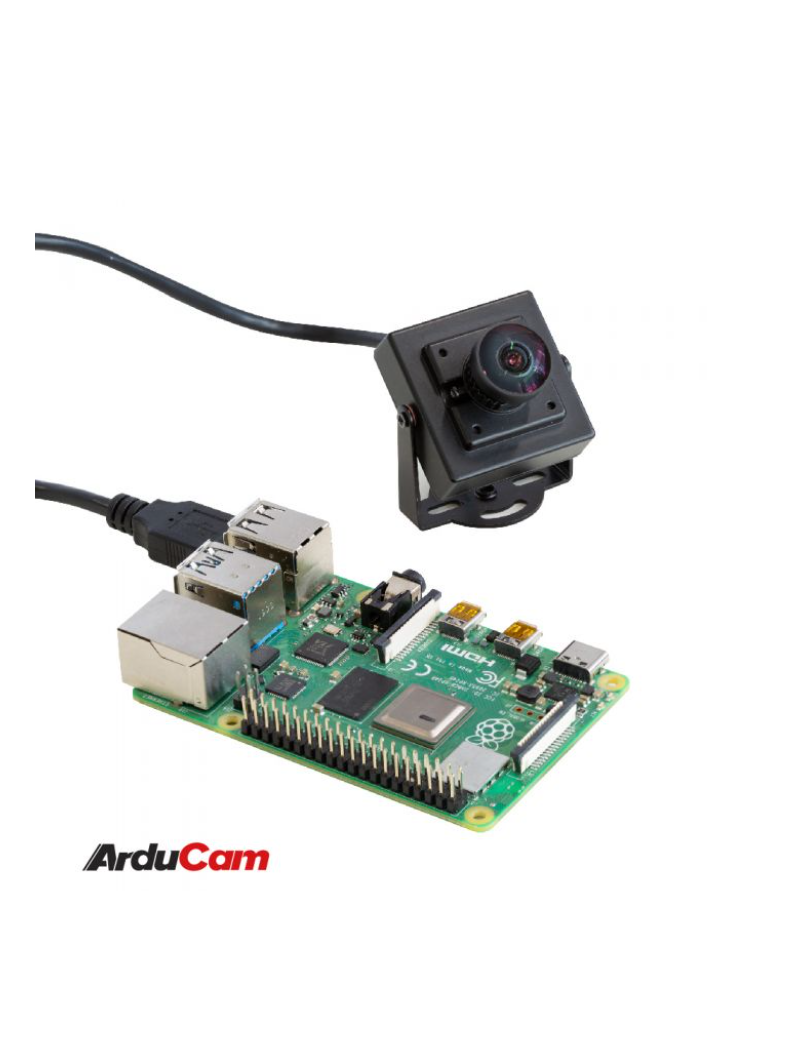

• Plug&Play: Ready to use, assemble with a mini metal case and rotatable bracket, you can easily put on the desk or any flat surface, or mount on the wall or tripod mount.
• Wide Compatibility: UVC-compliant, support Windows XP/7/8/10, Linux, and Mac OS, just connect the camera to PC, laptop, or Raspberry Pi with the USB cable without extra drivers to be installed. For Mac OS, please open the native software facetime and select the video camera “USB Camera”.

Feature

Camera

Sensor: 1/2.8” IMX291

Resolution: 2MP 1945H x 1109V

Data Format: MJPG/YUY2/H.264

Frame Rate: H.264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360

Dynamic Range: 80DB

Minimum Illumination: 0.001Lux

Lens

-Field of View (FOV):D= 175°

Lens Mount: M12

Focusing Range: 3.3ft (1M) to infinity

IR Sensitivity: Integral IR filter, visible light only

MORE SPECIFICATIONS

Functionality and Compatibility

Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.

Audio: Single microphone (optional dual channel)

System Compatibility: Windows, Linux, and Mac with UVC

Power

Power Supply: DC 5V

Working Current: MAX 300mA

Physical

Operating Temp.: -4°F~158°F (-20°C~+70°C)

Dimension: 36mmx44x30mm

Cable Length: 3.3ft (1M)

Application

Video conference

Home video surveillance system

Day&night low light vision security camera system

Dash cam

Monitoring 3D printer

Baby Camera

Robot and machine vision

Documentation

Manual
