HD Wide Angle USB Camera Rate 30fps@5MP IMX335

63,44 €
Tasse incluse
Quantità
Add to Compare
Add to Wishlist

Product description

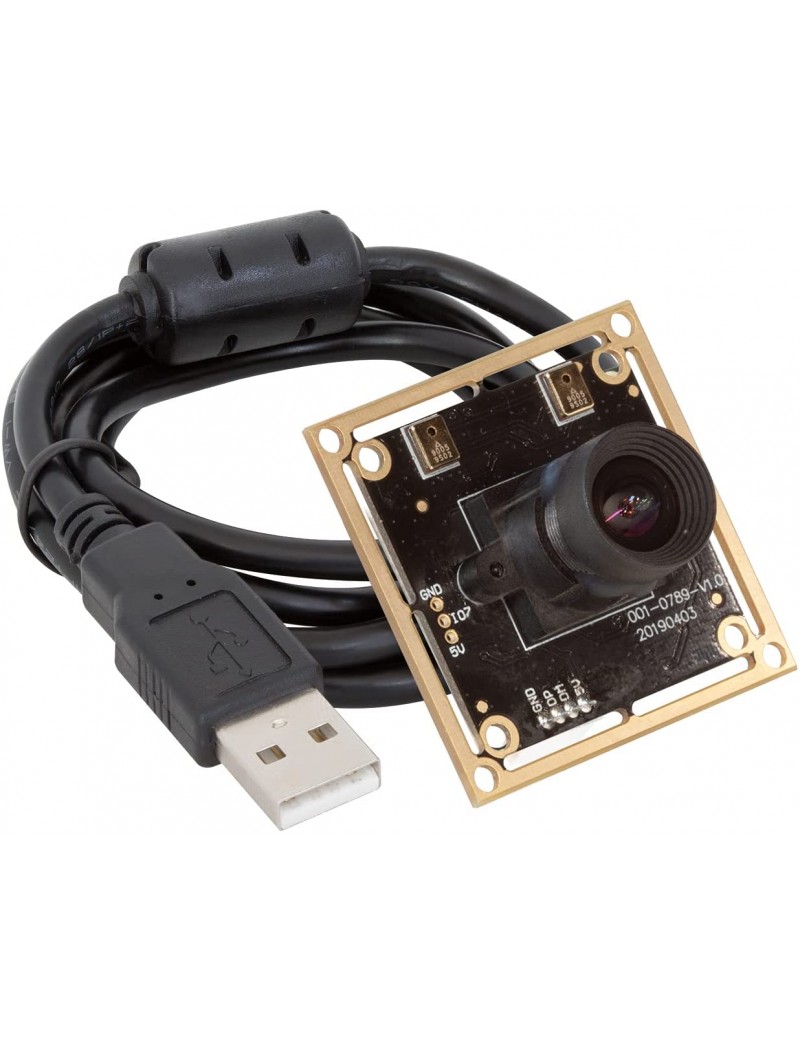

Arducam UB0236 is a 5MP, based on the 1/2.8" IMX335 image sensor, UVC compliant, wide angle USB 2.0 camera.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

Ultra HD resolution and high frame rate meet your request of higher quality video and still pictures resolution.



Feature

  • Ultra HD Resolution: This camera adopts the 5MP IMX335 Color COMS sensor for sharp images and accurate color reproduction with 72DB high dynamic range.
  • Wide Angle: Assembled with a 75-degree horizontal view angle M12 lens with IR filter, which provides a much wider Field of View.
  • High Frame Rates: MJPG 30fps@2592 x 1944/2048 x 1536; 30fps@1080P/720P/1024 x 768/800 x 600; YUY2 20fps@800 x 600; 3fps@1920 x 1080; 30fps@640 x 480.
  • Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
  • Applications: Highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other video vision applications need high frame rates with high resolution.

APPLICATIONS

Home video surveillance system

Live streaming

Videoconference

Monitoring 3D printer

Dashcam

......

SPECS

Camera

- Sensor: 1/2.8” IMX335

- Resolution: 5MP 2592 x 1944

- Dynamic Range: 72DB

- Frame Rate: MJPG 30fps@2592 x 1944/2048 x 1536; 30fps@1080P/720P/1024 x 768/800 x 600; YUY2 20fps@800 x 600; 3fps@1920 x 1080; 30fps@640 x 480.

Lens

- Field of View (FOV)：75 degree (H)

- Lens Mount: M12

- IR Sensitivity: Integral 650nm IR filter, visible light only

- Focusing Range: 3.3ft (1M) to infinity

Functionality and Compatibility

- Adjustable parameter: Contrast/ Saturation/ Exposure/ White balance

- Audio: Dual microphones

- System Compatibility: Win7/8/10, Linux, Mac OS with UVC driver

Power

- Power Supply: USB powered 5V

- Working Current: MAX 300mA

Physical

- Operating Temp.: -4°F~158°F (-20°C~+70°C).

- Dimension: 38mmx38mm

- Hole Pitch: compatible with 34x34mm, 28x28mm

- Cable Length: 3.3ft (1M)





Documentation

Manual

Datasheet

AC-UB0236
