Overview

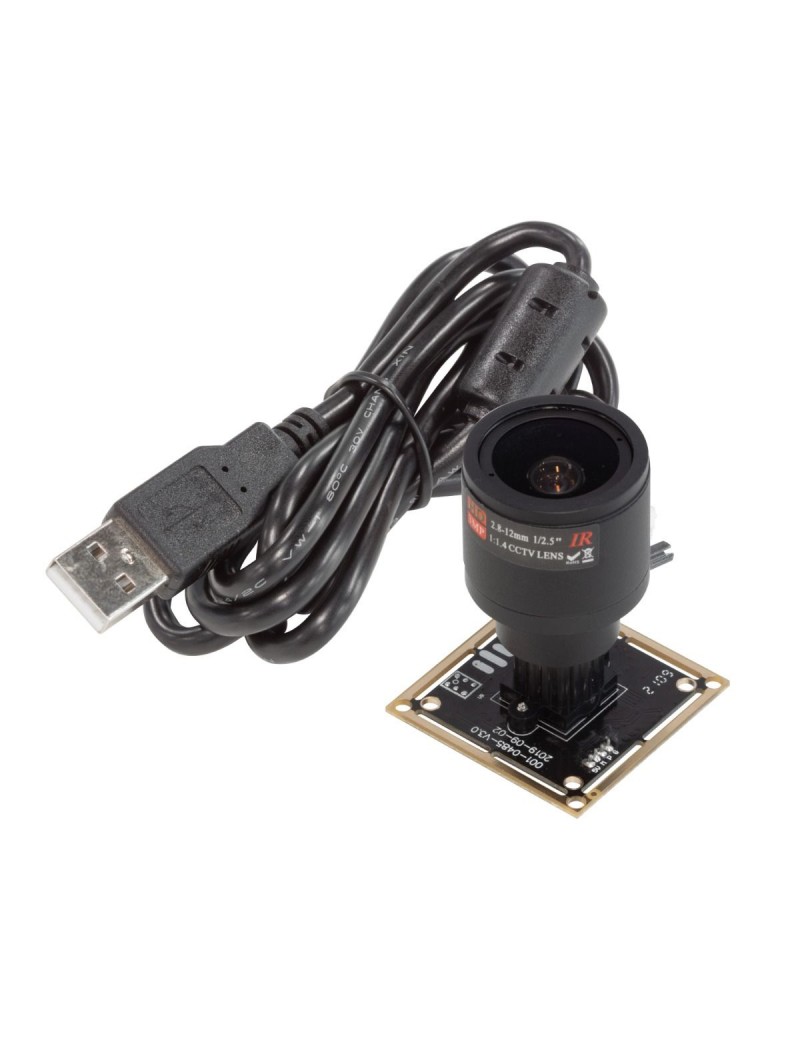

The B0357 is a new member of Arducam’s USB camera family. It’s a 2MP, UVC compliant, USB 2.0 camera. This USB camera is based on the 1/2.7” AR0230 image sensor and has the ability to stream images and videos seamlessly. All Auto functions can be performed (Auto White Balance, Auto Exposure control). Standard UVC protocol, compatible with Windows 7/8/10, Mac OS, Andriod, and Linux.

It is assembled with a CCTV camera varifocal lens that allows you to adjust the focal length for your specific needs. Adjust the focus and focal length by simple zoom and manual focus, this webcam is easy to deliver crisp images with good color saturation and purity.

Features:

【HD 1080P Webcam】High-quality USB camera adopted CMOS AR0230 image sensor with max resolution 1920×1080 for great picture performance, keep the purity and clarity of images. High frame rate: 1080P@30fps, Compression format: MJPG / YUY2; Saturation, Contrast, White balance adjustable.
【2.8-12mm CCTV Video Lens】2.8-12mm varifocal lens USB camera with IR-cut filter@650nm provides a field of view from 55°-38° different angles. The focal length is 2.8-12mm and the minimum focusing distance is 10mm, which could capture every tiny detail to meet the needs of different scenes.
【HDR & WDR】Up to 96 dB wide dynamic range, this webcam supply crisp image and crystal clear video at a fluid 30 frames.
【Plug & Play】UVC-compliant, just connect the camera to a PC computer, laptop, or Raspberry Pi with the USB cable without extra drivers to be installed.
【Applications】Highly recommended for the video surveillance system, live streaming, video conference, dashcam, and other video vision applications need high frame rates with high resolution.

Specifications

Camera

Sensor: 1/2.7” AR0230

Resolution: 1928(H) x 1088(V)

Data Format: MJPG/YUY2

Frame Rate: MJPG 30fps@1080P/720P/1280 x 1024/800 x 600/640 x 480; YUY2 5fps@1080P/720P; 20fps@800 x 600/960 x 540; 30fps@640 x 480

Lens

Dynamic Range: Up to 96 dB

Focal Length: 2.8-12mm

Field of View (FOV): 75°-35°

Lens Mount: M12

IR Sensitivity: Integral IR filter, visible light only

Functionality and Compatibility

Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.

System Compatibility: Windows, Linux, Android and Mac with UVC

Power

Power Supply: USB powered 5V

Working Current: MAX 300mA

Physical

Operating Temp.: -4°F~158°F (-20°C~+70°C)

Dimension: 38mmx38mmx50mm

Cable Length: default 3.3ft (1M)
