Arducam IMX219 Visible Light Fixed Focus Camera Module for Raspberry Pi

24,40 €
Tasse incluse
Quantità
Ultimi articoli in magazzino
Add to Compare
Add to Wishlist

Overview

No less than the Raspberry Pi official camera V2, this camera module is also equipped with a high-definition IMX219 8MP sensor for shooting HD video and still images. It is excellent in image quality, color fidelity, and low light.

For beginners, this is a very easy camera module to get started; for advanced players, this camera module has more knowledge that you should explore and DIY.

Applications

  • Unmanned Aerial Vehicles (UAVs)
  • Building Drones
  • Autonomous Robotic Systems
  • Mobile Medical Imaging
  • Intelligent Video Analytics (IVA)

Features

  • 8MP HD Camera: Designed for Raspberry Pi, based on Sony 8MP IMX219 Sensor.
  • Higher quality: Compared with the official Raspberry Pi Camera v1, not only the resolution is improved, but its image quality, color fidelity, and low light performance are all upgraded by leap.
  • 1080P High resolution: Supports 3280 × 2464 pixel still images, and still captures.
  • Easy to setup: Simply use the 15pin ribbon cable to attach the CSI port on the Raspberry Pi, then make a simple configuration and you are ready to use the camera.
  • Easy to use for beginners, and for advanced gamers, it offers more to explore.
  • Wide Application: Perfect for time-lapse, slow motion, home security applications, monitoring Octoprint 3D Printer, and wildlife camera trap applications.

Specifications

Camera

Image Sensor IMX219
Still Resolution 8 Megapixels
Video Modes 1080p47, 1640 × 1232p41 and 640 × 480p206
Sensor Resolution 3280 × 2464 pixels
Sensor image area 3.68 x 2.76 mm (4.6 mm diagonal)
Pixel Size 1.12 µm x 1.12 µm
Optical Size 1/4"
IR Sensitivity Integral IR-cut Filter, visible light only
Supported Platform Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W

Lens

FOCUS TYPEFIXED FOCUS
Focal Length 3.04mm
F.NO F2.0
Field of View(FOV) 62.2°(H)×48.8°(V)
Lens Type Stock Lens
Focus Distance 200mm to infinity



Electrical & Mechanical

CAMERA BOARD SIZE25 × 24MM
Peaking Current 300mA

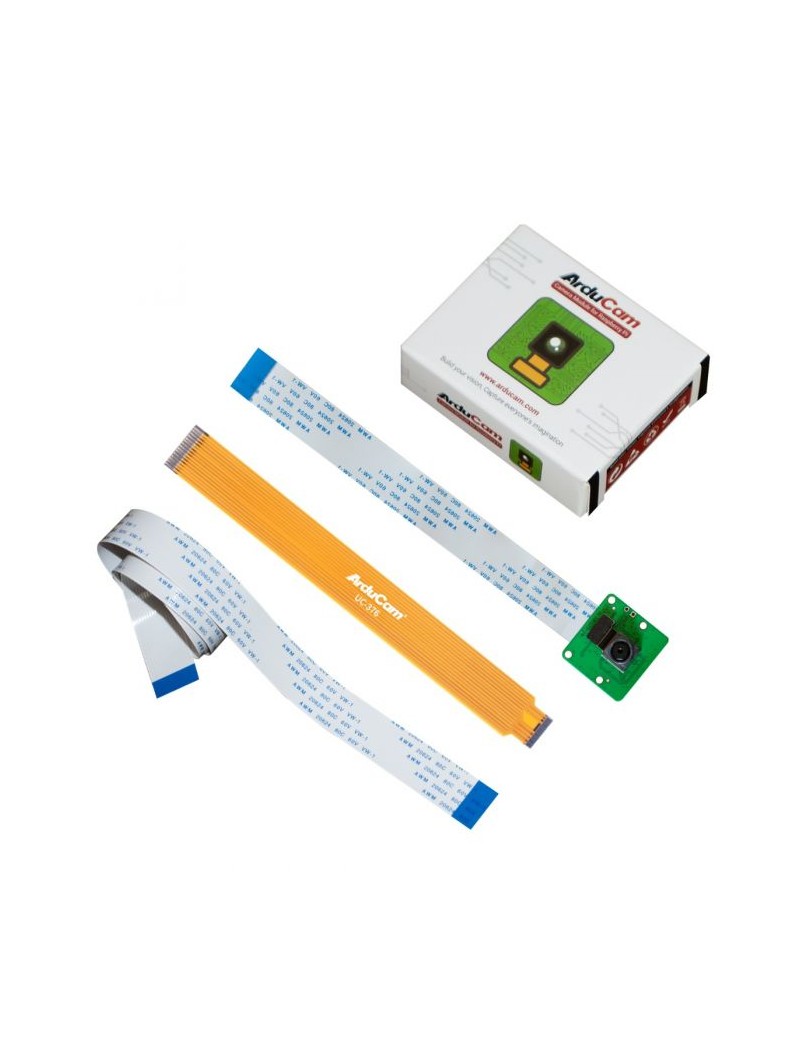

Package Including

  • 1× Arducam IMX219 Camera Module
  • 1× 15cm 22-22pin FFC Cable
  • 1× 15cm 15-22pin FPC Cable

Note

  • The package does not include any Raspberry Pi motherboard.
  • The drop-in replacement module does not include FPC cables and any camera boards. And it requires the use of the Raspberry Pi V2 camera board to function properly.
  • The lenses of all camera modules are not interchangeable. Please contact sales in advance if you need to replace them.
NOTE ON SUPPORTED RASPBERRY PI BOARDS AND OS
Platform Bookworm(rpicam) Bullseye(libcamera) Buster(raspistill)
Raspberry Pi 5 √
Raspberry Pi 4B / 3B+ / 3A+ / Zero / Zero 2 W √ √
Raspberry Pi CM3 / CM3+ / CM4
(extra carrier board required)		 √ √ √

Documentations

AC-B0390
