Item Description

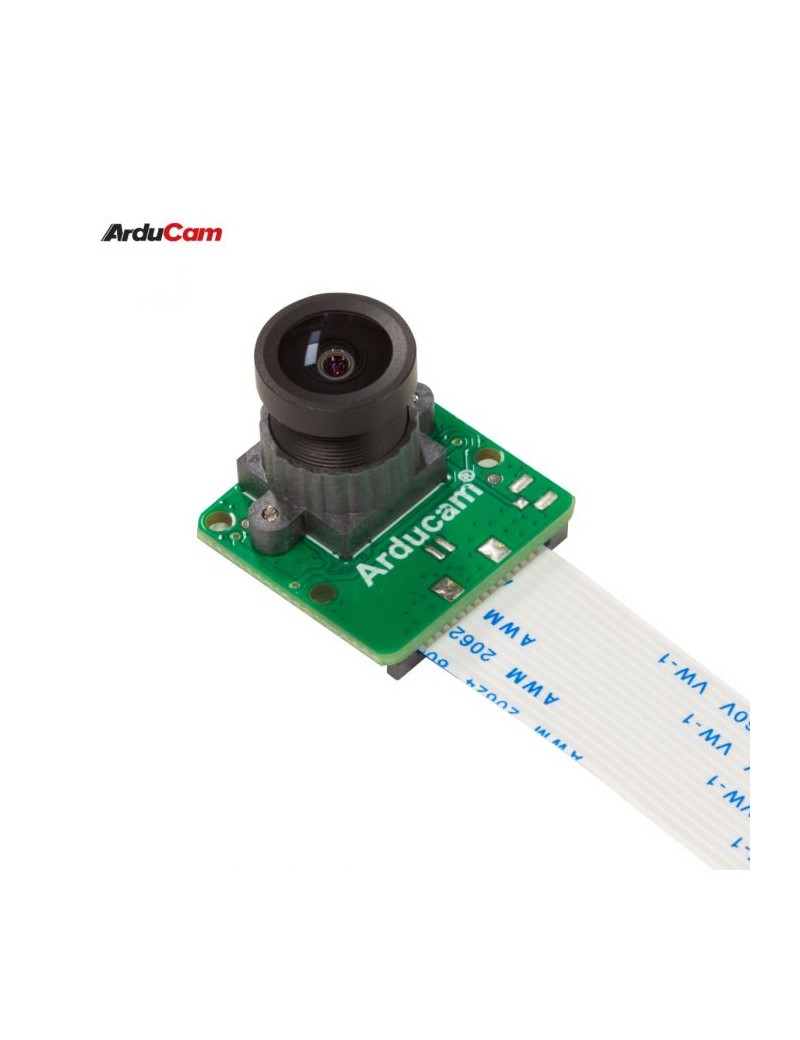

This Arducam IMX219 camera module is mainly designed for NVIDIA® Jetson Nano.

NOTE: This camera is mainly designed for the Jetson Nano. It can also be used on the Raspberry Pi Compute Module (like CM3, CM3+), but is not compatible with standard Raspberry Pi models (like Raspberry Pi 3/3B+/4).

Features

• Shutter Type: Rolling Shutter
• Color Type: Color
• IR Sensitivity: Visible light, Integral IR Filter
• Interface: MIPI
• Format: RAW Bayer
• Platform Support:  Jetson Nano

Specification

• Sensor type: IMX219
• Optical Size: 1/4 inch
• Lens spec: EFL: 2.0mm, F.NO: 2.0, View Angle: 110 Deg. (Horizontal)
• Frame Rate: 21fps@8MP, 30fps@1080p, 120fps@720p
• Interface Type: 2-Lane MIPI
• Output format: RAW10

Applications

• Unmanned Aerial Vehicles (UAVs)
• Building Drones
• Autonomous Robotic Systems
• Mobile Medical Imaging
• Intelligent Video Analytics (IVA)

Note

• This camera can be used on Raspberry Pi CM4, CM3+, CM3, and NOT compatible with Raspberry Pi 4B/3B/B+.

Documentation

• Sensor Datasheet – Sony IMX219
• Arducam MIPI Cameras for Jetson Nano
• User Guide

Package Including

• 1pcs Arducam IMX219 camera for NVIDIA Jetson Nano
• 1pcs 1.0mm pitch 15cm 15pin FPC cable

Software Links

Arducam Jetson Nano Camera Modules
