Overview

The B0359 is a new member of Arducam’s USB camera family. It’s a 3MP, UVC compliant, USB 2.0 camera. This USB camera is based on the 1/3” AR0331 image sensor and has the ability to stream images and videos seamlessly.

This webcam has a high dynamic range of up to 110dB and is widely used for difficult light conditions, such as strong light, weak light, shadows, window positions, building entrances, and many other big light contrast conditions.

You can use this completed camera bundle for many applications like automotive, artificial intelligence, security, surveillance, imaging, machine vision, access control, vision system, robotics, Stereo Vision, Smart Vision, Automation, High Dynamic Range Imaging, and Video surveillance, etc.

Features

【HD 1080P Webcam】 High-quality USB camera adopted CMOS AR0331 image sensor with max resolution 2052(H)x1536(V) for sharp image and accurate color reproduction. High frame rate: 1080P@30fps, Compression format: MJPG / YUY2/H.264;
【4mm Manual Focus Video Lens】4mm varifocal lens USB camera with IR-cut filter@650nm provides a field of view 70°(H). The minimum focusing distance is 50mm, which could capture every tiny detail for true and undistorted color images.
【HDR&WDR】 The high dynamic range up to 96dB, its ability to capture both continuous video and decent images in strong/weak light conditions.

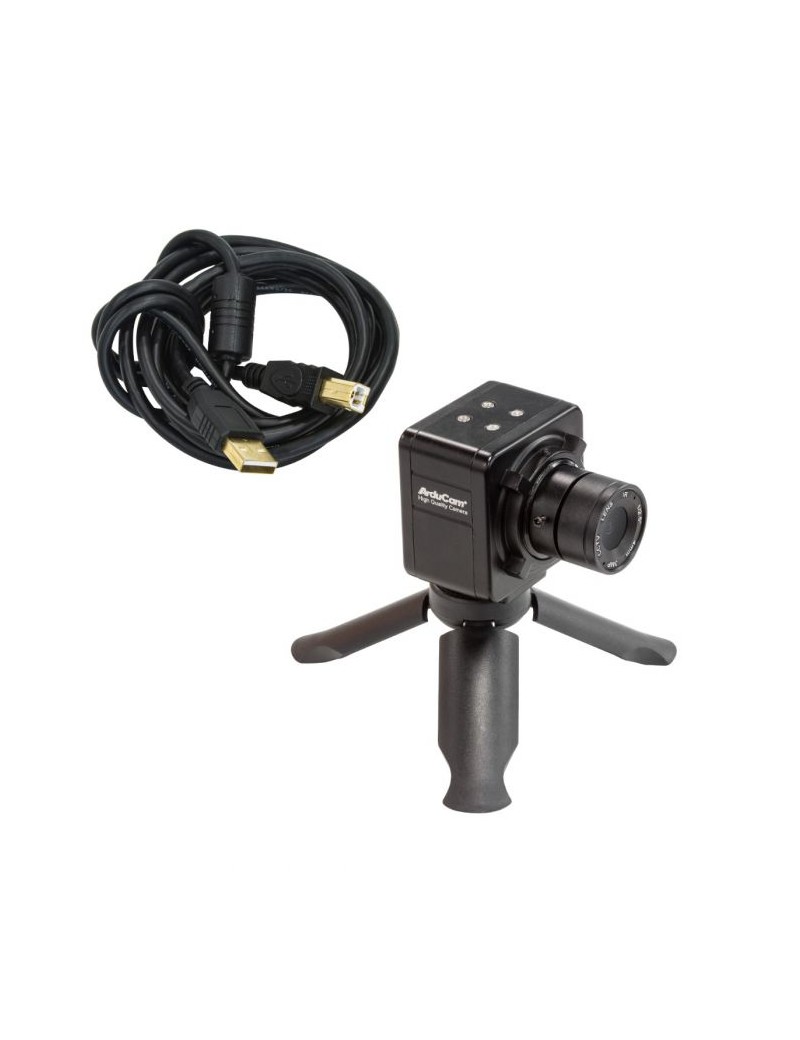

【Plug & Play】Ready to use, assembled with an aluminum case and a mini tripod, you can simply put this completed camera on your desk or any flat surface. UVC-compliant, just connect the camera to a PC computer, laptop, or Raspberry Pi with the USB cable without extra drivers to be installed.
【Applications】Highly recommended for the video surveillance system, live streaming, video conference, dashcam, and other video vision applications need high frame rates with high resolution.

Camera

Sensor: 1/3” AR0331

Resolution: 3MP 2052(H) x 1536(V)

Data Format: MJPG/YUY2/H.264

Dynamic Range: 110dB

Frame Rate: MJPG 15fps@2048 x 1536; 30fps@1920 x 1080/1280 x 720; YUY2 5fps@1920 x1080/1280 x 1024; 10fps@1280 x 720; 30fps@640 x 480; H.264 30fps@1920 x 1080/1280 x 1024/1280 x 720.

Lens

Field of View (FOV): 50°(H)

Lens Mount: CS

Focal Length: 4mm

Functionality and Compatibility

Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.

System Compatibility: Windows, Linux, Android, and Mac with UVC

Audio: Dual microphones

Power

Power Supply: USB powered 5V

Working Current: MAX 300mA

Physical

Operating Temp.: -4°F~158°F (-20°C~+70°C).

Dimension: 50mmx50mmx90mm

Cable Length: default 6.56ft (2M)
