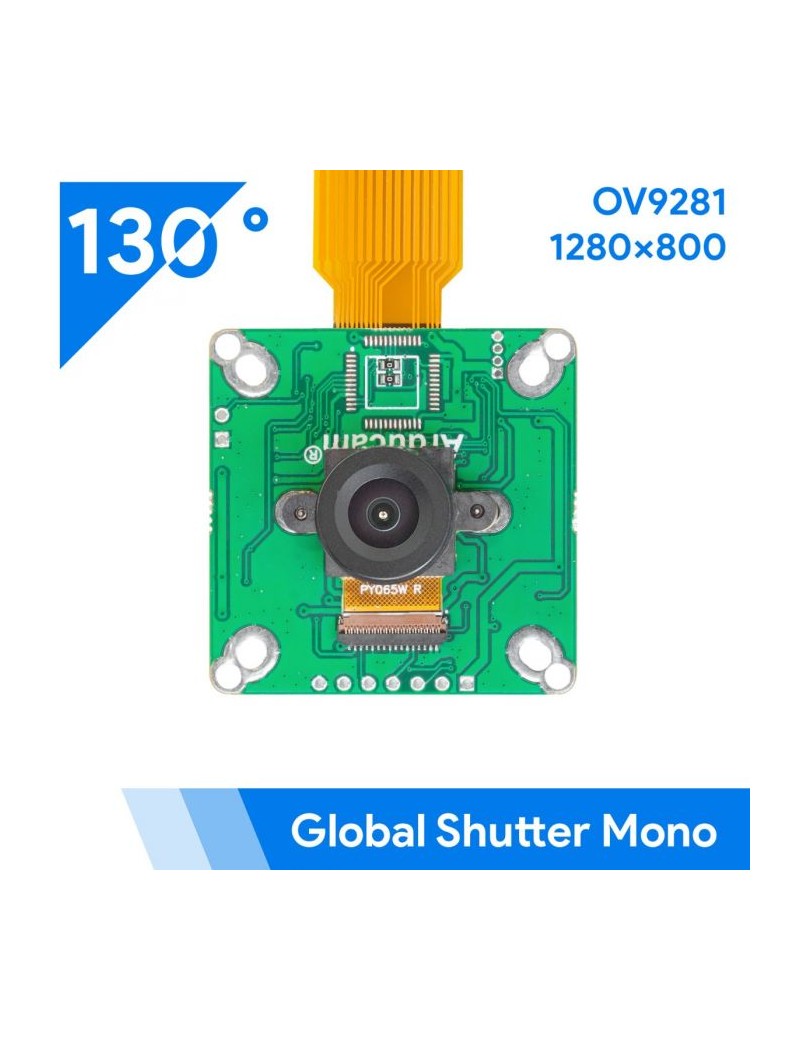

OV9281 1MP Global Shutter NoIR Mono Camera Module with 130deg M12 Mount for Raspberry Pi
Overview
The Arducam monochrome (B&W) global shutter 1280×800 resolution OV9281 camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi's CSI-2 camera interface without additional hardware.
This Arducam OV9281 global shutter camera (Rev.B) is compatible with the official V4L2 camera driver, and you can get it working easily just by enabling the overlay.
The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head, and eye tracking, and depth and motion detection.
Application
- Security
- High dynamic range imaging
- Unattended surveillance
- Stereo vision
- Machine vision
- Automation
Featrues
- Monochrome global shutter Camera Module with Stock Mount lens directly inserts to CSI slot on Raspberry Pi.
- Support Raspberry Pi 4, Pi 3/3B+/3A+, CM3/3+, Pi Zero and more.
- Supported By The Lastest Official Firmware: The Raspberry Pi has recently updated its firmware with V4L2 camera drivers, which adds support including for OV9281. Thus this OV9281 camera module is compatible with the official V4L2 camera driver, and you can get it working easily just by enabling the overlay.
Specifications
Image Sensor | Monochrome Global Shutter OV9281 |
Optical Size | 1/4” |
Resolution | 1MP 1280×800 |
Max Frame Rate | 1280×800@120fps |
Pixel Size | 3 μm x 3 μm |
Focal Length | 2.8mm |
F.NO | 2.8 |
Focus Distance | 30 cm to infinity |
Focus Type | Manual Focus |
Field of View(FOV) | 130°(D), 110°(H), 90°(V) |
IR Sensitivity | NoIR, IR sensitive |
Output Format | 8/10-bit BW RAW |
Output Interface | 2-lane MIPI serial output |
Camera Board Size | 40mm x 40mm |
Package Including
- 1 x Arducam OV9281 1MP Mono Global Shutter Camera Module with 130deg M12 Mount Lens
- 1 x 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
- 1 x 80mm 22pin 0.5mm pitch FPC cable
Documentations
- Arducam Documentation – OV9281 1MP Global Shutter Camera for Raspberry Pi
- Video –Arducam Global Shutter OV9281 MIPI Camera Demo for Raspberry Pi
- Blog – Monochrome Global Shutter Cameras on Raspberry Pi
- 3D Drawing – OV9281 1MP Global Shutter Camera for Raspberry Pi
- Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
