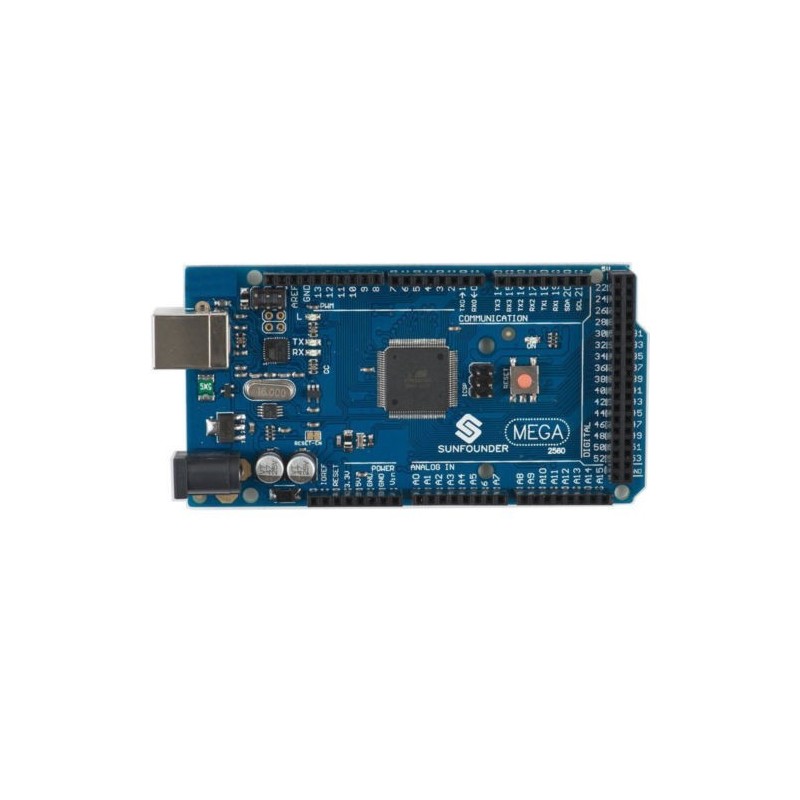

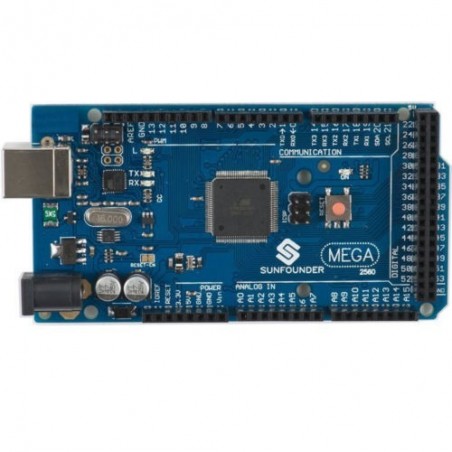

SunFounder Mega 2560 Control Board
Technical Details
The MEGA 2560 Board can be powered via the USB connection or with an external power supply. The power source is selected automatically.
The ATmega2560 has 256 KB of flash memory for storing code (of which 8 KB is used for the bootloader), 8 KB of SRAM and 4 KB of EEPROM (which can be read and written with the EEPROM library).
The MEGA 2560 Board for Arduino comes preburned with a bootloader that allows you to upload new code to it without the use of an external hardware programmer. It communicates using the original STK500 protocol (reference, C header files).
For the tutorial of installing Arduino IDE,refer to WIKI.
Specification
Input voltage - 7-12V
54 Digital I/O Pins (14 PWM outputs)
16 Analog Inputs
256k Flash Memory
16Mhz Clock Speed
Package include
1 x SunFounder MEGA 2560 R3 (Arduino-compatible)
