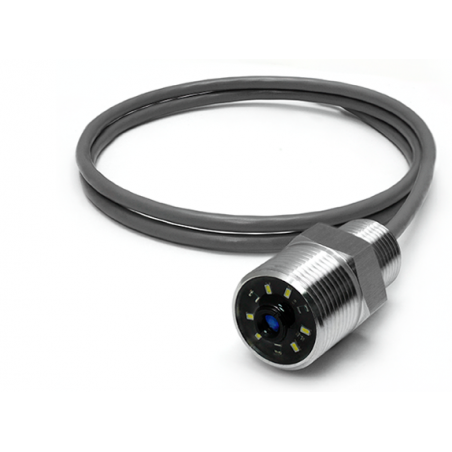

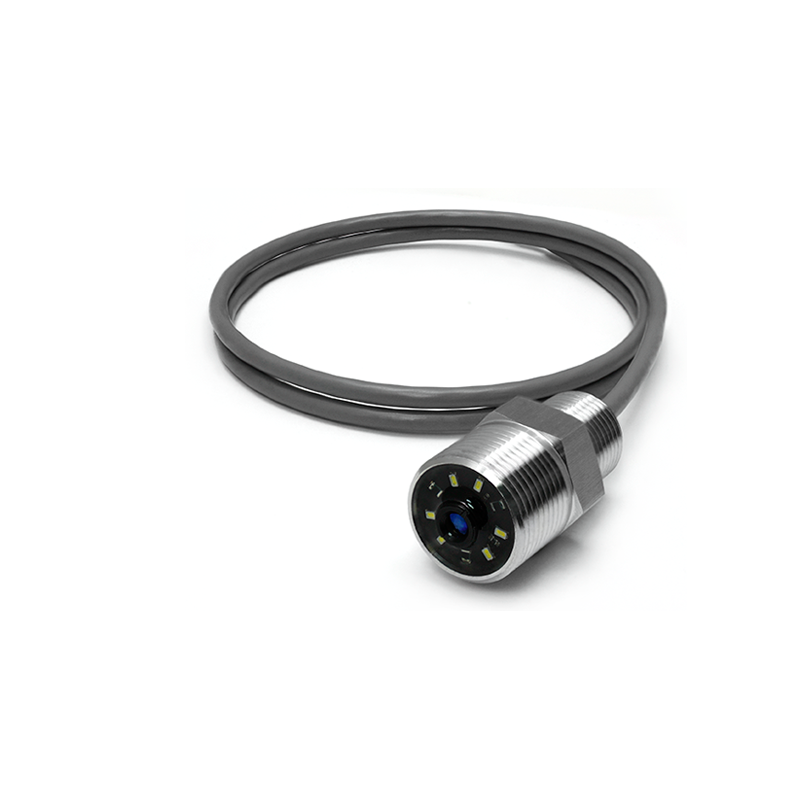

• RGB color sensor
• True 8-bit RGB format (0 - 255)
• Light intensity sensor (Lux meter)
• CIE color sensing
• Integrated proximity sensor (2 – 32 cm/ 0.7” – 12.5”)
• Automatic color matching
• Interrupt output pin on color match
• Built in white light illuminator, dimmable 0-100%
• Reads color in just 400ms
• Narrow 15° half angle sensing area
• The housing is made of 304 stainless steel
• Water proof / dust proof
• Nema 6P / IP68
• Weight 145g

Data protocol
• UART asynchronous serial connectivity
• (RX/TX voltage swing 0-VCC)

• Compatible with any microprocessor that supports UART
• 3.3V to 5.V

EZO-RGB™ Datasheet
ENV-RGB Datasheet - LEGACY
How to view RGB output on your computer

Arduino Uno Sample Code
Arduino Mega Sample Code
RoHS Certificate
