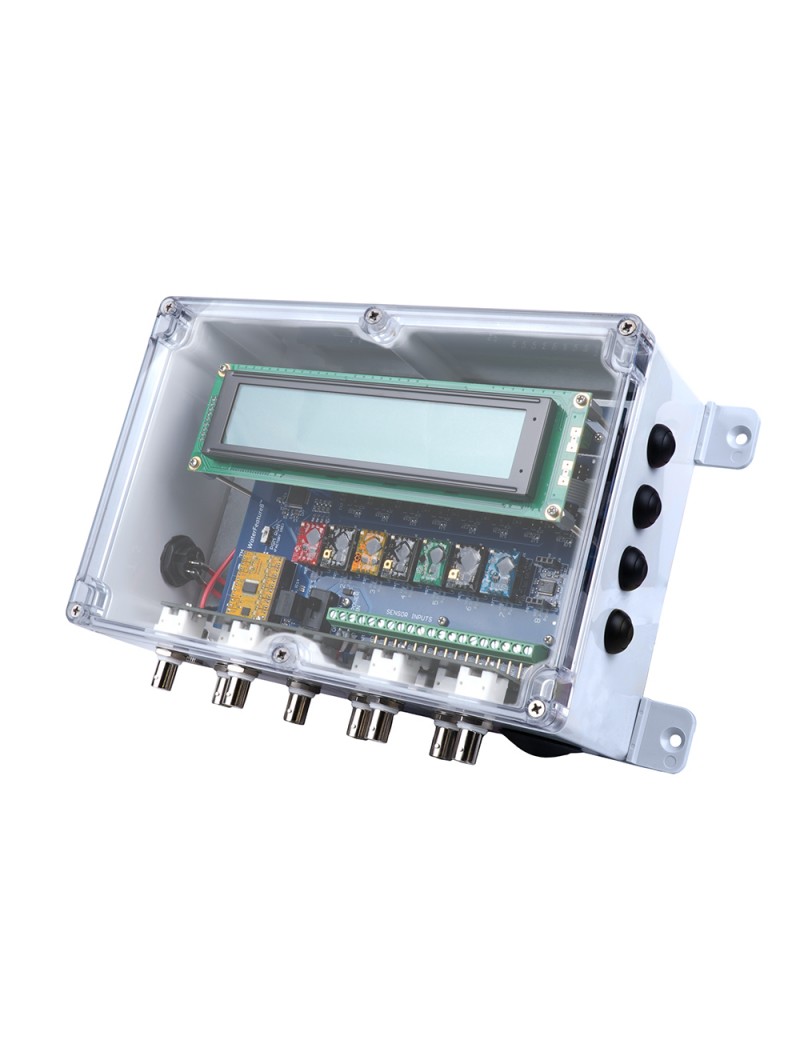

The WaterFeature8™ is a multi-parameter process monitor, capable of reading from eight probes at once. The values are easily visible through the backlit LCD screen, and the modular design allows for the operator to quickly add in any combination of probes. This system can be used for basic water quality monitoring or integrated into a fully automated process control system.

The WaterFeature8™ displays real-time values on a 4×40 character industrial LCD display. All values are displayed on the Home screen for quick review of all parameters. The menu screen for calibration and temperature compensation are simple and intuitive.

This system can be configured for Serial data output or analog 4-20mA output

Data output:
“Serial” = RS232 data communication
“4-20mA” = Analog output (hardware upgrade +$200)

Probes:
“None” = device does not come with Probes
“Fully loaded” = Device comes pre-installed with pH, D.O, E.C, ORP, and Temperature industrial probes.

Please contact us for any questions or quotes.

SPECIFICATION

Monitor up to Eight (8) different sensors at one time.

Supports: pH, ORP, DO, EC, RTD, O2, Humidity & Flow)

On-board calibration and temperature compensation

Real-time displayed values.

RS232 Serial Data output

4-20 mA output for PLC process control for each channel.

Easily integrate into your monitoring controller.

24 – 32 VDC power supply required.

DOCUMENTS:

•  WaterFeature8™ Datasheet
•  WaterFeature8™ and LCD Cutouts
•  WaterFeature8™ Brochure
•  WaterFeature8™ 3D model (*.step)
