Wi-Fi Hydroponics Kit K1.0
Write your review
608,78 €
Tasse incluse
The Wi-Fi Hydroponics Meter Kit reads pH, Conductivity, and temperature. The pH and Conductivity readings are automatically temperature compensated and uploaded to ThingSpeak, which allows for remote readings on a phone, tablet or PC. The code and instructions are available in the download section of this page.

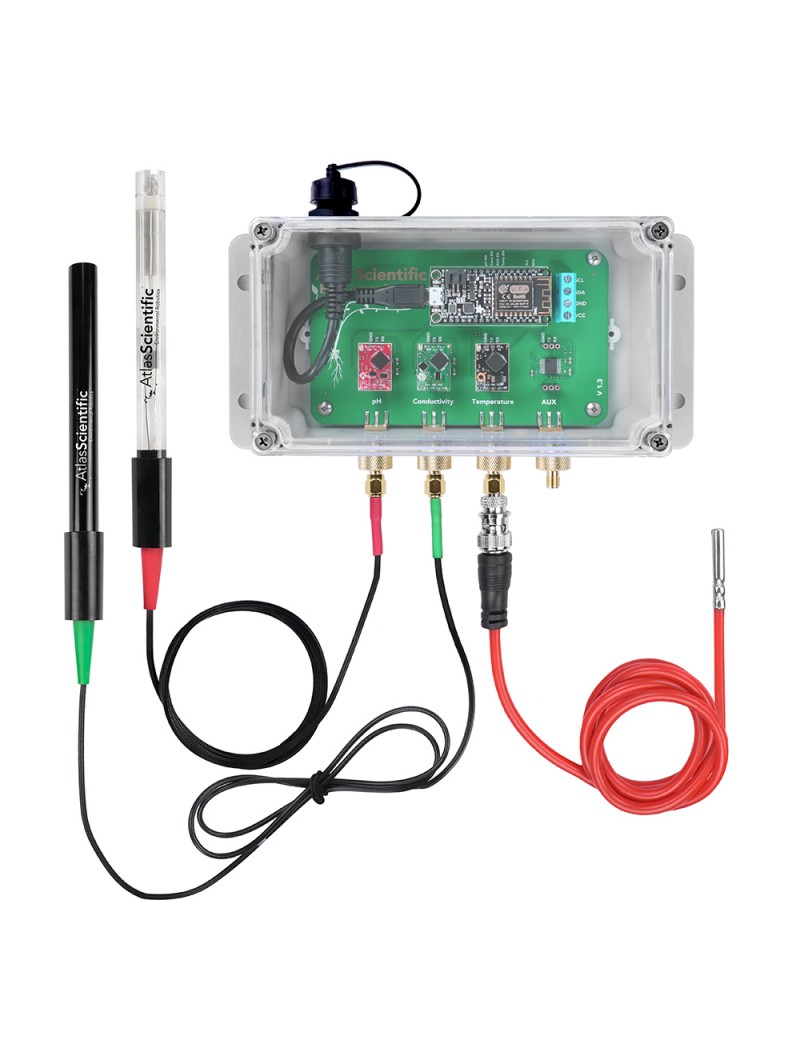

The Wi-Fi Hydroponics Meter Kit comes with:
1x Enclosure with hardware assembled within
1x EZO pH circuit
1x EZO Conductivity circuit
1x EZO RTD Temperature circuit
1x Consumer grade pH probe
1x Conductivity probe k1.0
1x PT-1000 temperature probe
3x pH calibration solutions
2x K 1.0 calibration solution
SPECIFICATION:
|
• No soldering required |
|
• No programming necessary |
|
• Automatically uploads data to ThingSpeak cloud |
|
• Access to data on phone, tablet or PC |
|
• Auto temperature compensation for pH and Conductivity |
|
• Pre-drilled / wall mountable case with clear top |
|
• pH range 0 − 14 / resolution 0.01 |
|
• Conductivity range 0 − 200K / resolution 1μS |
|
• Operating voltage : 5V |
|
• Current consumption : 310mA at 5V |
|
• Three electrically isolated slots (pH, Conductivity and AUX) |
|
• One auxiliary (AUX) slot for an additional sensor |
|
• I2C mode only |
|
• Calibration solutions included. |
DOCUMENTS:
AS-Wi-Fi-HK1
