The DSO Nano V3 is a pocket-size compatible 32bit digital storage oscilloscope. Based on ARM -M3, it’s equipped with 320*240 color display, SD card, USB port and recharging function. It’s compact, simple to operate; meets the basic demands of school lab, electric furniture repairment and electric engineering.

This is a updated and cool version of DSO Nano which features a firmware and a embedded 2 Mbyte storage chip instead of micro SD card slot. The documents of this version in detail is on this page, please refer to it.

Updates in v3

• V3 used a new firmware with user-friendly interface, easier to operate

• Upgraded firmware via virtual disk

• Added build-in 2Mbyte storage chip instead of micro SD card slot

• Black metal shell

Features

• Portable and lightweight

• Color display

• Waveform storage and playback

• 6 triggering modes

• 200Khz Analog Bandwidth

• Complete measurement markers and signal characteristics

• Built-in Signal Generator

• Accessories available

• Open Source

Specification

• Display: 2.8'' color TFT LCD

• Display Resolution: 320x240 Display Colors 65K

• Analog Broadband: 0 ~ 200kHz

• Max. Sampling Rate: 1Msps 12 bit

• Sampling Storage Depth: 4096 points

• Transverse Sensitivity: 1uS/Div~10S/Div(1-2-5 stepping)

• Vertical Sensitivity: 10mv/Div~10V/Div(x1 probe) 0.5V/Div~10V/Div(x10 probe)

• Input Resistance: >500K?

• Max. Input Voltage: 80Vpp?x1 probe?400Vpp(x10 probe)

• Coupling Mode: DC

• Triggering Mode: Auto?Normal?Single?None

• Auto Measurement: Frequency, cycle, duty, Vpp, Vram, Vavg, DC voltage; Vertical Precise Measurement Cursor; Horizontal Precise Measurement Cursor; Rising/Falling Edge Trigger; Triggering Cursor; Triggering Sensitivity Cursor; Hold/Run

• Inbuilt Test Signal: 10Hz~1MHz(1-2-5 stepping)

• Waveform Storage: build-in 2Mbyte

• PC Connection Interface: Connection through USB

• Recharging Method: Recharging through USB interface

• Dimensions:105mm x 53mm x 8mm

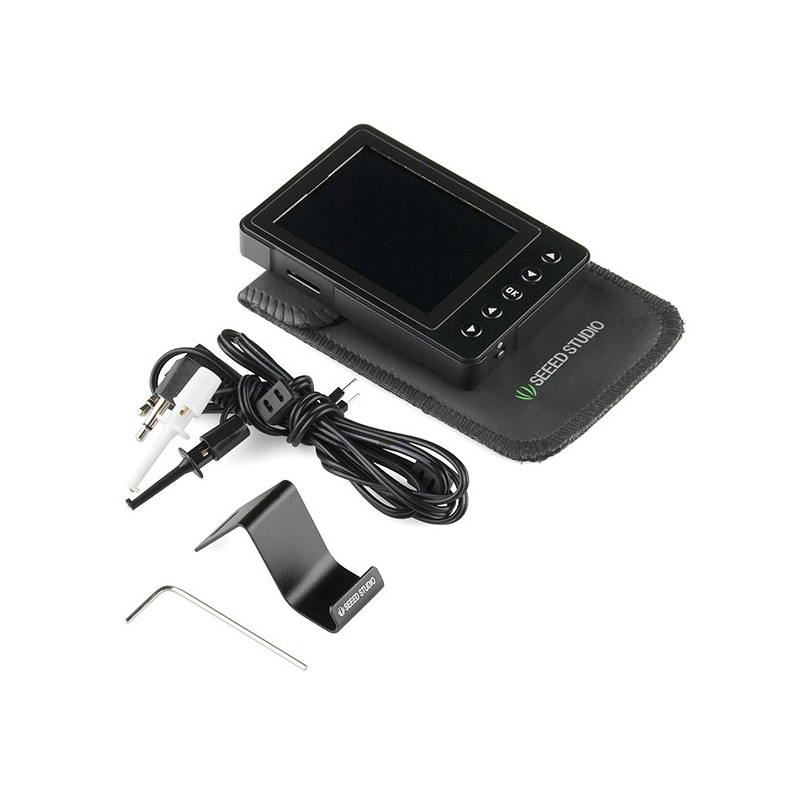

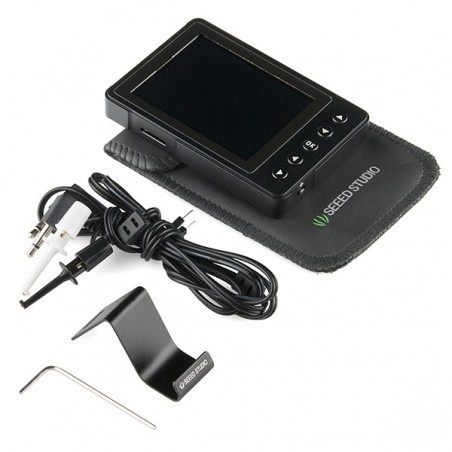

Part List

• DSO Nano x1

• Metal Stand x1

• Screw x1

• Probe cable x1

• Sack x1

Documents

• User's Manual

• Schematic Design

• Firmware

Note

For DSO Nano with SD card slot, it is not available now. If you get one from our distributers’ stock, please click here to check the document.
