UART Voice Controller Shield for XY-V17B Mini MP3 Player Module

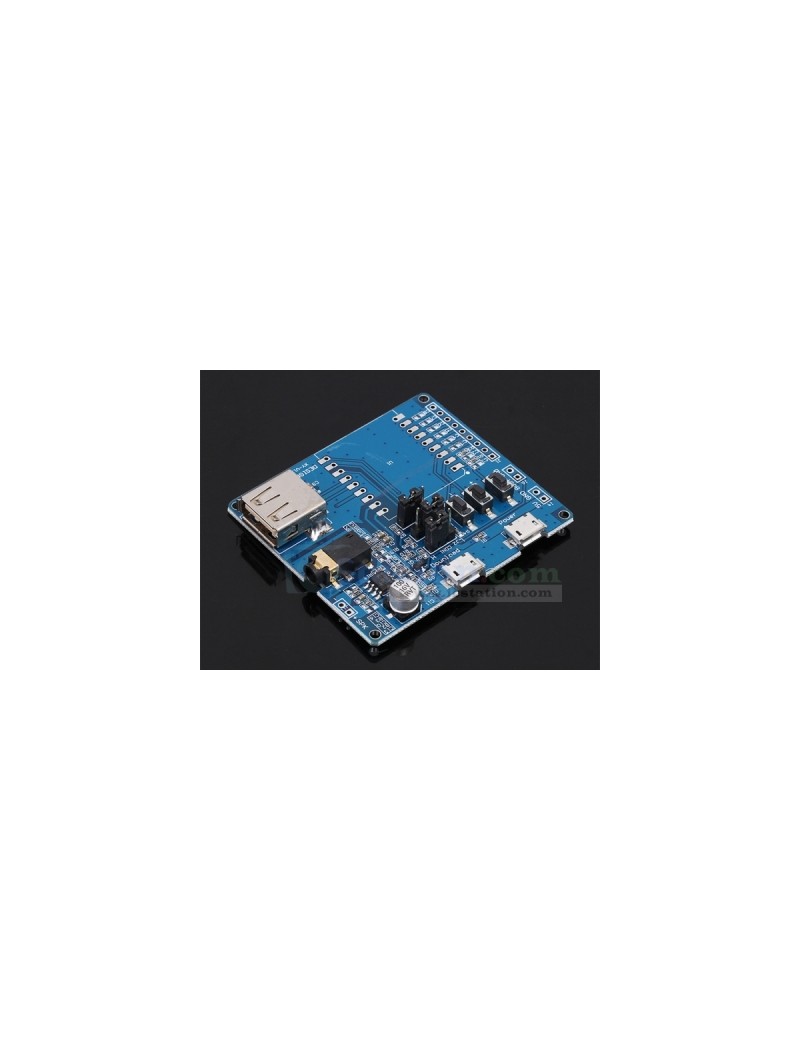

XY-V17D is a development board for our XY-V17B voice module. The development board integrates 5W Class D power amplifier module, 3.5mm audio interface, U disk interface,Micro USB download interface, button module in one module;It makes XY-V17B voice module testing, secondary development are easier and more convenient.
Features:
1>.Support MP3 and WAV decoding format.
2>.Support sampling frequency (KHz) : 8/11.025/12/16/22 05/24/32/44.1/48.
3>.24-bit DAC output, dynamic range support 90dB, SNR support 85dB.
4>.Fully support the FAT16/FAT32 file system, with the maximum support 32GB TF card and 32GB U-disk.
5>.Support UART serial port control voice broadcast function, can control playback, pause, selections, turn up and down volume and other functions, the largest selection of 65535 tracks.The baud rate is 9600 bit/s.
6>.Support IO trigger function, 8 IO ports can trigger 8 musics or 8 IO combinations to trigger 255 songs.
7>.Support One_line single bus serial port control, which can control playback, pause, selection, turn up and down volume and other functions.
8>.Support 3 configuration IO for mode selection.
Parameters:
1>.Product Name:UART Voice Controller
2>.Product Number:XY-V17D
3>.Working Voltage:DC 5V
4>.Work Temperature:-20℃~85℃
5>.Work Humidity:0%~95%RH
6>.Size:58*51*12mm
Function:
1>.It cannot be used alone, it can only be used together with XY-V17B;
2>.It combines the peripheral circuits required by XY-V17B to facilitate the debugging and use of XY-V17B;
3>.Support Micro USB download for TF card;
4>.Support U-disk and 3.5mm audio input;
5>.Built in 5W amplifier;
6>.Support IO0~IO7 external extension trigger.
Use steps:
1>.Install XY-V17B on module XY-V17D;
2>.Connect to 4ohm~8ohm speaker;(Speaker is not include in package!)
3>.Connect working voltage;
4>.Set work mode by jump cap CON1~CON3;
5>.Test by button on module;
Mode configuration and pin function:
Control Mode | Configuration Pin | I/O Function | |||||||||
CON3 | CON2 | CON1 | IO7 | IO6 | IO5 | IO4 | IO3 | IO2 | IO1 | IO0 | |
I/O Integrated Mode 0 | 0 | 0 | 0 | Key combination play, can play 2^8-1(255) Songs. | |||||||
I/O Integrated Mode 1 | 0 | 0 | 1 | Level combination play, can play 2^8-1(255) Songs. | |||||||
I/O Independent Mode 0 | 0 | 1 | 0 | Music 8 | Music 7 | Music 6 | Music 5 | Music 4 | Music 3 | Music 2 | Music 1 |
I/O Independent Mode 1 | 0 | 1 | 1 | Music 8 | Music 7 | Music 6 | Music 5 | Music 4 | Music 3 | Music 2 | Music 1 |
UART Mode | 1 | 0 | 0 | RXD | TXD | ||||||
One-Line Mode | 1 | 0 | 0 | TXD | |||||||
Standard MP3 Mode | 1 | 0 | 1 | RPT | EQ | P/P/MODE | PREV/V- | NEXT/V+ |
Note:
1>. "key combination play" : Return to the original high level after the corresponding level from I/O0-I/O7 output, similar to the key triggered once.Similar instantaneous switch.
2>. "Level combination play" :The trigger signal remains the same, similar to a self-locking switch.
3>.The difference between “I/O Integrated/Independent Mode 0” and “I/O Integrated/Independent Mode 1” :Mode 0 will continue playing the current song to the end after release level .Mode 1 will stop playing immediately after release level.
Mode operation instruction:
1>. I/O integrated mode 0(Key combination playing).
It will stop playing current song to the end after I/O0-7 release input signal(return to high) at 'I/O Integrated Mode';It will playing new song when get new input signal during playing and stop after end of song;It will play repeatedly if keep input;Busy pin will output valid signal(High) during playing.
Note: the song must be named for 5bit.
Music control:
IO7 | IO6 | IO5 | IO4 | IO3 | IO2 | IO1 | IO0 | Song |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 0 | 00001.mp3 |
1 | 1 | 1 | 1 | 1 | 1 | 0 | 1 | 00002.mp3 |
1 | 1 | 1 | 1 | 1 | 1 | 0 | 0 | 00003.mp3 |
1 | 1 | 1 | 1 | 1 | 0 | 1 | 1 | 00004.mp3 |
1 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | 00005.mp3 |
1 | 1 | 1 | 1 | 1 | 0 | 0 | 1 | 00006.mp3 |
1 | 1 | 1 | 1 | 1 | 0 | 0 | 0 | 00007.mp3 |
…… | …… | …… | …… | …… | …… | …… | …… | …… |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 00255.mp3 |
2>. I/O integrated mode 1(Level combination playing)
It will keep playing current song when get trigger signal.It will stop playing immediately after release level.Busy pin will output valid signal(High) during playing.Note: the song must be named for 5bit.
Music control:
IO7 | IO6 | IO5 | IO4 | IO3 | IO2 | IO1 | IO0 | Song |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 0 | 00001.mp3 |
1 | 1 | 1 | 1 | 1 | 1 | 0 | 1 | 00002.mp3 |
1 | 1 | 1 | 1 | 1 | 1 | 0 | 0 | 00003.mp3 |
1 | 1 | 1 | 1 | 1 | 0 | 1 | 1 | 00004.mp3 |
1 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | 00005.mp3 |
1 | 1 | 1 | 1 | 1 | 0 | 0 | 1 | 00006.mp3 |
1 | 1 | 1 | 1 | 1 | 0 | 0 | 0 | 00007.mp3 |
…… | …… | …… | …… | …… | …… | …… | …… | …… |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 00255.mp3 |
3>. I/O independent mode 0((Key independent controlling)
I/O0-I/O7 independently controls 8 songs.It will stop playing current song to the end after I/O0-7 release input signal(return to high);It will playing new song when get new input signal during playing and stop after end of song;It will play repeatedly if keep input;Busy pin will output valid signal(High) during playing.
Note: the song must be named for 5bit.
IO7 | IO6 | IO5 | IO4 | IO3 | IO2 | IO1 | IO0 | Song |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 0 | 00001.mp3 |
1 | 1 | 1 | 1 | 1 | 1 | 0 | 1 | 00002.mp3 |
1 | 1 | 1 | 1 | 1 | 0 | 1 | 1 | 00003.mp3 |
1 | 1 | 1 | 1 | 0 | 1 | 1 | 1 | 00004.mp3 |
1 | 1 | 1 | 0 | 1 | 1 | 1 | 1 | 00005.mp3 |
1 | 1 | 0 | 1 | 1 | 1 | 1 | 1 | 00006.mp3 |
1 | 0 | 1 | 1 | 1 | 1 | 1 | 1 | 00007.mp3 |
0 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 00008.mp3 |
AA 12 02 S.N.H S.N.L SM |
4>. One_line Single bus serial port mode
Waveform:
Command format:
Command(HEX) | Function | Note |
00 | No. 0 | The number 0-9 has corresponding functions, such as selecting music, setting the volume, setting EQ, setting cycle mode, setting channel, setting the repertoire, and sending the digital at first and then send function command. |
01 | No. 1 | |
02 | No. 2 | |
03 | No. 3 | |
04 | No. 4 | |
05 | No. 5 | |
06 | No. 6 | |
07 | No. 7 | |
08 | No. 8 | |
09 | No. 9 | |
0A | Number reset | Sent the number of Cleared |
0B | Confirm choosing song | Cooperate with Numbers to achieve. |
0C | Volume setting | |
0D | EQ setting | |
0E | Loop mode setting | |
0F | Channel setting | |
10 | Interplay song setting | |
11 | Play | |
12 | Pause | |
13 | Stop | |
14 | Previous | |
15 | Previous directory | |
16 | Next directory | |
17 | SD card selection | |
18 | SD card selection | |
19 | U disk selection | |
1A | FLASH selection | |
1B | System sleep | |
1C | Stop Playing |
Note: "selection" and "interplay" are played according to the track name, for example, the track is named "00123. Mp3", and the selected data is "0x01", "0x02" "0x03" "0x0B", and the selection is completed.
Package:
1>.1pcs XY-V17D UART Voice Controller;
