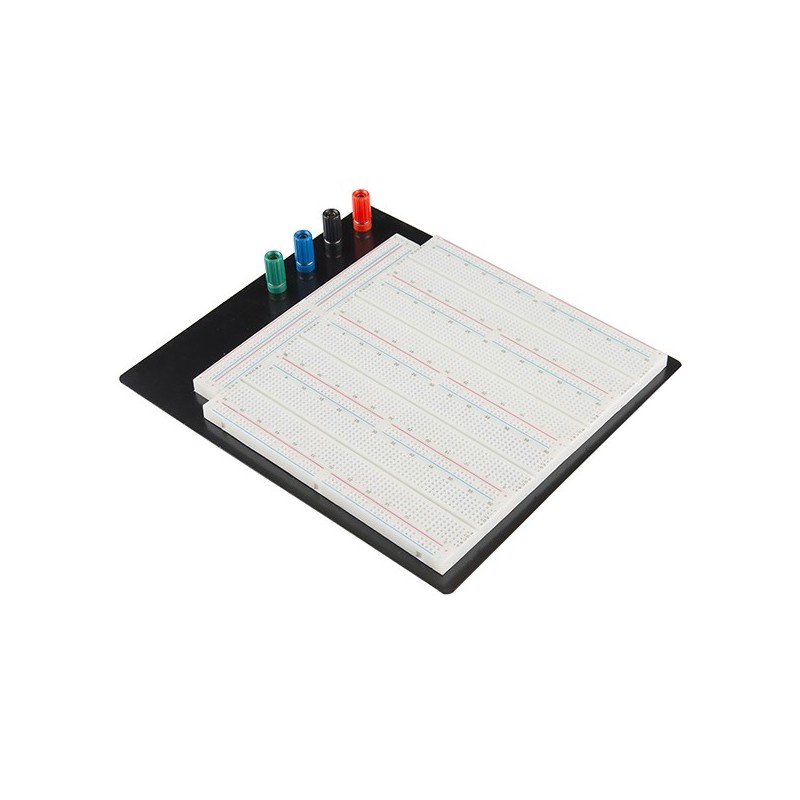

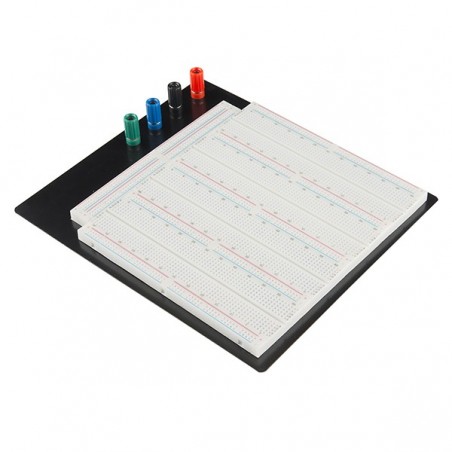

This is one giant solderless breadboard! It has 7 power buses, 40 columns, and 63 rows - with a total of 3220 tie in points. All pins are spaced by a standard 0.1". The two sets of five columns are separated by about 0.3", perfect for straddling a DIP package over. The board accepts wire sizes in the range of 20-29AWG.

This board also has 4 binding posts, a black aluminum plate backing, and 4 rubber standoffs to keep your breadboard suspended safely on your workstation.

Dimensions: 9.25 x 8.0 x 1.25" (234.95 x 203.2 x 31.75mm)
