Features

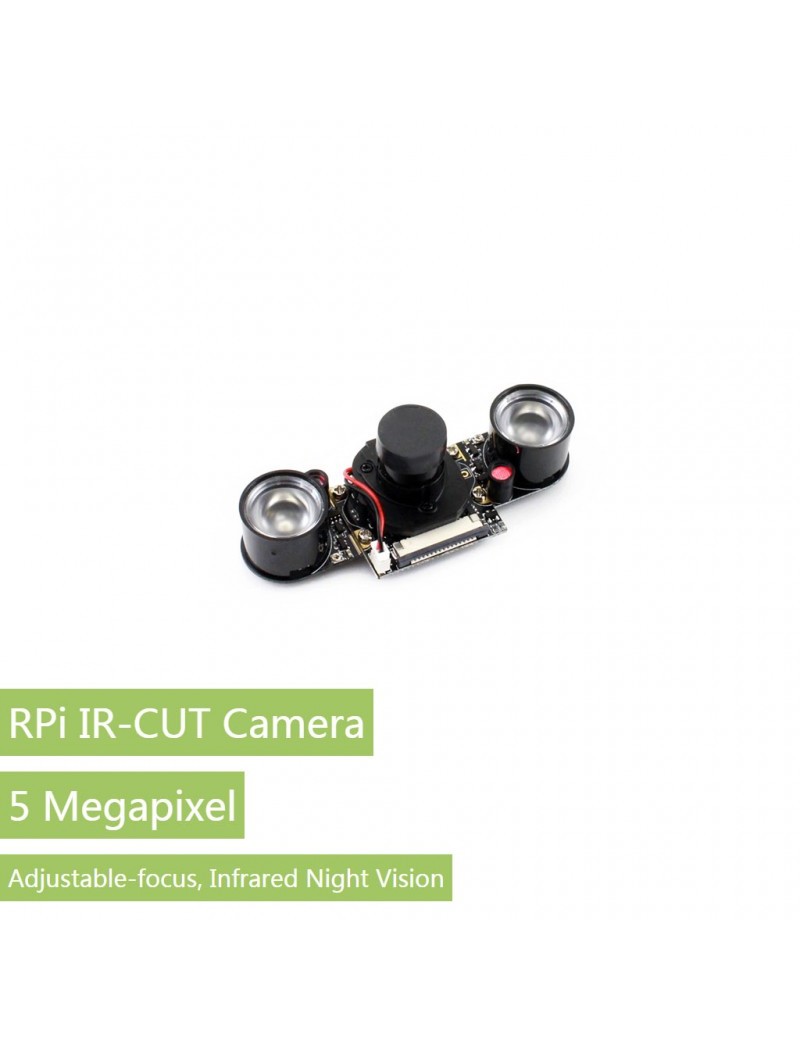

• Raspberry Pi Camera, supports all revisions of the Pi
• Embedded removable IR-CUT filter, eliminating color distortion in the daylight
• Comes with infrared LED, supports night vision
• 5 megapixel OV5647 sensor
• Adjustable focus distance
• Camera specifications
  • CCD size : 1/4inch
  • Aperture (F) : 1.8
  • Focal Length : 3.6mm
  • Angle of View (diagonal) : 75.7 degree
  • Sensor best resolution : 1080p
• 4 screw holes
  • Used for attachment
  • Provides 3.3V power output
  • Supports connecting infrared LED and/or fill flash LED
• Dimension: 31mm × 32mm

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Development Resources

Wiki : www.waveshare.com/wiki/RPi_IR-CUT_Camera

Weight: 0.067 kg
