Screw Terminal 3.5mm Pitch(2-Pin)

0,83 €
Tasse incluse

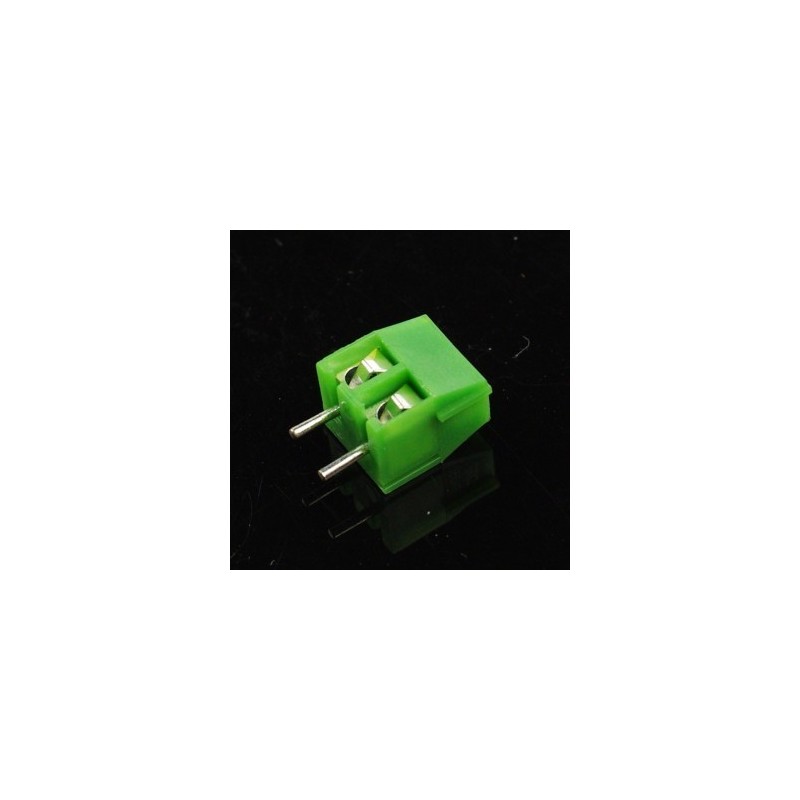

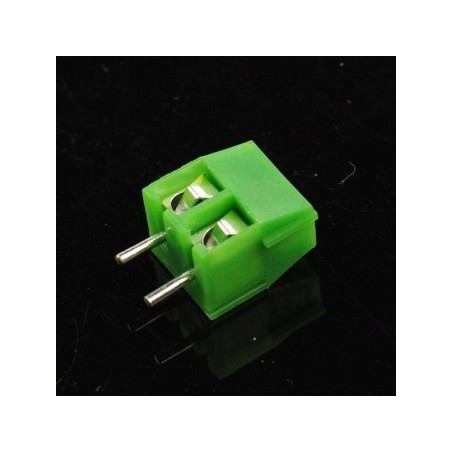

Screw Terminal 3.5mm Pitch(2-Pin)

Quantità

This is a high quality 2-pin screw terminal. Very useful when you want to connect 24-18AWG wires to your circuits.

SPECIFICATION

  • Rated voltage: 300V
  • Rated current:  10A
  • Contact resistence: 20mΩ
  • Insulation resistence: 5000Ω/1000V
  • Voltage tolernce: AC2000V/1Min
  • Wire diameter:24-18AWG
  • Tempearture range: -30°C+120°C
  • Instant temperature: +250°C 5Min
  • Torque 0.2Nm (1.7lb.in)
  • Strip length: 4.5-5mm(0.18"-0.2")

DOCUMENTS

DFR-FIT0181
