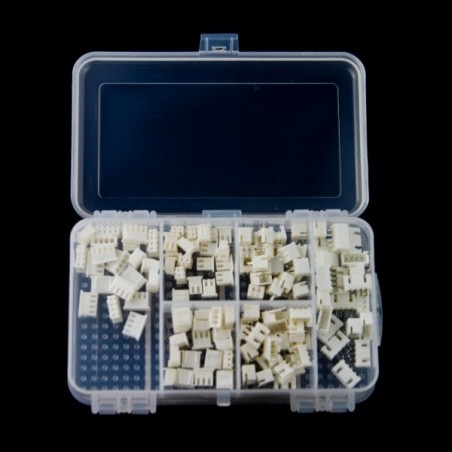

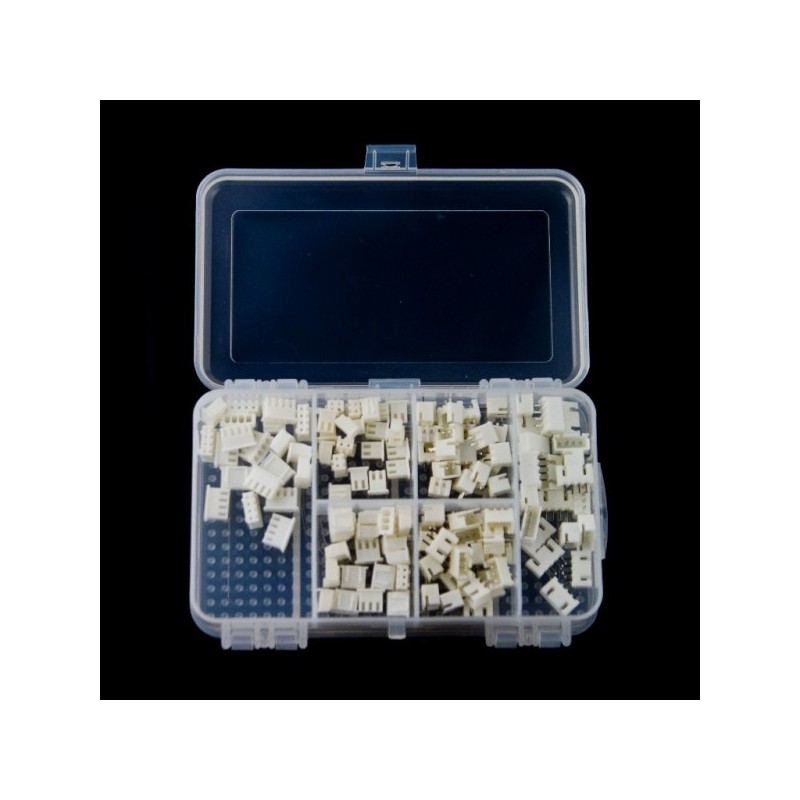

This kit includes JST XHP-2, XHP-3 and XHP-4 housing (20 units each), through-hole type shrouded header (20 units each) and crimp contact (100 units).

SPECIFICATION

• Current rating:3A AC,DC (AWG #22)
• Voltage rating:250V AC,DC
• Temperature range：-25℃ to +85℃（including temperature rise in applying electrical current）
• Contact resistance：Initial value/10m Ω max.
• After environmental testing/20m Ω max.
• Insulation resistance：1000M Ω min.
• Withstanding voltage：1000V AC/minute
• Applicable wire：AWG#30~#22
• Applicable PC board thickness：1.6mm (0.06")

SHIPPING LIST

• JST 2.54mm (0.1") XHP-2 housing  x20
• JST 2.54mm (0.1") XHP-3 housing  x20
• JST 2.54mm (0.1") XHP-4 housing  x20
• JST 2.54mm (0.1") B2B-XH-Athrough-hole type shrouded header  x20
• JST 2.54mm (0.1") B3B-XH-Athrough-hole type shrouded header  x20
• JST 2.54mm (0.1") B4B-XH-Athrough-hole type shrouded header  x20
• crimp contact x100
• Two-sided Compartment Parts Box  x1
