A4988 Stepper Motor Driver Carrier (Header Pins Soldered)
Write your review
9,76 €
Tasse incluse

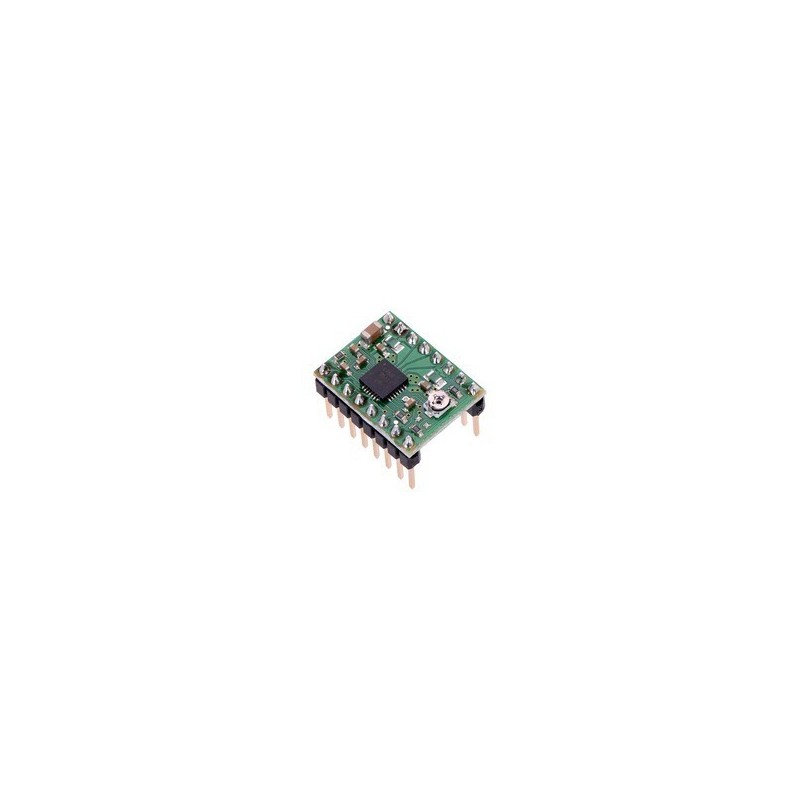

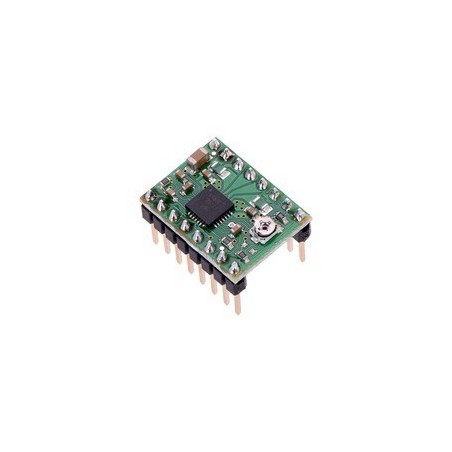

A4988 Stepper Motor Driver Carrier (Header Pins Soldered)
This version of our A4988 Stepper Motor Driver Carrier ships with male header pins installed, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. Please see the A4988 Stepper Motor Driver Carrier product page for more information about the driver.
Dimensions
| Size: | 0.6? × 0.8? |
|---|---|
| Weight: | 2.4 g |
General specifications
| Minimum operating voltage: | 8 V |
|---|---|
| Maximum operating voltage: | 35 V |
| Continuous current per phase: | 1 A1 |
| Maximum current per phase: | 2 A2 |
| Minimum logic voltage: | 3 V |
| Maximum logic voltage: | 5.5 V |
| Microstep resolutions: | full, 1/2, 1/4, 1/8, and 1/16 |
| Reverse voltage protection?: | N |
| Bulk packaged: | N |
| Header pins soldered: | Y |
Notes:
PO-2980
