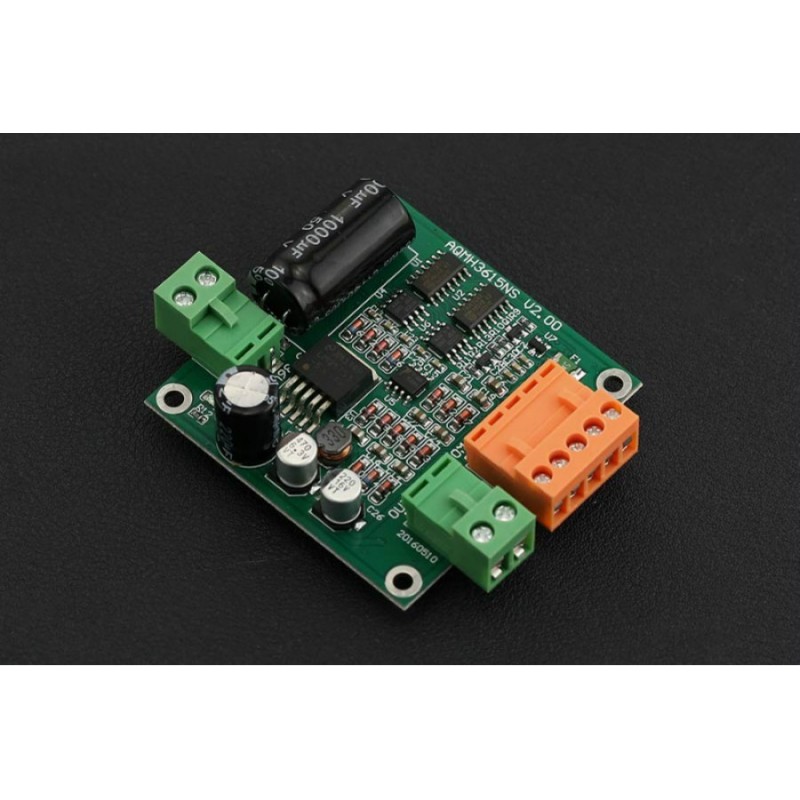

This is an ultra small size DC motor driver for room limited projects, while the impressive IC - LM2575 could provide a powerful way to drive 36V@15A motors. Also its UVLO (Under Voltage Latch-Out) feature provides a safe guard for your system. Besides all, it is very considerate to own an 5V output for Arduino or any other devices, and its interface is ESD (electro-static discharge) protection.

SPECIFICATION

• Voltage supply: DC 12 ~ 36 V
• Voltage supply limit: 6.5 ~ 40 V
• Control signal Level (Compatible 3.3V/5V)
  • High: DC 2.0 ~ 5.5 V
  • Low: DC0 ~ 0.8 V
• Maximum continuous operating current:
  • 12A (no heat sink)
  • 15A (with simple heat sink)
  • 20A (with Thick Heat Sink/ Cooling System)
• Peak current: 110 A
• Speed control: PWM
• Minimum valid Pulse Width: 200 ns
• Maximum Output Current @5V: 500 mA
• Working Temperature: -25 ~ 85 °C
• Mounting Hole: M3
• Dimension (Length * Width * Height): 55 * 55 * 20 (mm)/ 2.165 * 2.165 * 0.787 (in)
• Weight: 42g

DOCUMENTS

• Product WIKI

SHIPPING LIST

• 15A Single DC Motor Driver x1
