L9110S DC Stepper Motor Driver H-Bridge

4,27 €
Tasse incluse

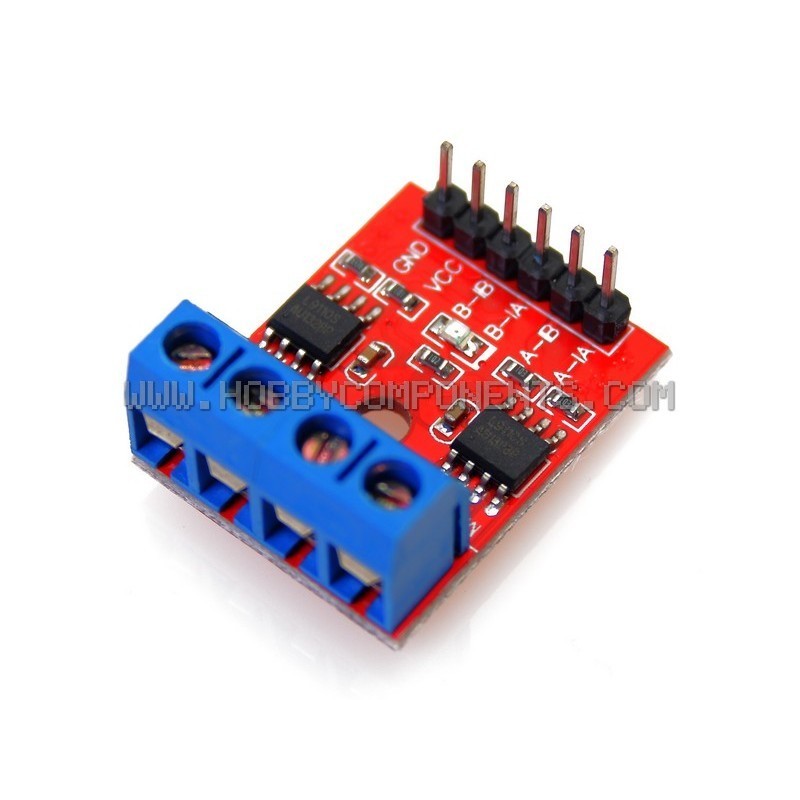

L9110S DC Stepper Motor Driver H-Bridge

Quantità

A very compact dual channel H-bridge motor driver module. The module incorporates two L9110S H-bridge driver IC's to allow either one stepper or two DC motors to be independently controlled. The module can accept a supply voltage between 2.5 to 12V allowing for motors within this supply range to be controlled safely from a standard microcontroller. Maximum drive current is 800mA. 0.1" pitch header pins allow for direct connection to a microcontoller such as an Arduino requiring just two digital pins per DC motor for control in both directions. Screw terminal blocks provide convenient connection to the motors(s).



- Dual L9110S chipset motor driver

- Input voltage: 2.5V~12V
- Current: 800mA
- Can drive two DC motors, and a 4-wire 2-phase stepper motor




HC-HCMODU0033
