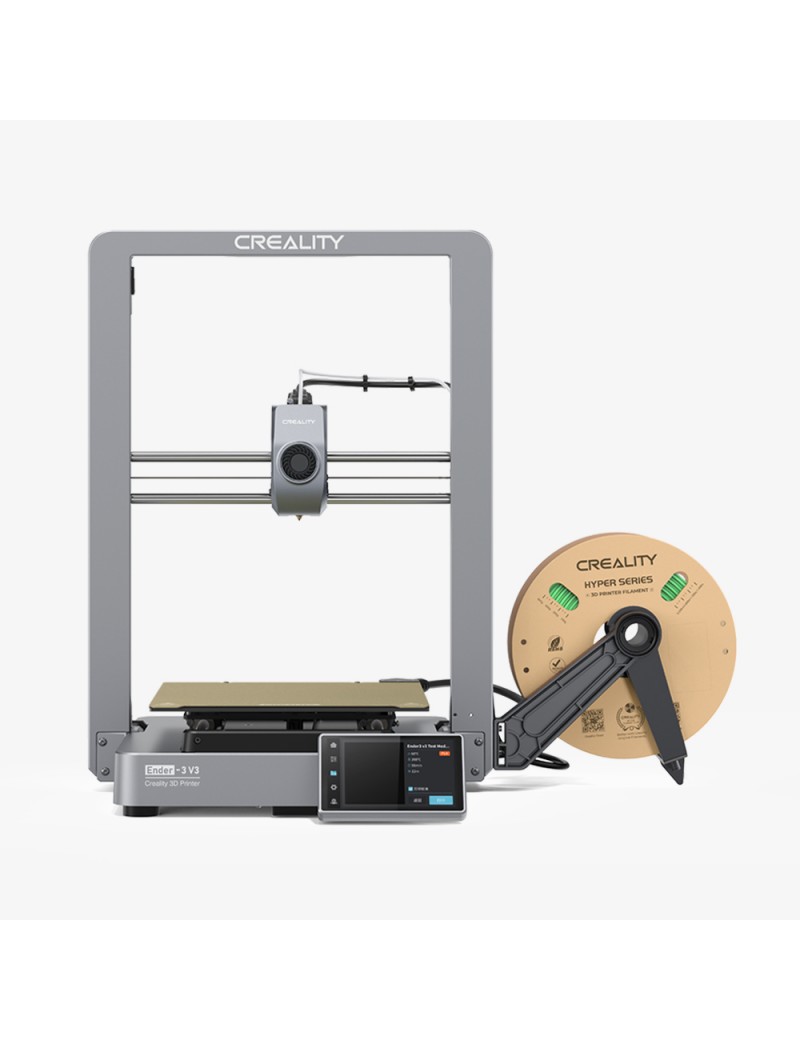

Creality Ender-3 V3 is an updated version of the popular Ender-3 3D printer from Creality. This budget-friendly desktop 3D printer offers a fast and stable printing experience, making it ideal for both beginners and experienced users.

Highlights

• CoreXZ for 600mm/s Printing Speed
• Build Volume 220 x 220 x 250mm
• Stable Metal Build with Die-cast Parts
• Integrated Tri-metal Nozzle, Quick to Swap
• Two Mighty Fans for Instant Cooling
• Auto Calibration for Leveling and More

  TECHNICAL SPECIFICATIONS
  Construction an Technical Details
  Usable Nozzle Type	K1
  Usable Filament Diameter	1.75 mm
  Max Nozzle Temperature	300 ºC
  Open Filament System	Yes
  Extruder Type	Direct drive
  Recommended Printing Speed Max	600 mm/s (
  Build Area	220 mm x 220 mm x 250 mm
  Build Plate Temp Max	110 ºC
  Build Plate Surface	Adhesive sheet
  Build Plate Material	Flexible Steel Plate
  Build Plate Attachment	magnetic
  Build Plate Leveling System	automatic
  Build Chamber During Process	Open
  Build Chamber Heated	No
  Filament Chamber Closed	No
  Extruder Number Of	1
  Installation Space / Requirements
  Total Mass Overall Dimensions	358 mm x 374 mm x 498 mm
  Total Weight	7.83 kg
  Max Power Consumption	350 W
  Voltage	AC: 100 V240 V (50-60 Hz)
  Equipment
  Emergency Shutdown	No
  Hepa Filter	No
  Door Sensor	No
  Door Lock During Print	No
  Filament Runout Sensor	Yes
  Filament Clogging Sensor	No
  Power Loss Fail Safe	Yes
  Touch Screen	Yes
  Connection
  SD Card	No
  USB Port	Yes
  Ethernet Port	No
  WLAN	Yes
  Cloud Control	Yes
  Accuracy
  Layer Height	0.1 - 0.35 mm
  Resolution	0.2 mm
  Shipping
  Shipping Box	541 mm x 418 mm x 245 mm



  An Epic Leap of Efficiency

  Ender-3 V3 can print 12 times faster than a regular i3-style 3D printer,a new benchmark for bed slingers.The motion system is much lighter and faster with the X and Z motors attached to the base. X and Z-axis are rigged together as one, allowing two high-torque motors to work in unison for quick response. And, Ender-3 V3 prints faster and better with Creality Hyper PLA filaments.

  Max Printing Speed: 600mm/s

  Max Acceleration: 20000mm/s2



  XZ Belt Tensioning, Fully Automated

  The XZ timing belts of Ender-3 V3 are tensioned automatically. Belt slips or jams become a thing of the past.

  Accurate Z-axis, Less Wobbling

  Thanks to the precise linear rods and timing belts, the Z-axis can position more accurately than ever. It means minimal Z-banding in your 3D prints.



  Top-notch Direct Drive Extruder

  The direct extruder kit is enhanced by a bolster spring and a ball plunger formore than 1000h clog-free extrusion. The nozzle and heatbreak are unified as one to block heat creep and ensure easyswap. Meanwhile, the nozzle is tipped with hardened steel to confidently handle carbon high-strength engineeringfilaments. Also, a 60W ceramic heater encircles the hotend, able to fully melt ABS, PETG, PLA-CF and other high-tempfilaments on the fly.

  Structure of the New Extruder

  • Side spring, bolstering the grip of extruding gears.
  • Ball plunger, locking the extruder lever in place.
  • Powder metallurgy lever, hard to deform, keeping the extrusion force.



  60W Hotend Heater, Delivering Full Power

  A powerful ceramic heater surrounds the hotend. It can fully melt ABS, PETG and other high-temp filaments on the fly.

  Tri-metal "Unicorn" Nozzle, Quick to Swap

  The durable steel-tipped copper nozzle is integrated with a titanium alloy heat break. It blocks heat creep and can be swapped super easily.



  Aesthetics Integrated with Stability

  The gantry and base are each a single aluminium alloy piece made by integrated die-casting. With fewer bolts and seams, Ender-3 V3 is incredibly solid and stable. The edges and corners are softened with minor curves, so that Ender-3 V3 looks more integral and elegant.

  Two Fans for Instant Model Cooling

  Two fans, front and back on the printhead, cool the freshly printed section rapidly and evenly. Gone with the wind is any drooping, warping, or stringing. Moreover, dynamic balancing is adopted for printhead fans for reduced vibrations.



  More Features with Ender-3 V3:

  • Quick Assembly: Ender-3 V3 comes to youin highly pre-assembled modules. Even a first-time 3D printer user can put it together within 10 minutes.
  • Auto Calibration: Give it a tap and walk away. The auto calibration gets everything ready for you. No need to pull a paper or turn any screws.
  • HD Touch Screen: A 4.3" screen gives seamless touch response. With HD resolution, it displays temperatures levelling process, and model preview vividly by motion graphics.
  • Flexible Textured PEI Plate: The PEI coating makes it sticky to models printed in a variety of materials. The spring steel base allows you to release models with a slight bend.



  Creality Ender-3 V3
