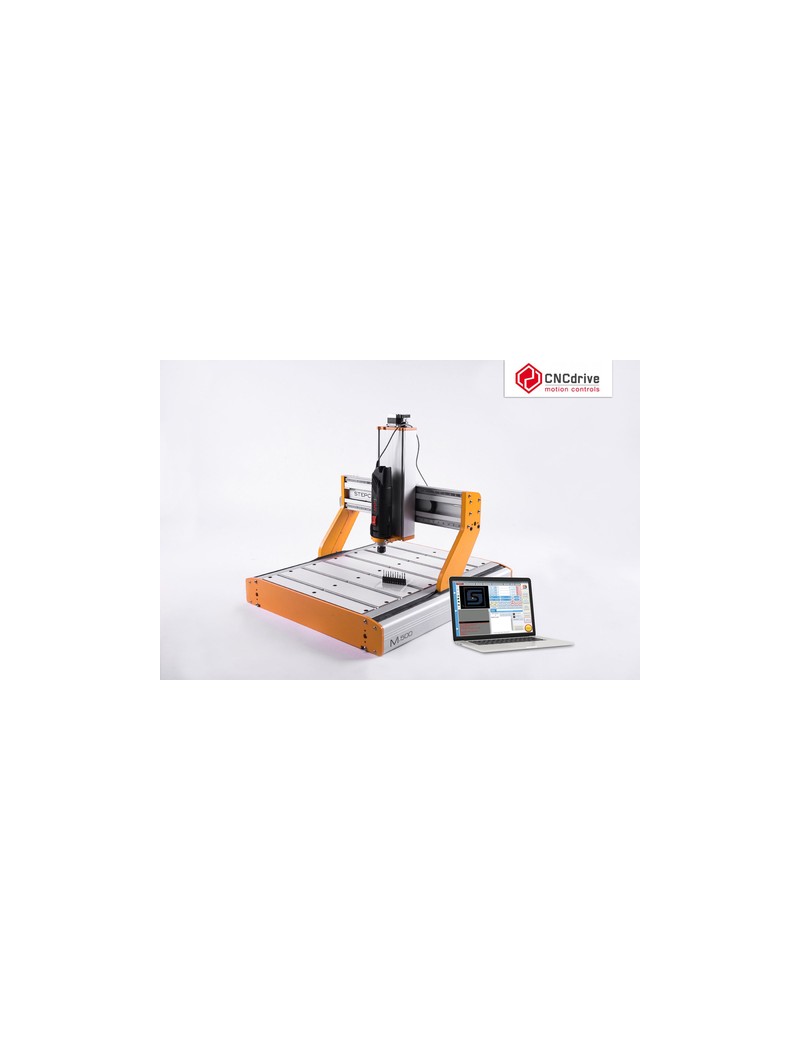

More than a standard CNC machine! From Freestyle MillingTM to two different machine table heights, the STEPCRAFT M-Series offers features never seen before. This makes the STEPCRAFTM-Series the most mobile and versatile CNC router in the world.

With the STEPCRAFT M-Series you can easily process floors, large sheet material or even existing furniture. As all the STEPCRAFT D-Series CNC tools are compatible with the STEPCRAFT M-Series as well, you can set your creativity free and use your CNC router for milling, laser engraving, cutting, 3D printing or engraving. Thus, the STEPCRAFT M-Series is perfectly suited for the use in workshops, schools or production halls.

Thanks to the multitude of available tools, you can processs a variety of different materials on your STEPCRAFT M-Series:

• Wood: Softwood, Hardwood, plywood, laminated wood
• Plastics: Thermoplastics, ABS, PE, PP, soft / hard PVC, Lexan®, polyamid, Plexiglas®
• Carbon
• Non-ferrous metals
• Elastomers, thermosets
• Mixed materials

All included! Together with the manual and the enclosed Wera tool set incl. a torque screwdriver, the assembly of your CNC router will only take you a couple of hours. Numerous illustrations and video support will help you assembling your CNC construction kit in only a few hours. The CNC kit will not only save you money but teach you every single screw of your STEPCRAFT M-Series as well. This allows you to later perform maintenance works and adjustments on your own.

FEATURES:

• Supplied with all components necessary for operation
• Integrated modular control electronics for an easy connection to the computer via USB interface resp. via optional parallel or optional Ethernet RJ45 interface
• MDF machine table with aluminum T-slots resp. optional aluminum T-slot table
• Two different machine table heights
• Bosch Rexroth ball bearing guide
• igus® dryspin threaded lead screws with double lead screw nuts adjustable to each other resp. optional HIWIN® ball screws
• Flexi GuidesTM to securely guide cables and tubes
• Powerful motors Nema 23
• In-house development of STEPCRAFT aluminum profiles with innovative high rigidity X-profile (registered utility model)
• Standard Ø 43 mm tool holder enables the use of third-party devices (if necessary with adapter)
• Completely removable machine table
• Freestyle MillingTM with optional vacuum panels (registered utility model)
• Made in Germany
• 3 years manufacturer's warranty
• Overall Size (X,Y,Z): 583 x 726 x 646 mm
• Working Space (X,Y,Z): 348 x 543 x 194 mm
• Clamping Surface (X,Y): 513 x 650 mm
• Backlash: < 0.05 mm

SCOPE OF DELIVERY:

• Complete CNC DIY kit including all mechanical and electronic components
• Operating and assembly instructions
• USB / Parallel (LPT1) / Network RJ-45
• Milling Motor AMB-1400
• ER16 collet 3.175 mm
• End Mill Set "Starter" consisting of:
  • 1x End Mill Double Flute Upcut 3 mm
  • 1x End Mill Double Flute Upcut 2 mm
  • 1x End Mill Double Flute Upcut 1 mm
  • 1x End Mill Double Flute Downcut 2 mm
  • 1x End Mill Spiral Toothed Upcut 2 mm
  • 1x End Mill Spiral Toothed Downcut 1 mm
  • 1x End Mill Diamond Toothed 2 mm
  • 1x Engraving Bit (V-Router) 60°
  • 1x End Mill Single-Flute 2 mm
  • 1x End Mill Radius 2 mm
• Control Software: UCCNC

REQUIRED TOOLS

• Complete CNC DIY kit including all mechanical and electronic components
• USB- or parallel cable connection
• 3x Flexi GuidesTM
• WERA tool set
• Operating manual
• Detailed assembly manual

SYSTEM REQUIREMENTS

• PC with 1 GHz processor
• USB interface
• Windows® XP or higher (32/64 bit)
• MAC OS X 10.3.9 or higher with Windows® Emulation
