SD Card Shield V3.0
Write your review
12,08 €
Tasse incluse

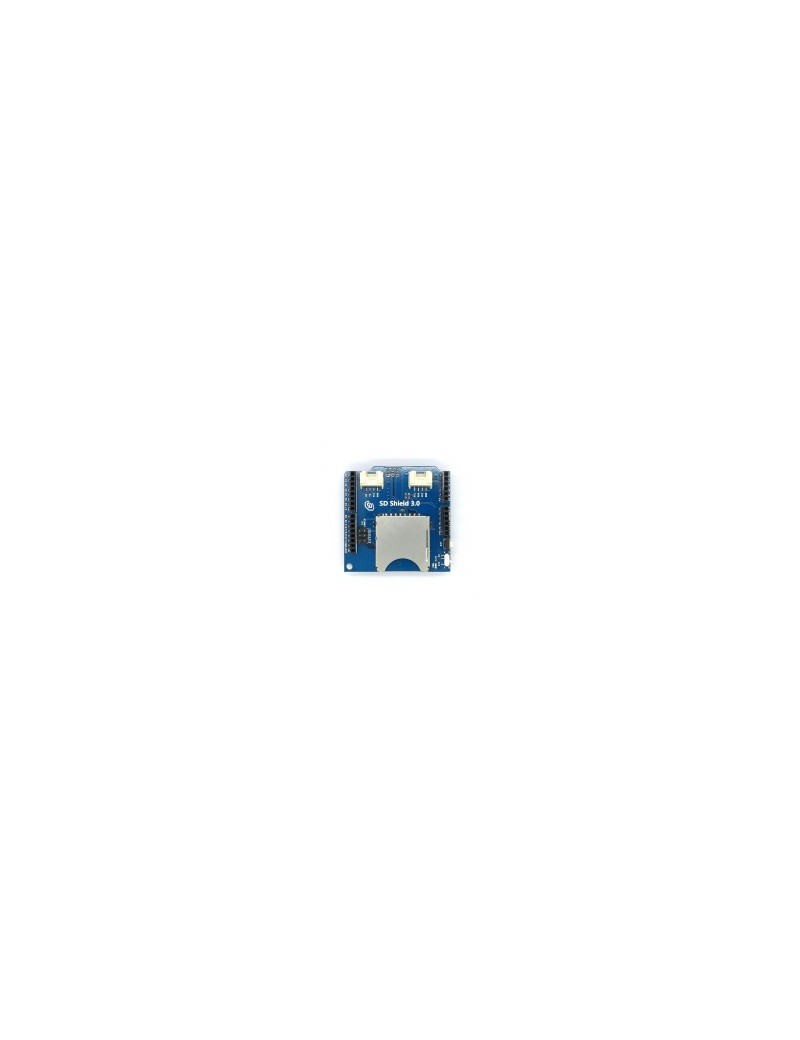

Stackable SD Card Shield V3.0 Compatible With 5V And 3.3V For Arduino Mainboard
SD Shield 3.0 is a break out board for standard SD and TF card. It is compatible with 5V and 3.3V Arduino mainboards, Arduino-compatible boards and Arduino mainboards that SPI is on ICSP instead on pin D11~13 such as Leonardo.
Features
- Arduino compatible
- Supports both SD card and TF card
- Compatible with 5V and 3.3V Arduino mainboards
- Stackable
Specification
| PCB size | 56.15mm X56.23mm X 1.6mm |
| Operating voltage | 3.3V/5V DC |
| Indicator | PWR |
| Communication interface | UART，IIC，SPI |
| Electronic brick interface | Grove 4pin |
Electrical Characteristics
| Parameter | Min. | Typical | Max. | Unit |
| Supply voltage | 3 | - | 5.5 | VDC |
| Operating level | - | 3.3/5 | - | V |
| Consumption current | - | - | 100 | mA |
Documents
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.
Technical support
For technical support, please open a ticket on Itead Support System.
ADDITIONAL INFORMATION
| Discontinued | Yes |
|---|---|
| Link Wiki | No |
| Version | 3.0 |
| Compatible Mainboard |
|
| Board Size | 56.15mm X56.23mm X 1.6mm |
| Operation Level |
|
| Stackable | No |
| Weight | 35 g |
IT-IM140726001
Stackable SD Card Shield V3.0 Compatible With 5V And 3.3V For Arduino Mainboard
