LCD12864 Shield for Arduino

28,06 €
Tasse incluse

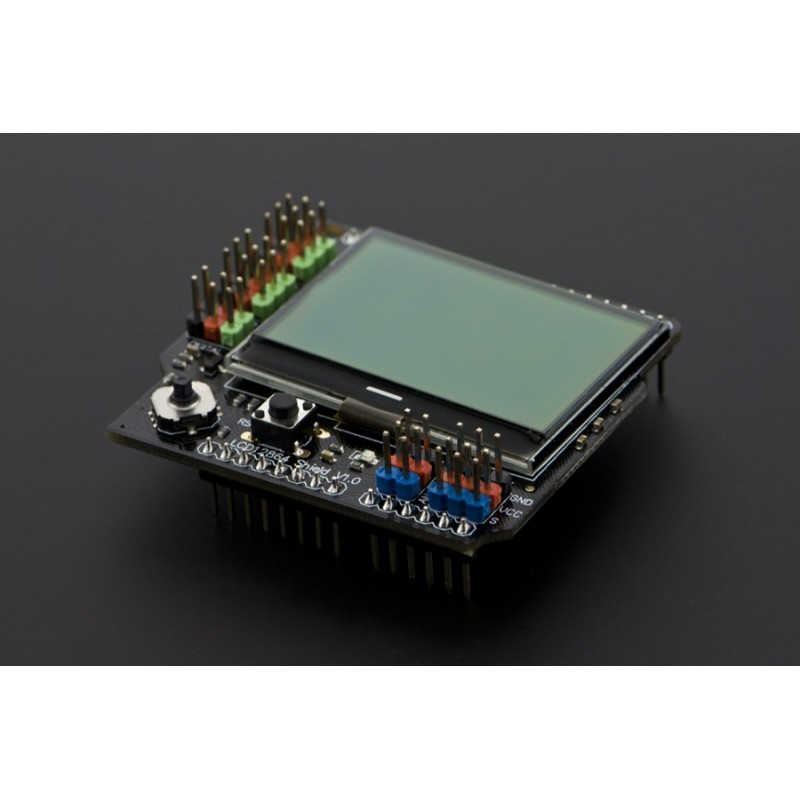

LCD12864 Shield for Arduino

Quantità

This framed LCD12864 Shield with LED backlight is compatible with most of Arduino controllers and supports English/Chinese/Picture display. With 5 analog extension pins and 8 digital pins, the LCD12864 Shield also integrates a 5-key joystick for controlling additional functions, making it an ideal module for prototyping and interactive projects.

SPECIFICATION

  • Power supply: 3.3V
  • Pin used: D7, D8, D9, D10, D11, D13, A0
  • Reset button
  • 5 degree joystick (using Arduino Analog Pin 0)
  • Backlit control (using Arduino Digital Pin 7)
  • Extra 5 Analog pins & 8 Digital pins
  • Size:60x55x20mm(2.36x2.16x0.79")

DOCUMENTS

Tools

Bitmap Converter

DF-DFR0287
