0.95inch RGB OLED (A)
Write your review
15,25 €
Tasse incluse

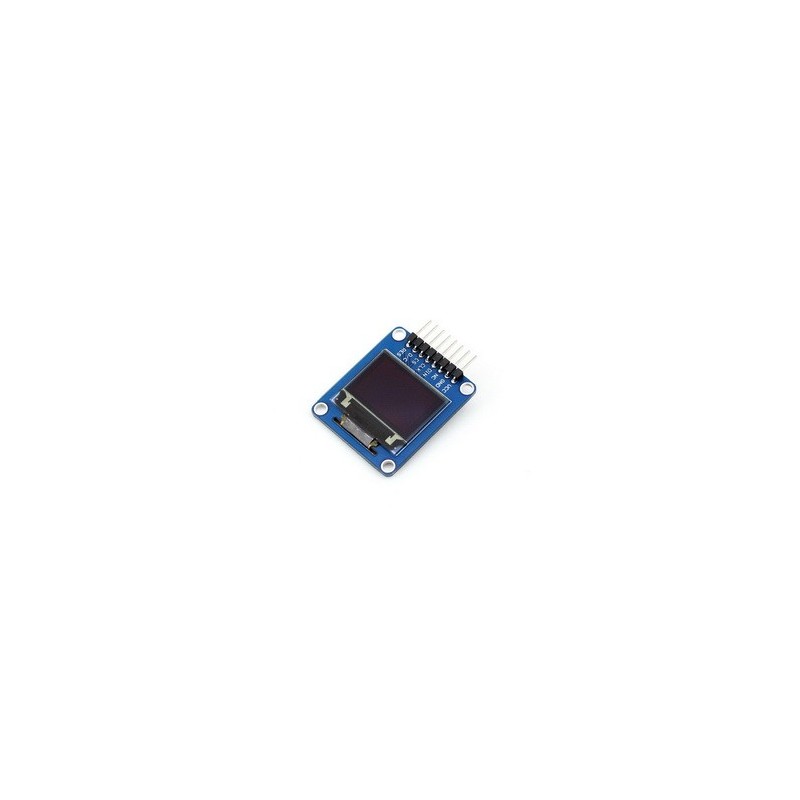

0.95inch RGB OLED (A)
0.95inch RGB OLED, SPI interface, curved/horizontal pinheader
Key Parameters
| Driver Chip | SSD1331 |
|---|---|
| Interface | SPI |
| Resolution | 96×64 |
| Display Size | 0.95inch |
| Colors | 65K colorful |
| Visible Angle | >160° |
| Operating Temp. (?) | -20~70 |
| Storage Temp. (?) | -30~80 |
| Operating Voltage | 3.3V / 5V |
Interface
| PIN NO. | SYMBOL | DESCRIPTION |
|---|---|---|
| 1 | VCC | Power positive (3.3~5V power input) |
| 2 | GND | Ground |
| 3 | NC | NC |
| 4 | DIN | Data input |
| 5 | CLK | Clock signal input |
| 6 | CS | Chip selection, low active |
| 7 | D/C | Command signal, low level for command, high level for data |
| 8 | RES | Reset signal, low active |
Ordering Info
The 0.95inch RGB OLED provides 2 options for the onboard pinheader:
- 0.95inch RGB OLED (A): curved/horizontal pinheader
- 0.95inch RGB OLED (B): straight/vertical pinheader
Downloads
Development resources: demo codes, schematic, datasheets, etc.
Click here to download
Photos
Dimension
Package Contains
- 0.95inch RGB OLED (A) x 1
Selection Guide
| Part Number | Color | Resolution | Display Size (mm×mm) | Interfaces | Driver | Dimension (mm×mm) | Pinheader |
|---|---|---|---|---|---|---|---|
| 0.95inch RGB OLED (A) | 65K colorful | 96×64 | 20.14×13.42 | SPI(4-wire SPI) | SSD1331 | 31.7×37.0 | curved/horizontal |
| 0.95inch RGB OLED (B) | 65K colorful | 96×64 | 20.14×13.42 | SPI(4-wire SPI) | SSD1331 | 31.7×37.0 | straight/vertical |
| 0.96inch OLED (A) | 1/4 yellow section, 3/4 blue section | 128×64 | 21.7×11.2 | 3-wire SPI, 4-wire SPI, I2C | SSD1306 | 33.0×33.5 | curved/horizontal |
| 0.96inch OLED (B) | 1/4 yellow section, 3/4 blue section | 128×64 | 21.7×11.2 | 3-wire SPI, 4-wire SPI, I2C | SSD1306 | 33.0×33.5 | straight/vertical |
| 1.3inch OLED (A) | Blue | 128×64 | 29.42×14.7 | 3-wire SPI, 4-wire SPI, I2C | SH1106 | 40.5×37.5 | curved/horizontal |
| 1.3inch OLED (B) | Blue | 128×64 | 29.42×14.7 | 3-wire SPI, 4-wire SPI, I2C | SH1106 | 40.5×37.5 | straight/vertical |
VM-095RGBA
0.95inch RGB OLED (A)
