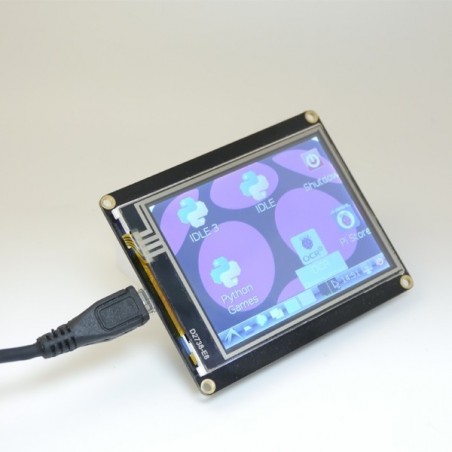

2.8” USB TFT Display Module For Raspberry Pi

45,14 €
Tasse incluse
Quantità

INTRODUCTION

In recent years, computing terminals have expanded exponentially from desktop to portable handheld devices. We have witnessed the rapid development of these devices. Complex operating systems being ported to tiny embedded hardware like Raspberry Pi, Cubieboard, routers with openWRT, etc. Those devices that has managed to become compact and easy to carry have being wide spread products and majority of them are on the Ghz level of processing power.


Like PCs but with a compact system and considerable computing resources, it has become the solution for various enthusiasts. Many open source hardware vendors have being dreaming for this solution for quite some time. However, some interactions for these embedded solutions still need bulky HDMI monitors or TVs for use or even debugging.

In order to allow these devices have some portability and economize power at the same time, this portable USB monitor with touch screen (RPUSBDisp) is created. It is designed specifically for embedded designs with business card size and it just requires a USB cable to make it work without additional power supply.




Supported Hardware Platforms
Supports any computing devices with USB Host communication functionality to act as a standard display or touch screen devices. You just need to add the corresponding driver. For the majority of embedded devices supporting Linux OS, we offer open source kernel driver and several OS images that you can try. Download the sources and adapt it to your project, or directly download the image and try it on any of the supported platforms:
  • Raspberry PI

  • Cubieboard (I Generation and II Generation)

  • pcDuino

  • MiniPC TV Sticks based on Allwinner A10/ Rockchip RK3066 Solutions (MK802, UG802, etc.)

  • WR703 Mini Router

Project 1. ESP8266 Project: Desktop Weather Station With WIFI

Hardware needs:

FEATURES

  • Extensive Device Support
You can use it as a display for most embedded development board on the current market (such as RaspberryPi, Cubieboard, etc.). Benefit from USB interface that provides opportunity for those devices that cannot connect with monitor for display in the past like routers. In addition, we support Arduino Yun and Intel Galileo Developer Edition!
  • Standard Device Interface
With the drivers developed by RoboPeak, RPUSBDisp can be identified as a standard display and touch-screen device by the operating system, that means any existing graphical interface program can be displayed without any modification.
  • Open Source Brings More Possibilities
As an open source project, we provide it's schematics, communication protocols, Linux kernel driver code and so on. That helps you develop and create new designs easily.




Version 2 Update
  • LCD color improved
  • Firmware upgrade (compatible with V1, improving touch sensitivity and frame rate)

SPECIFICATION

  • Display Resolution: 320×240
  • Color Depth: 16bpp
  • Screen Size: 2.8 inch
  • Communication: USB2.0 Full-Speed
  • USB Interface Specifications: Micro-USB
  • Touch Screen: Resistive Single Point
  • Size: length 74mm(2.91"), width 60mm(2.36")
  • Weight: 50g

DOCUMENTS



Tutorial

SHIPPING LIST

  • 2.8” USB TFT Touch Display Module For Raspberry Pi V2 x1

TUTORIAL

ESP8266 Project: Desktop Weather Station With WIFI
DF-DFR0275
