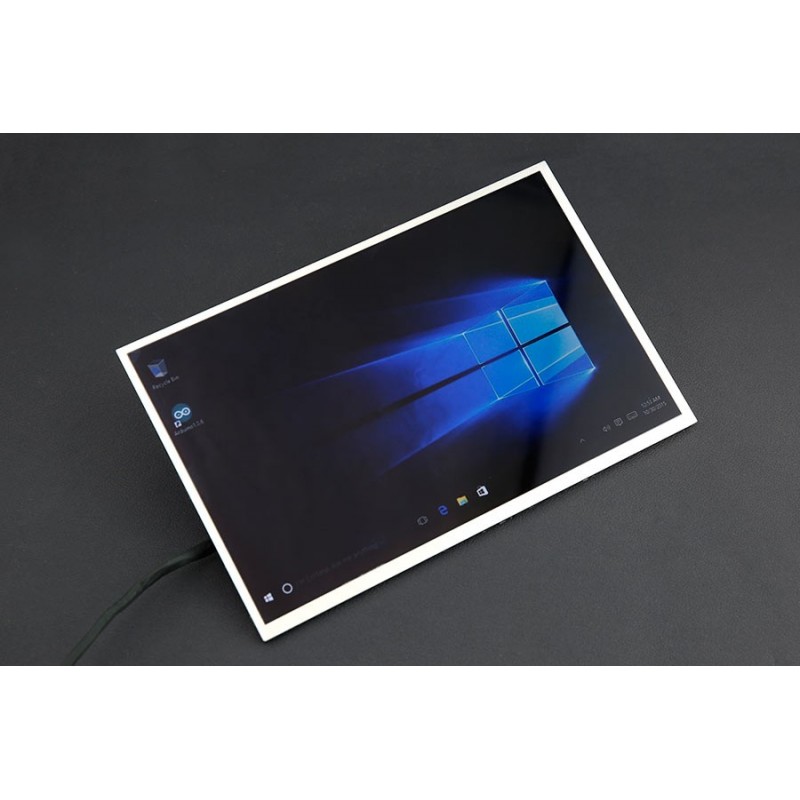

This 10.1 inch high-resolution 1280*800 IPS display is especially designed as a monitor for Lattepanda(which could be used as windows 10 development board), Raspberry Pi and other mini PC. The HDMI/VGA/AV interfaces ensure its wide compatibility. Making a digital photo frame, playing a video, adding a face for your robot, you can expand your imagination, make more fun.


SPECIFICATION

• Screen size: 10.1 inch
• Screen Dimensions: 217 * 135mm/ 8.54 * 5.31 inches (16:10)
• Display Dimensions: 230 * 149 * 5.0mm/9.05 * 5.86 * 0.2 inches
• Panel Type: a-Si TFT-LCD Panel
• Resolution (RGB): 1280x800, WXGA
• Display Mode: HFFS, Normally Black, Transmissive
• Surface: Hard coating
• Brightness: 350 cd/m^2
• Contrast Ratio: 800:1 (Min.)
• Input Voltage: 7.5~12V
• Rated power: 6-7.5W
• Signal input: AV + VGA + HDMI (HDMI 1.2)
• Support Audio Output
• Weight: 358g

DOCUMENTS

• Installation Instruction
• Installation Instruction V1.1

SHIPPING LIST

• HDMI+VGA+2AV LCD controller board        x1
• 10.1 inch 1280x800  IPS LCD panel            x1
• Spaker (Pair)                x1
• LVDS Cable                  x1
• Keyboard with Wire         x1
