128x64, 1.3inch OLED display HAT for Raspberry Pi
Write your review
16,46 €
Tasse incluse
1.3inch OLED display HAT for Raspberry Pi, 128x64 pixels, SPI/I2C interface
1.3inch OLED display HAT for Raspberry Pi, 128x64 pixels, SPI/I2C interface
Overview

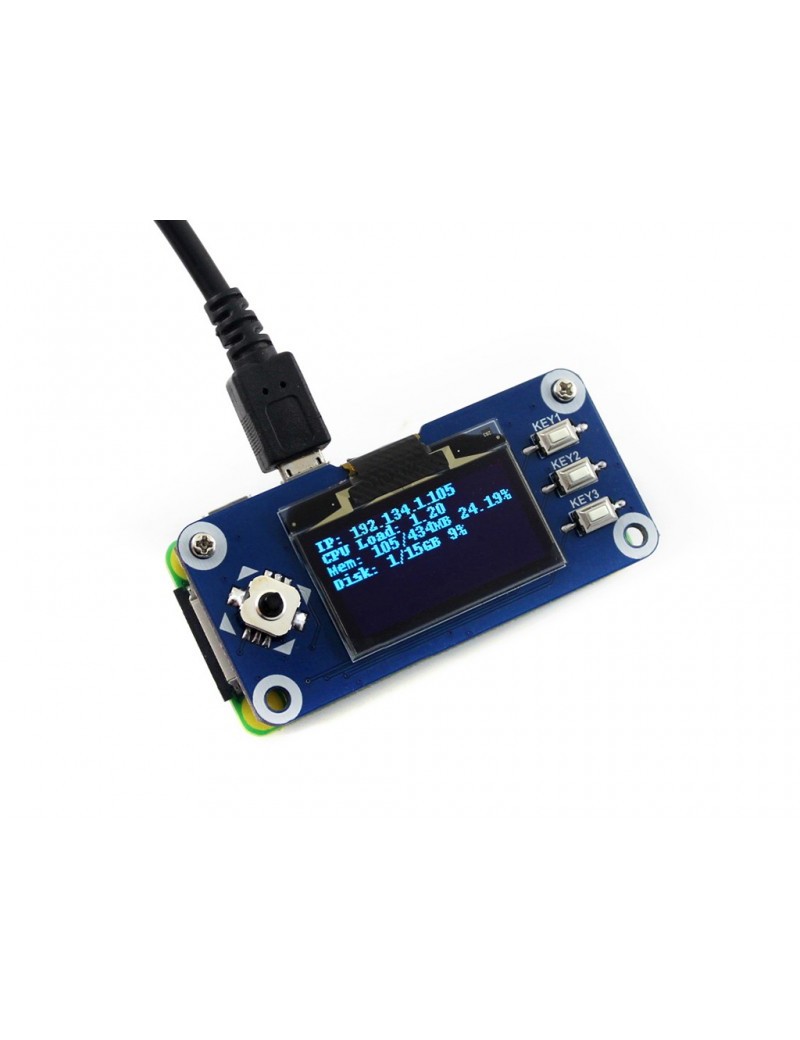

This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface.
Trying to add a control interface for your Pi? This compact display would be the ideal choice.
Features
- Standard Raspberry Pi connectivity, compatible with and direct-pluggable onto Raspberry Pi 2B/3B/3B+/Zero/Zero W
- Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor
- 1x joystick (5-position), 3x pushbuttons, handy and useful
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
- Driver: SH1106
- Interface: 4-wire SPI, 3-wire SPI, I2C
- Display color: blue
- Resolution: 128x64
- Operating voltage: 3.3V
Interface
| SYMBOL | Raspberry Pi PIN (BCM) | DESCRIPTION |
|---|---|---|
| KEY1 | P21 | Button 1/GPIO |
| KEY2 | P20 | Button 2/GPIO |
| KEY3 | P16 | Button 3/GPIO |
| Joystick Up | P6 | Joystick Up |
| Joystick Down | P19 | Joystick Down |
| Joystick Left | P5 | Joystick Left |
| Joystick Right | P26 | Joystick Right |
| Joystick Press | P13 | Joystick Press |
| SCLK | P11/SCLK | SPI clock input |
| MOSI | P10/MOSI | SPI data input |
| DC | P24 | Data/Command selection (high for data, low for command) |
| CS | P8/CE0 | Chip selection, low active |
| RST | P25 | Reset, low active |
Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/1.3inch_OLED_HAT
-
Weight: 0.012 kg
- 1.3inch OLED HAT x1
- RPi screws pack (2pcs) x1
